SECTION 6: Set up the ventilation
Models with side vent and tray
Vent tray
The supplied vent tray must be fitted. It provides a safe exhaust for
refrigerant gas in the unlikely event of a leak.
Vent tray dimensions WxDxH (mm): 500 x (515-555) x 40
• Refer to the instructions provided with the Vent Tray.

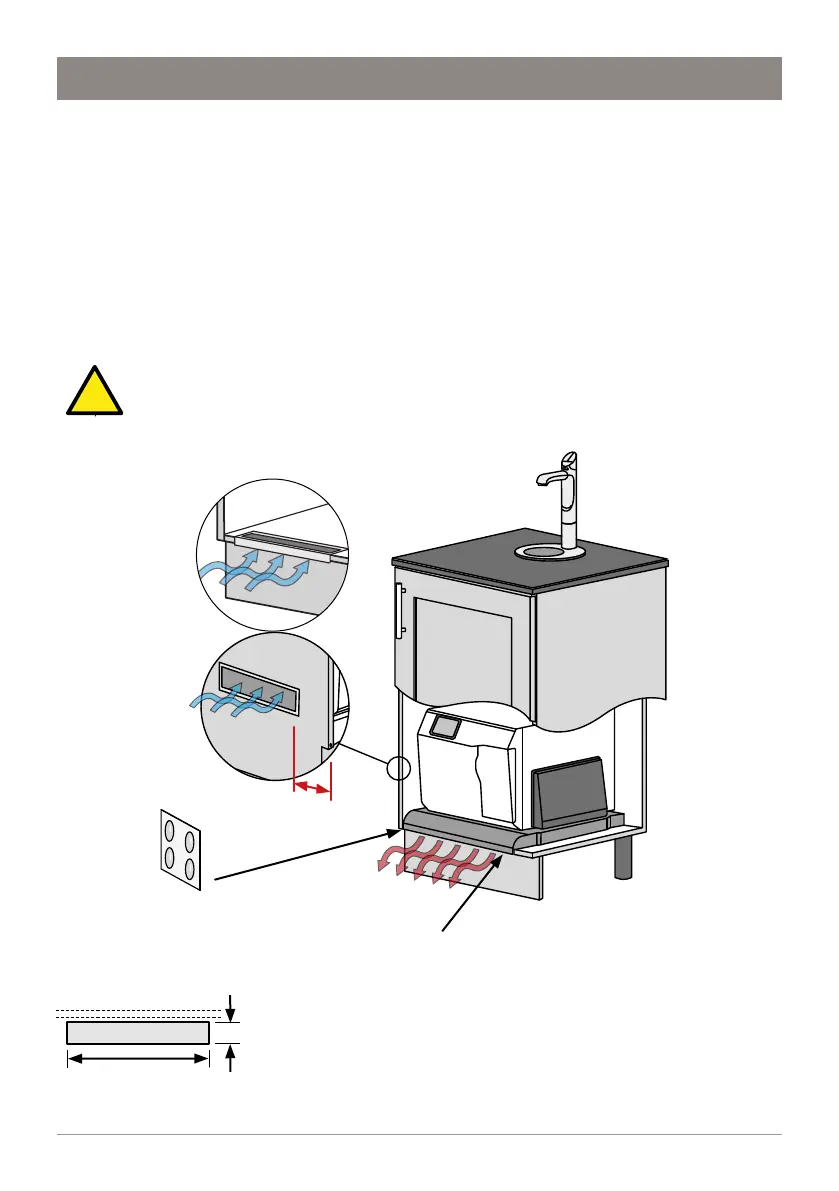

• Cold air is drawn in through the inlet vent and gap provided by the door
buffers.
• Inlet vent is mounted over cupboard side, door or floor cut-out.
• Warm air is exhausted through vent tray.
• Observe 100mm inlet / outlet vent separation.
Air outlet
100mm
4mm door buffers
(supplied)
Air inlet options
Vent tray exhaust cut-out
450
40
Absolute min. vent tray depth 490mm (limit of travel, may affect airflow).
