Zivid Two User Manual

4.5 Positioning Correctly

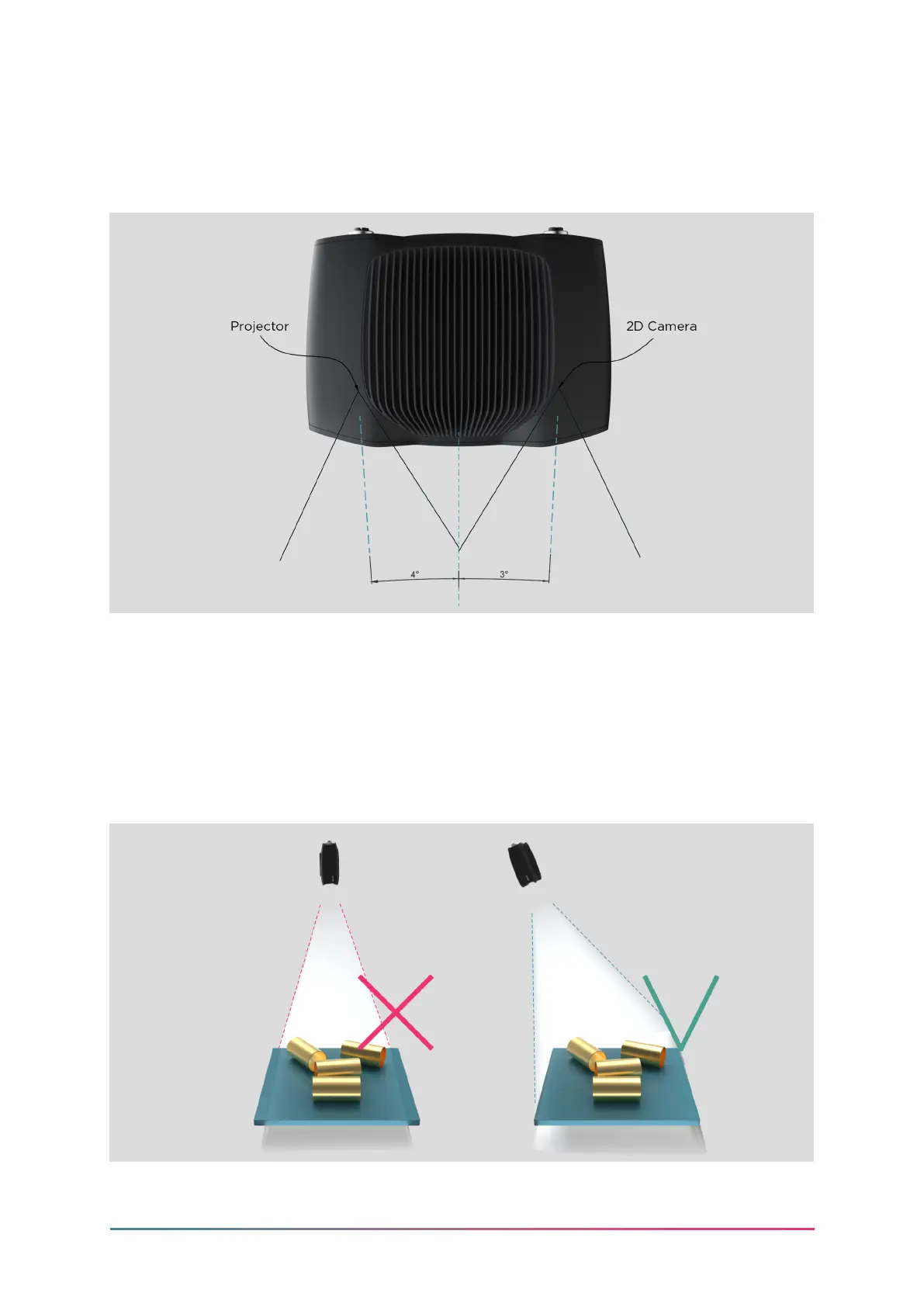

The 2D camera and the projector have an angle of 3 and 4 degrees with respect to the
center axis. This should be considered if it is desired to have the camera perpendicular
to the scene.
If possible, mount the camera at a slight tilt angle to avoid reections and interference
from the background. This also frees up space above the scene for easier access for
tools and robots.
Rev 1.0 - 9/2021 11 Zivid.com
