CMP-300 User Manual
Page | 17 Copyright©2021 ZKTECO CO., LTD. All rights reserved.

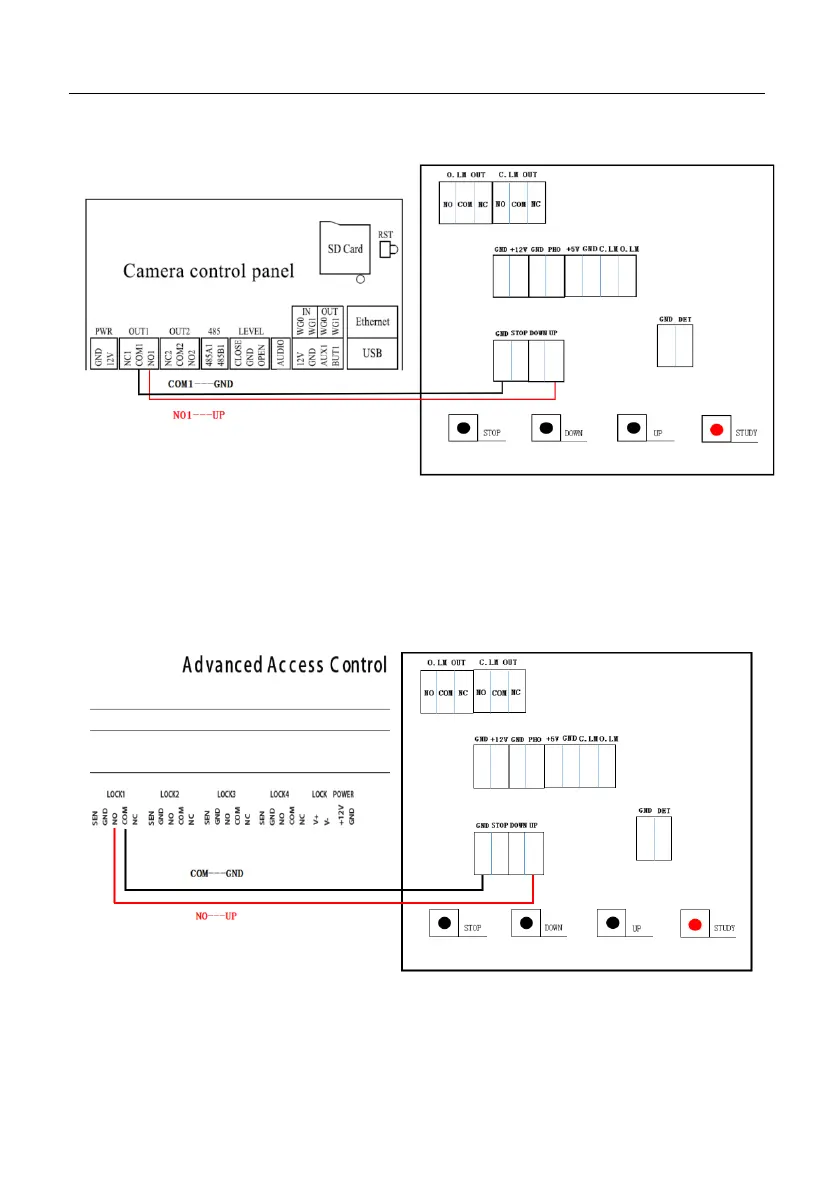

• Connect to the LPR camera:
• Connection with the UHF controller.
Note: The Reader1 and 2 of the inbio260 controller are corresponding to
LOCK1, Reader3, and 4 are corresponding to LOCK2.
