ZKTeco EFace10 Quick Start Guide

L
❶
❷
L

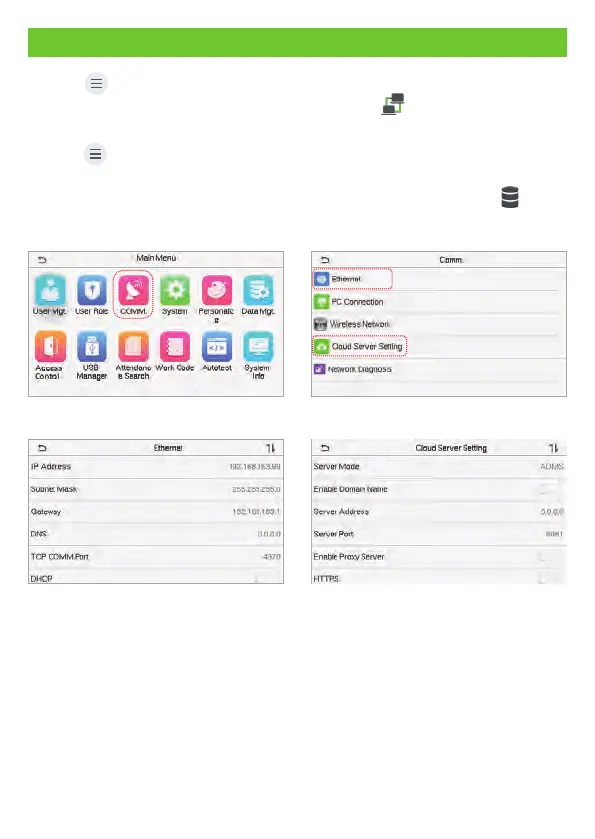

Ethernet and Cloud Server Settings
Click on > [COMM.] > [Ethernet] to set the network parameters. If the TCP/IP
communication of the device is successful, the icon will be displayed in the
upper right corner of the standby interface.
Click on > [COMM.] > [Cloud Server Setting] to set the server address and server
port, that is, the IP address and port number of the server after the software is
installed. If the device communicates with the server successfully, the icon will be
displayed in the upper right corner of the standby interface.
Note:
While pairing the device with ZKBioAccess IVS software. Make sure that the option
Enable Domain Name is disabled and the correct server address and port are entered.
Server Address: Set as the IP address of the ZKBioAccess IVS server.
Server Port: Set as the service port of ZKBioAccess IVS.
8

ZKTeco EFace10 Specifications

General

Brand	ZKTeco
Model	EFace10
Category	IP Access Controllers
Language	English
