ZKTeco SpeedFace Series Quick Start Guide

1

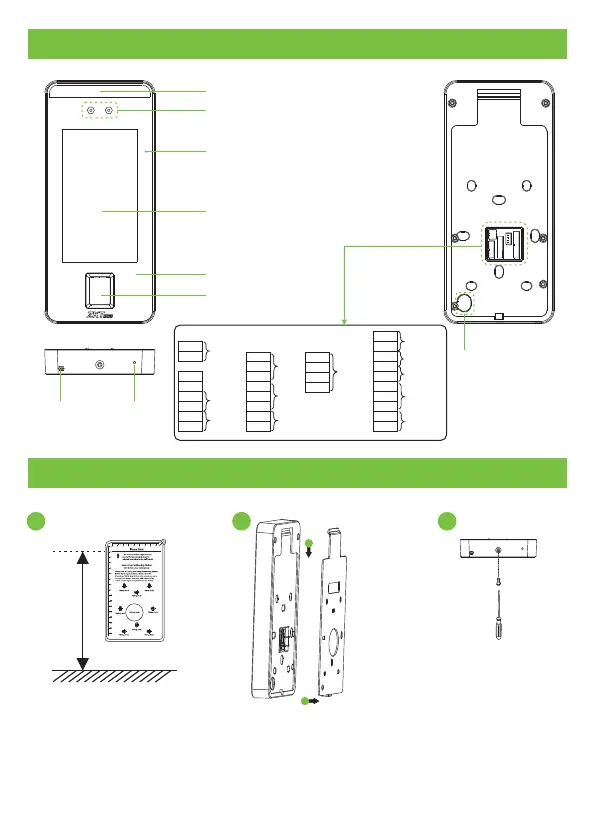

Device Installation
Overview
1.5m
1 2 3
①
②
Flash
Camera
5 inch touch screen
RS232
RS485
485B
485A
GND
TXD1
RXD1
GND
TXD2
RXD2
RS232
Power
Wiegand
In
Wiegand
Out
GND
12V
+12V
GND
INWD0
INWD1
W0D
W1D
ResetSpeaker
Microphone
Fingerprint sensor
Ethernet
TX+
RX+
TX-
RX-
① Attach the mounting template sticker to the wall, and drill holes according
to the mounting paper. Fix the back plate on the wall using wall mounting
screws.
② Attach the device to the back plate.
③ Fasten the device to the back plate with a security screw.
Lock
AUX
Alarm
Exit Button
Sensor
AL+
AL-
N1C
COM
N1O
BUT
GND
SEN
GND
Auxiliary
input
Card reading area
Magnetic tamper
switch

ZKTeco SpeedFace Series Specifications

General

Operating Temperature	0°C to 45°C
Operating Humidity	20% to 80%
Communication	TCP/IP, USB Host
Power Supply	12V DC
Face Capacity	Up to 6, 000 faces (depending on the specific model in the series)
Display	Touch screen (size varies depending on the specific model)
Dimensions	Varies depending on the specific model
Weight	Varies depending on the specific model
