ZKTeco SpeedFace Series Quick Start Guide

3

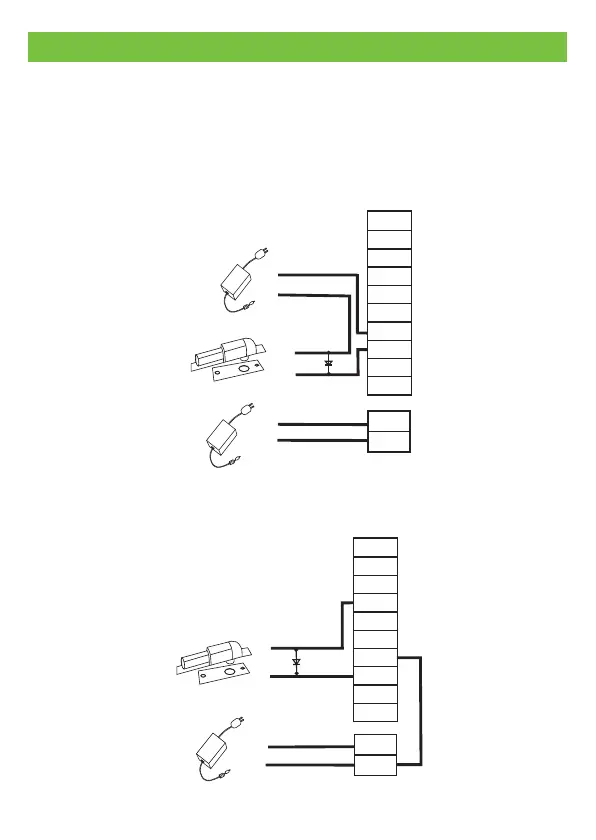

Lock Relay Connection
The system supports Normally Opened Lock and Normally Closed Lock.
-
-
+
-
+
DC12V
+
-
+
GND
+12V
F 107R
AUX
AL+
AL-
N1C
COM
N1O
BUT
GND
SEN
GND
The NO LOCK (normally opened at power on) is connected with 'NO1' and
'COM' terminals, and the NC LOCK (normally closed at power on) is connected
with 'NC1' and 'COM' terminals. T NC Lock below:ake as an example
Normally Closed Lock
DC12V
1) Device not sharing power with the lock
+
-
-
+
DC12V
+
-
GND
+12V
F 107R
AUX
AL+
AL-
N1C
COM
N1O
BUT
GND
SEN
GND
Normally Closed Lock
2) Device sharing power with the lock

ZKTeco SpeedFace Series Specifications

General

Operating Temperature	0°C to 45°C
Operating Humidity	20% to 80%
Communication	TCP/IP, USB Host
Power Supply	12V DC
Face Capacity	Up to 6, 000 faces (depending on the specific model in the series)
Display	Touch screen (size varies depending on the specific model)
Dimensions	Varies depending on the specific model
Weight	Varies depending on the specific model
