2. ELECTRICAL, ENVIRONMENTAL INDEX
2.1. ELECTRICIAL INDEX
Driver Parameter
Min value
Typical value
Max value
Unit
Input voltage
20 VDC
36VDC
48VDC
V
Output current(peak)
0
15
30
A
Control signal input
current
7
10
16
mA
Over-voltage
protection
-
75
-
VDC
Under-voltage
protection
-
16
-
VDC
Input signal voltage
-
5
-
VDC
Insulation resistance
100
MΩ
2.2. ENVIROMENTAL INDEX
Cooling Type
Natural cooling or forced cooling
Working
environment
Application occasion
Avoid dust, oil mist and corrosive gases
Working temperature
0~50℃
Max. ambient humidity
90% RH(no condensation)
Storage temperature
-10~70
℃
Vibration
10~55Hz/0.15mm

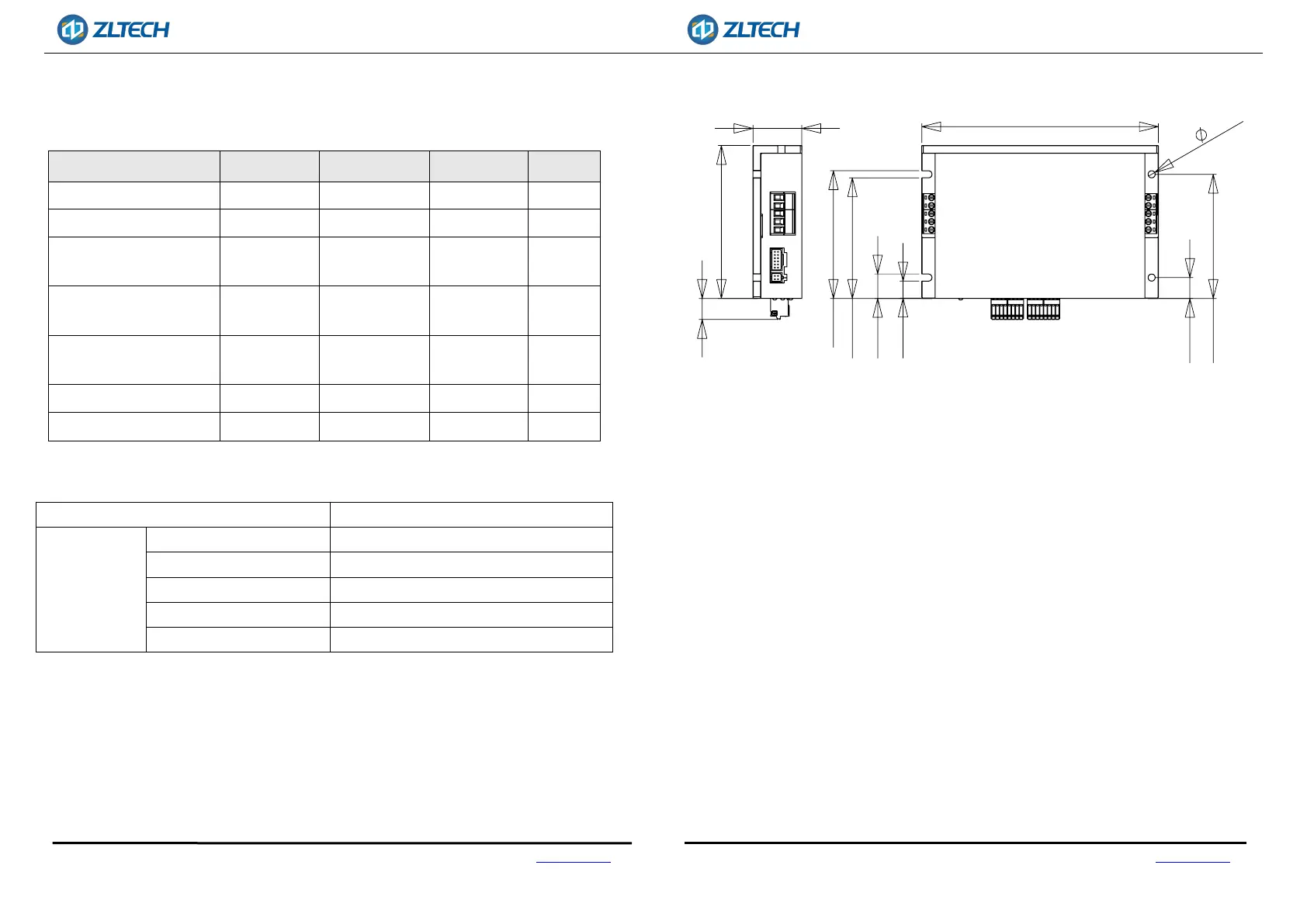

Fig.1 Installation dimension diagram (unit: cm)
2.4. INSTALLATION
User can use the wide or narrow side of the driver cooled radiator for installation. If
installing with wide side, use M3 screws to install through the holes on four corners. If
installing with narrow side, use M3 screws to install through the holes on both sides. In
order to achieve good heat dissipation, it is recommended to use narrow-side
installation.
The power device of the driver will generate heat. If it works continuously under the
condition of high input voltage and high power, the effective heat dissipation area
should be enlarged or forced cooling. Do not use it in a place where there is no air
circulation or where the ambient temperature exceeds 60 ° C. Do not install the driver
in a humid or metal debris place.
2.3. INSTALLATION DIMENSION
150
2-
4.50
10.80 15.50 76.50
81
13.25 78.75
31
97
13.30
