3.2 CONTROL SIGNAL WIRING
ZLAC8015D series driver provides 2 photoelectric isolation programmable input
interfaces, compatible with NPN wiring and PNP wiring.
2-channel (IN1-IN2 of J4) programmable input signal is isolated from the external
control interface by an optocoupler. The driver is compatible with common cathode
and common anode connections, as shown in the following Figure 2. In order to ensure
the reliable conduction of the optocoupler inside the driver, the drive current provided
by the controller must be at least 10mA.
The level pulse width of IN1-IN2 input needs to be bigger than 10ms, otherwise the
driver may not respond normally. The IN1-IN2 timing diagram is shown in Figure 3.

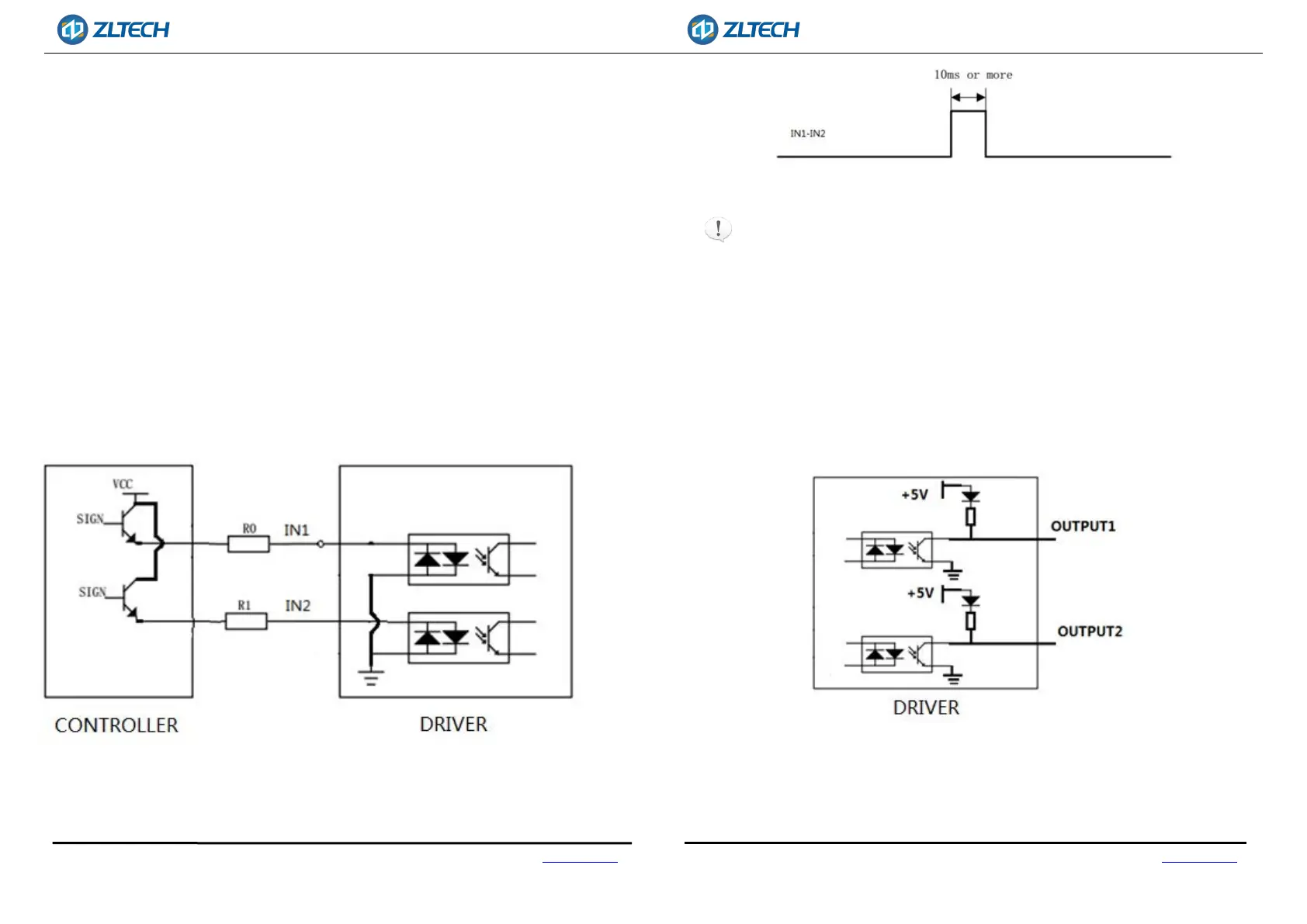

Fig.2 Input interface circuit
Fig.3 Control signal interface wiring diagram
Note: The default input voltage of the control signal is 5V. For other voltages,
current limiting resistors must be added, for example: 12V, external 1K 1 / 2W resistor;
24V, external 2K 1 / 2W resistor.
After the driver is powered on, digital Inputs defaults to the unspecified state. At this
time, the input signal is invalid. User could configure input functions through
communication.
Signal output wiring, such as alarm, in place, etc., customer could internally pull up 5V
resistance to output, or externally pull up 3.3-24V resistance to output.
Fig.4 Output interface circuit
