Lift the toolhead from the
front to back from the
X-carriage.
Gently mount new toolhead
from the back to the front in
the X-carriage.
Tighten the screw to keep
toolhead in the X-carriage.
Disconnect LEFT and RIGHT
cables from the frame sockets.
Choose “Maintenance”. Choose “Change Tool”. Choose "PARK TOOL", wait
for the machine to position
the toolhead. When done,
choose toolhead.
Disconnect A and B plugs. Use 3 mm Allen key to
loose screw mounting the
toolhead.
1
4
7 8 9
2
5
3
6

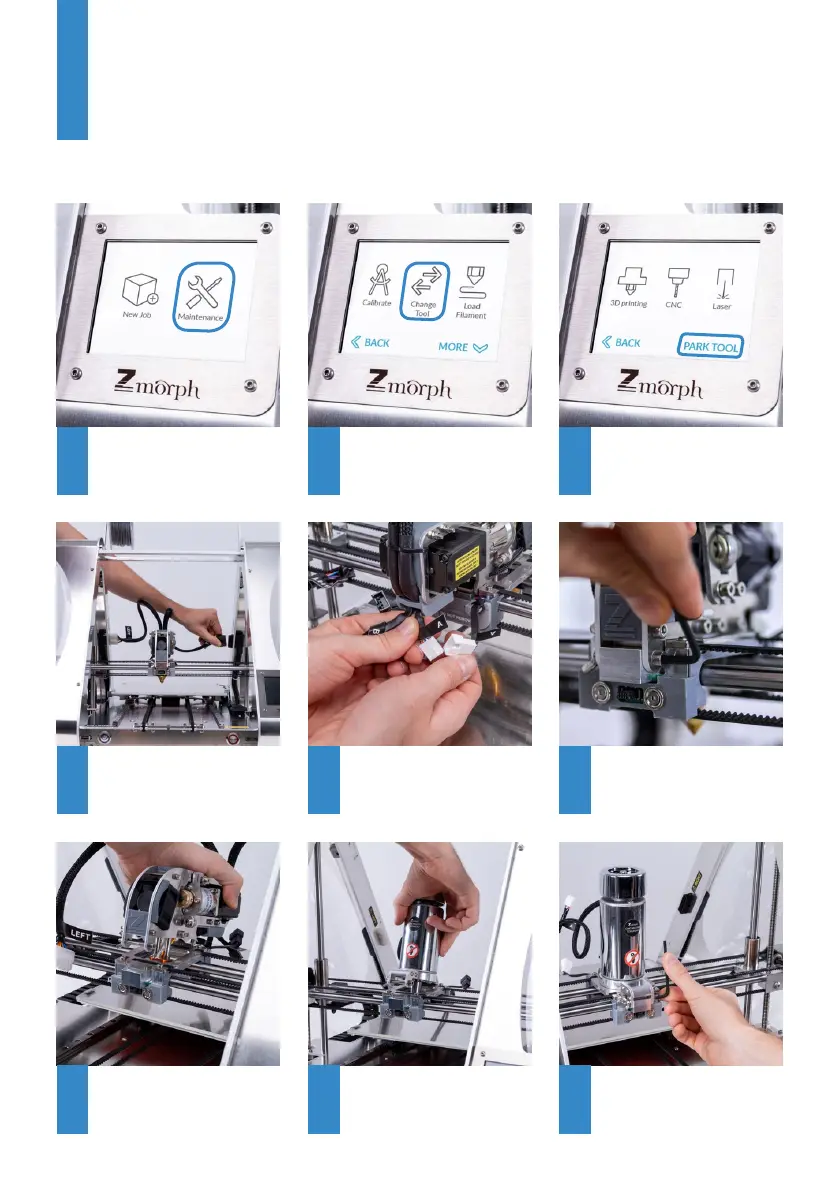

Toolhead change
