14

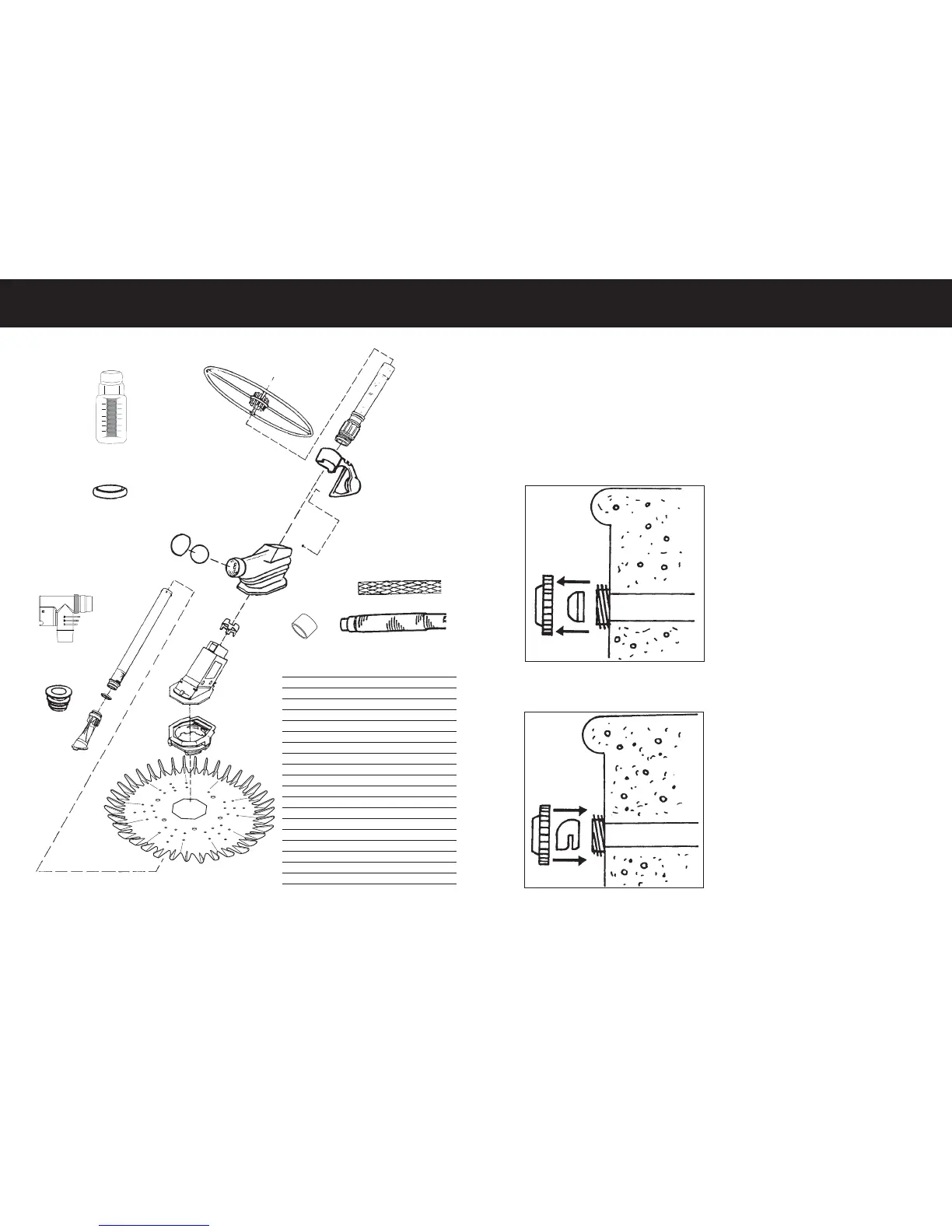

SECTION 8 – PARTS DIAGRAM
SECTION 1 – PREPARING YOUR POOL
FILTRATION SYSTEM
3
NOTE: If no return inlet directional fittings exist or directionals cannot be
directed far enough down to prevent water flow from affecting the natural
movement of the hose, you must install Automatic Pool Cleaner return line
diverters.They are available through your Automatic Pool Cleaner dealer.
NOTE: A return line divider MUST be used in pools with only one return inlet.
For pools with return inlet directional fittings:
Remove the eyeball retaining ring and
remove the directional eyeball.
Replace the directional eyeball with the
Automatic Pool Cleaner
retrofit eyeball
return line diverter (Part No.ARL19), and
reinstall eyeball retaining ring.
Ref.
Description Qty.
1 Diaphragm 1
2 Diaphragm Retaining Ring 1
3 Threaded Inner Extension Pipe 1
4 Finned Disc 1
5 Flexi Foot 1
6 Inner Body 1
– Compression Ring 1
– Outer Body 1
– Float Chamber 1
7 Weighted Spur Bumper 1
8 Outer Extension Pipe 1
9 Wheel Deflector Large 1
10 Hose Weight 1
11 AD Flow Valve 1
12 Universal Valve Cuff 1
13 Hose Protector Mask 1
14 Hose Kit (10 x 1 Metre) 1
15 Pink Leader Hose Adaptor 1
16 Pool Pulse 1
EXPLODED DIAGRAM
13
10
11
14
12
2
3
1
4
5
6
9
8
7
15
O
1
2
3
4
5
6
6
5
4
3
2
10
16
