13
SECTION 2 – ASSEMBLY
SECTION 7 – ACCESSORIES

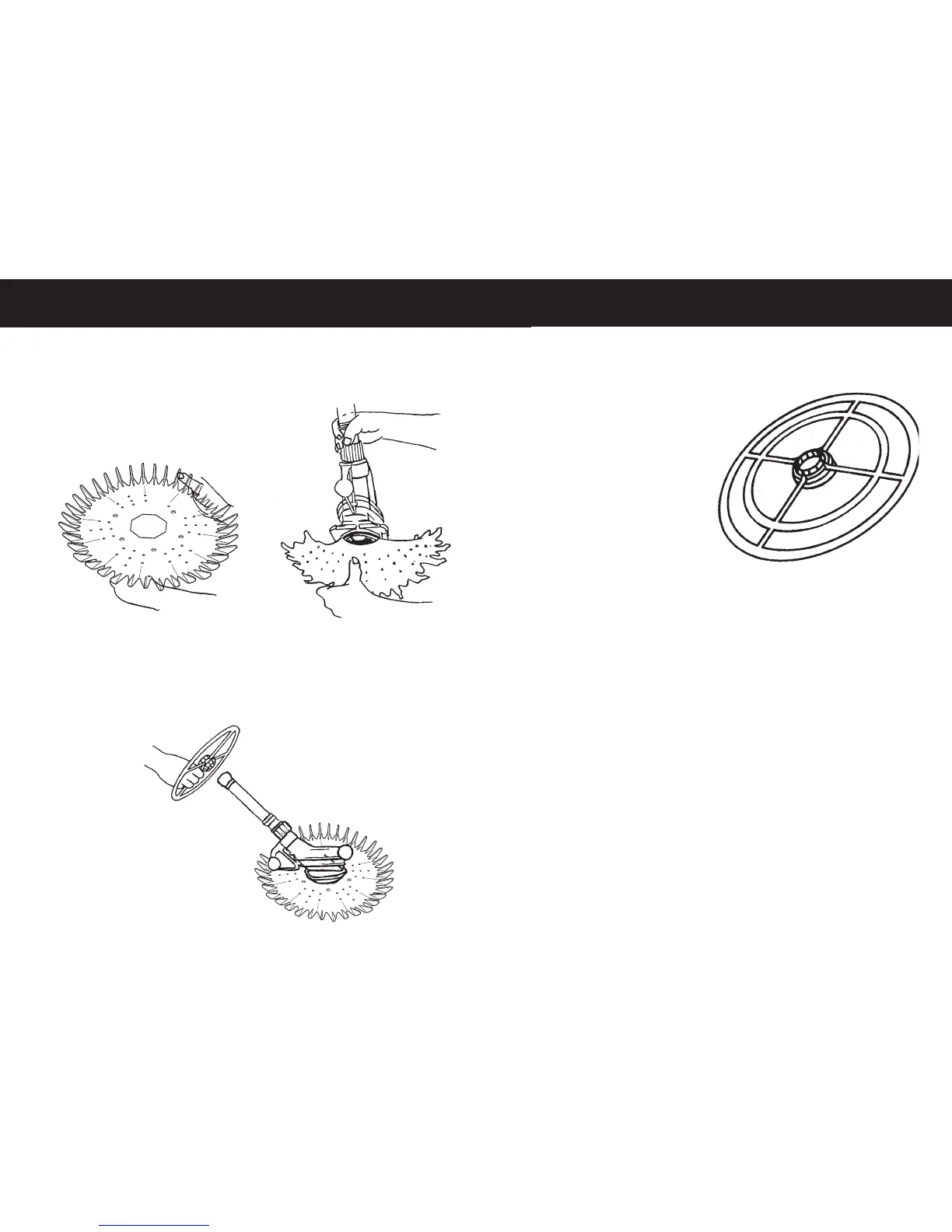

Step 1: Slide the ribbed disc over the footpad. Be sure it fits properly in the grooves provided.
The fins or ribs must be pointing upwards.
Step 2: Slide the Wheel Deflector over the extension pipe and secure between the two lowest
pipe ridges.
Note: The
Automatic Pool Cleaner
comes with the Bumper Fin already fitted to help the
machine avoid obstacles such as ladders and some steps.The additional deflector wheel
can be used for extra clearance at steps or other obstacles. If the wheel is fitted, the
Bumper Fin (as shown on page 14) should be removed first, otherwise the wheel
deflector will not turn freely.
4
LARGE WHEEL DEFLECTOR
Use when extra clearance needed at steps
or other obstacles.
