Zodiac G2 User Manual

2/Assembly
1 5
THIS UNIT COMES FULLY ASSEMBLED :
ALL YOU HAVE TO DO IS FIX IT

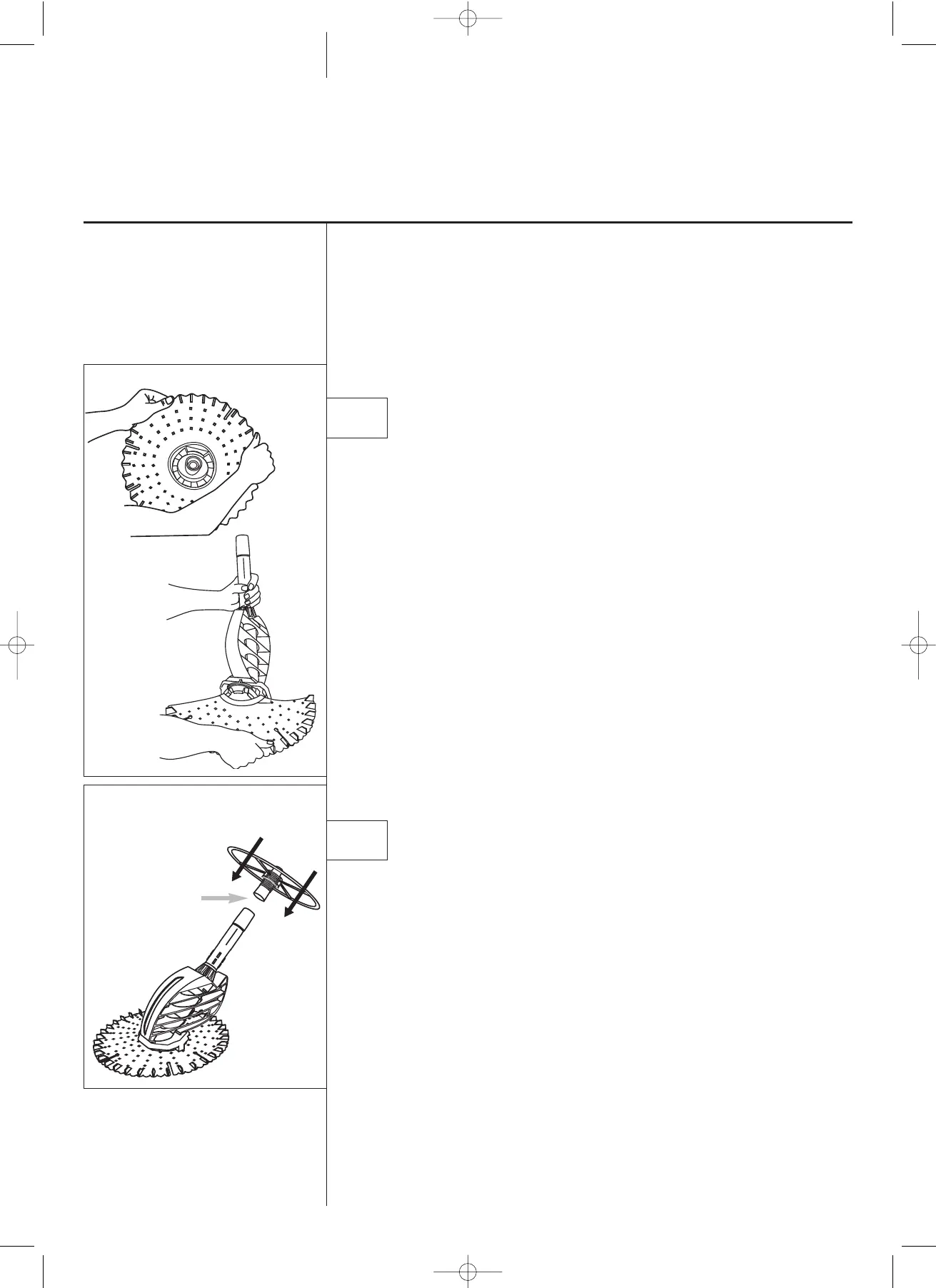

1
The disk, with the face marked “Top” uppermost, on the flexible foot.
The disk must be correctly positioned in the throat of the flexible foot
and should be able to rotate freely
(Schema A)
.
2
The available circular deflector using the hose adapter as shown
in the diagram opposite
(Schema B)
.
Hose adapter
(female end)
Outer extension
hose
Deflector
wheel
Schema A
Schema B
G2 2010.qxd 23/02/10 9:30 Page 14

Zodiac G2 Specifications

General

Pool Type	In-ground
Debris Type	Small to medium
Warranty	1 year
Power Source	Filtration System
Cleaning Coverage	Floor and walls
Pool Size	Up to 40 feet
