Zodiac T5 Duo User Manual

Page 11
ENGLISH
Owner’s Manual
|
Zodiac
®
T5 Duo
®
Suction-Side Pool Cleaner

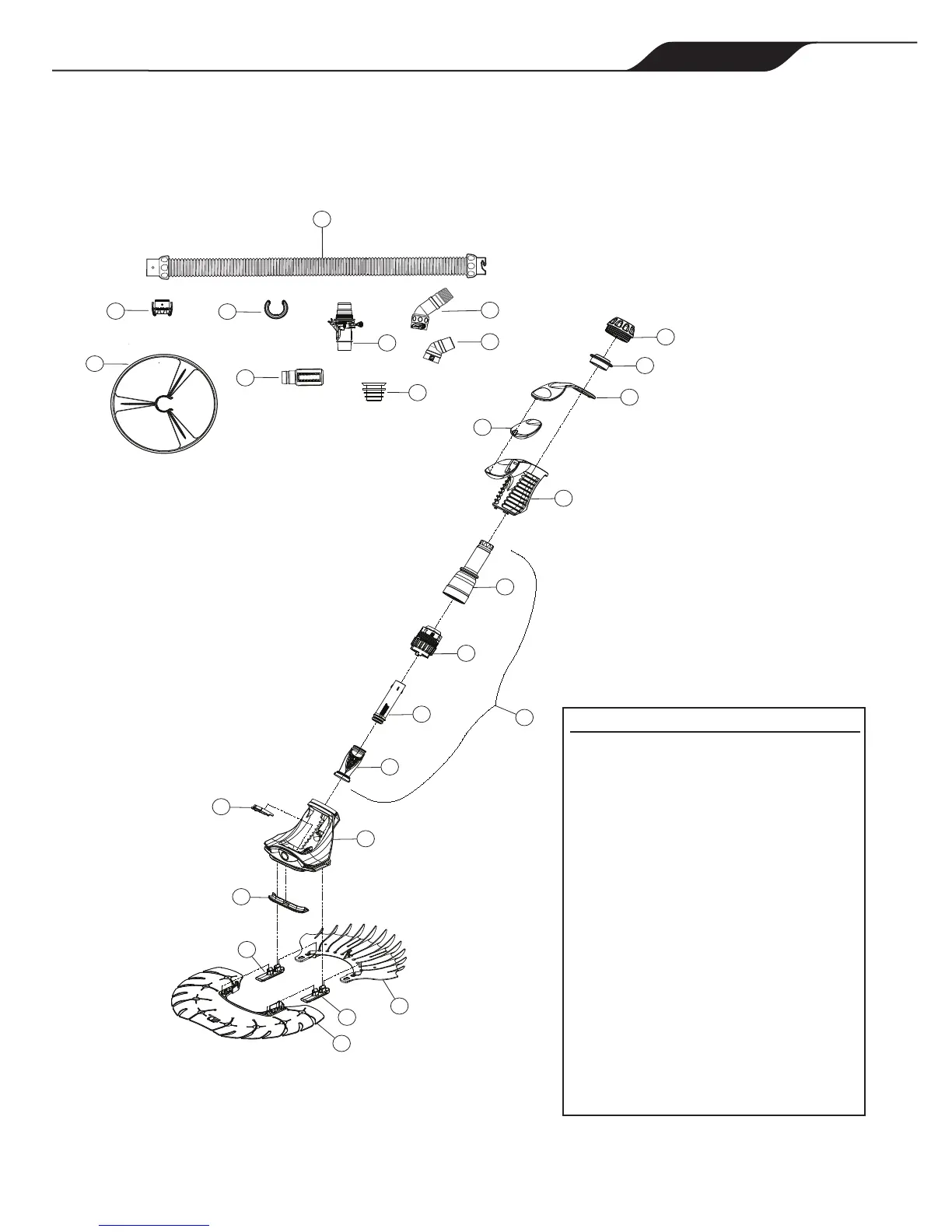

T5 Duo Parts Diagram
18
17
5
3
12
15
23
24
16
20
19
22
21
2
3
4
6
7
8
9
1
10
11
13
15
14
No. Part # Description Qty
1 R0541000 T5 Engine Assembly 1
2 R0563000 T5 Handnut 1
3 R0509200 T5 Thrust Washers 2
4 R0563100 T5 Main Body Cap 1
5 R0509000 T5 Float 1
6 R0563200 T5 Main Body Cover 1
7 R0542100 T5 Outer Extension Tube 1
8 R0542000 T5 Cup Assembly 1
9 R0542200 T5 Inner Extension Tube 1
10 X73010 T5 Diaphragm 1
11 R0563300 T5 Body Assembly with Bumper 1
12 R0563400 T5 Skid Plate 1
13 R0563500 T5 Front Disc 1
14 R0563600 T5 Rear Disc 1
15 R0563700 T5 Foot Pads 2
16 R0527500 Zodiac Flow Gauge 1
17 R0526900 T5 Quick Connector 1
18 R0527800 Twist Lock Hose - 1 Meter, (12 Pack) 1
19 R0527400 Flowkeeper™ Valve 1
20 R0527600 In-ground Valve Cuff 1
21 R0532400 Twist-Lock 45° Elbow, Extended 1
22 R0532500 45° Weir Elbow (EVA) 1
23 R0542600 Universal Hose Weight 1
24 R0541900 T5 Wheel Deflector, Hose Mount 1

Zodiac T5 Duo Specifications

General

Shape	Round
Best uses	Above ground pool, Built-in pool, Inflatable pool
Product color	Blue, Silver, Yellow
Easy to clean	Yes
Package type	Box
Quantity per pack	1 pc(s)

Weight and Dimensions

Width	- mm
