Zodiac T5 Duo User Manual

Page 4
ENGLISH
Zodiac
®
T5 Duo
®
Suction-Side Pool Cleaner
|
Owner’s Manual
Installation
Prepare the Pool
1. Manually vacuum the pool if excessive debris is present,
and make sure the pool filter and pump basket are clean.
2. Close the pool main drain line.
3. Adjust the return lines to blow downward to ensure complete cleaning coverage.
• Loosen the fitting lock ring
• Redirect the eyeball downward
• Retighten the lock ring
If the return fitting cannot be adjusted, it MUST be replaced with a Zodiac return line diverter [part #W90153
for 1 ½ in. (3.8 cm), #W90155 for 2 in.
(5 cm) or #W24100 for pools without return fittings].
Peso de la
manguera
1 Sección de
la manguera
Colector de espuma o linea de
succión exclusiva del limpiafondos
Colector de espuma o linea de
succión exclusiva del limpiafondos
1 Sección de
la manguera
Peso de la
manguera

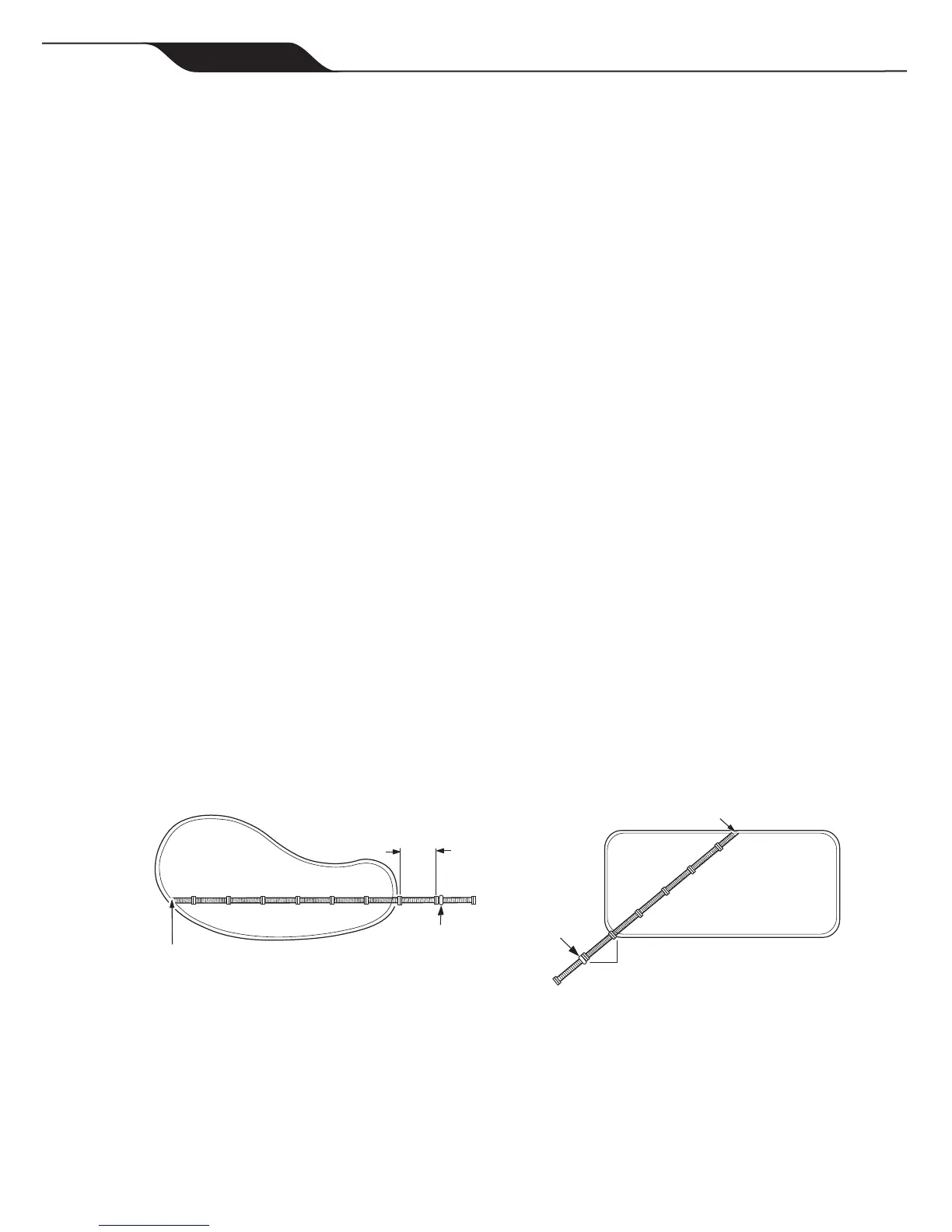

Assemble the Hose
The hoses are fitted with easy twist-lock connectors. Push and twist the connectors on each hose section until they
lock into position with a clicking sound.
1. Connect enough hose to reach the farthest point of the pool; then add two (2) hose sections.
2. Position the hose weight at the end of the first hose section, about 39 in. (1 m) from the cleaner.
