Zodiac T5 Duo User Manual

Page 10
ENGLISH
Zodiac
®
T5 Duo
®
Suction-Side Pool Cleaner
|
Owner’s Manual

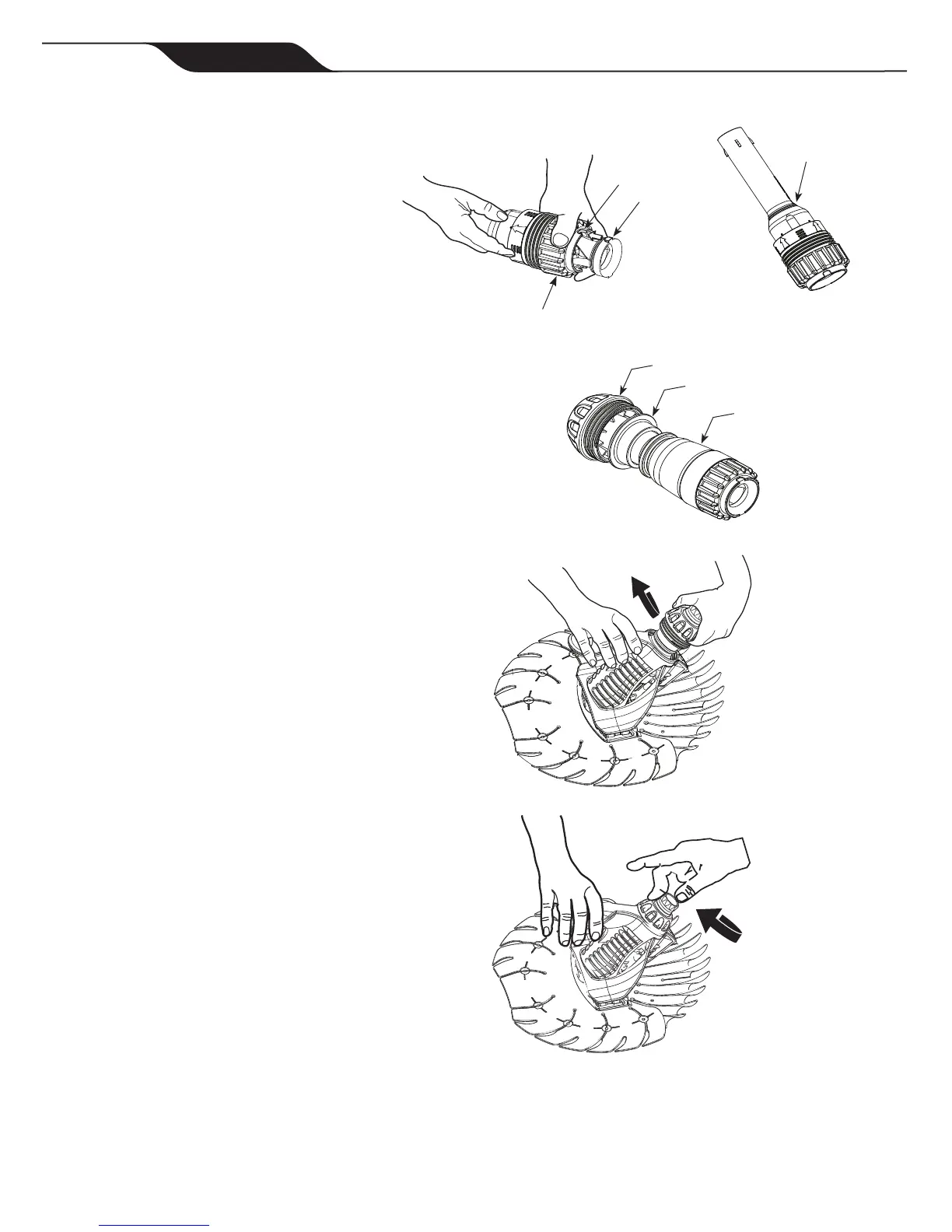

Notch
Cup Assembly
Tab
Edge of
Diaphragm
Handnut
Upper Thrust Washer
Outer Extension Tube
Figure 6 Figure 7
Figure 8
Figure 9
Figure 10
To reinstall diaphragm:
1. Attach diaphragm to inner extension tube.
2. Insert inner pipe and diaphragm into cup
assembly. Align diaphragm tabs with
notches and pull straight through (do not
twist) until the edge of the diaphragm is
visible (see Figures 6 and 7).
3. Thread on the outer extension tube and
slide the thrust washer and the handnut
over the outer extension tube (see Figure
8).
4. Insert the engine into the body and
thread the handnut down tight
(see Figure 9).
5. Make sure the extension tube
swivels freely by spinning it
(see Figure 10).
Storage and Winterizing
Never coil the hose. Store the T5 Duo out of
direct sunlight. When storing for the winter,
drain all water from the cleaner. Remove all
connectors and adapters from the dedicated
suction line or skimmer. Store the disc flat,
and hose sections disconnected, drained and
straight.

Zodiac T5 Duo Specifications

General

Shape	Round
Best uses	Above ground pool, Built-in pool, Inflatable pool
Product color	Blue, Silver, Yellow
Easy to clean	Yes
Package type	Box
Quantity per pack	1 pc(s)

Weight and Dimensions

Width	- mm
