Diaphragm

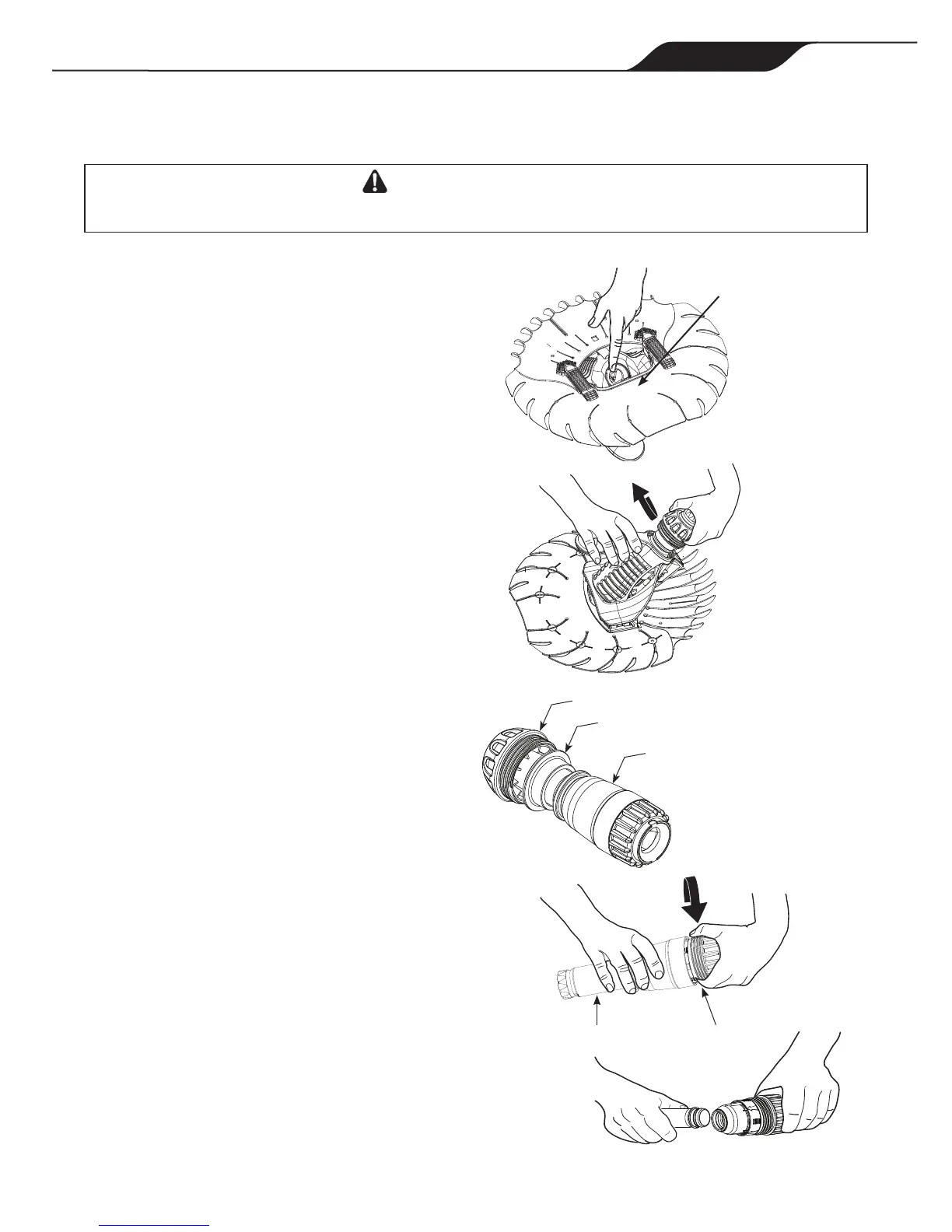

Figure 1
Handnut
Upper Thrust Washer
Outer Extension Tube
Figure 2
Figure 3
Figure 4
Outer Extension Tube Cup Assembly
Figure 5
Clearing the Diaphragm
WARNING
To avoid serious injury, turn off the suction pump for the cleaner before performing this step.
If the cleaner stops, turn off the suction pump for the
cleaner, remove the cleaner from the water, and then
check the diaphragm for blockage.
1. Turn cleaner over (see Figure 1).
2. Inspect diaphragm and push
through debris or obstacles to clear. If not
blocked, check the diaphragm for wear or dam-
age.
To remove the diaphragm:
1. Unthread the handnut (see Figure 2).
2. Remove the handnut, engine, and
upper thrust washer from the body
(see Figure 3).
3. Set aside the handnut and
the upper thrust washer.
4. Unscrew the outer extension tube
from the cup assembly (see Figure 4).
5. Separate the inner extension tube
and pull out the diaphragm
(see Figure 5).
6. Inspect the diaphragm for wear and rinse it thor-
oughly with water. Replace it if necessary.
