4. Use scissors to cut the tabs so they are no higher
than the spikes as shown in Figure 17.

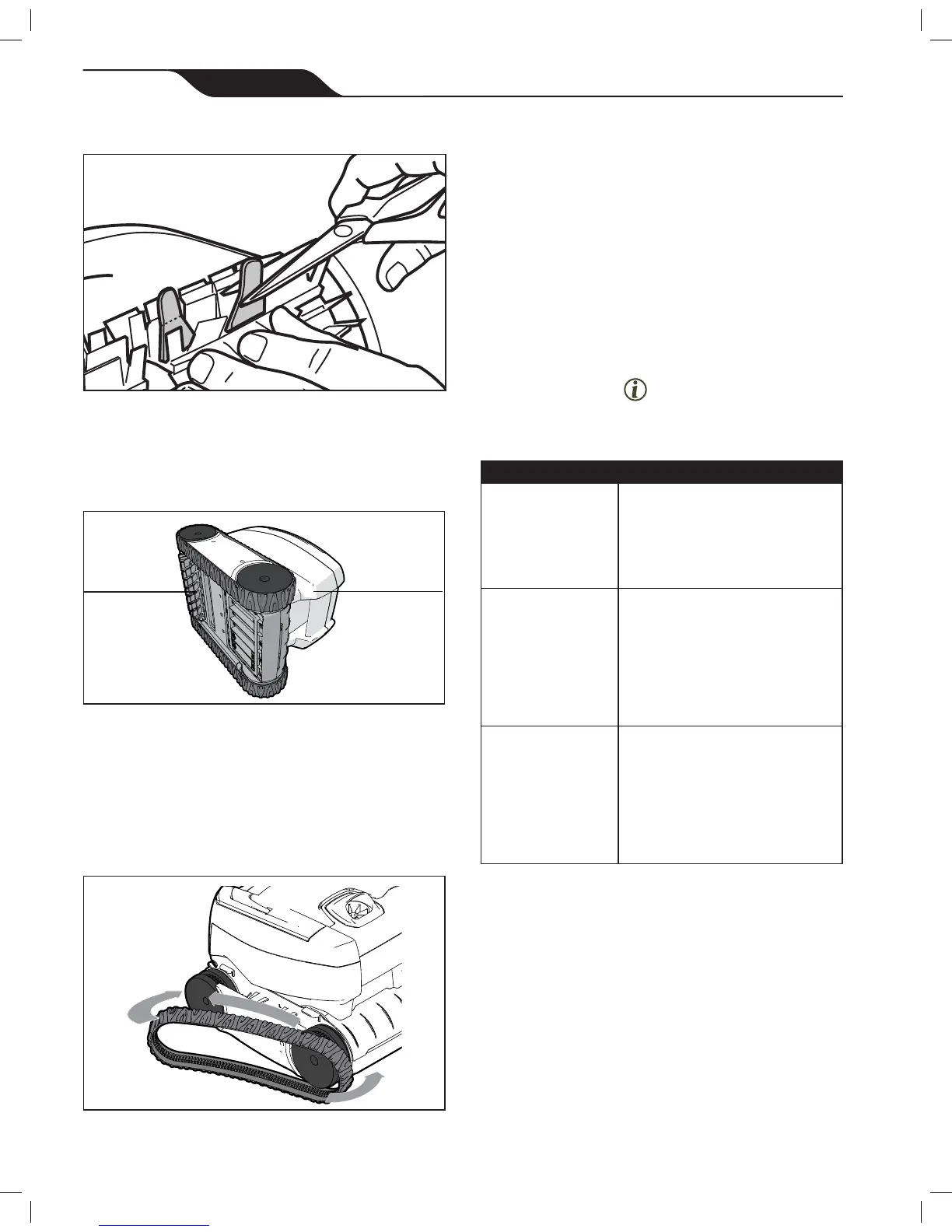

Figure 17. Cut Tabs
4.3 Replacing Tracks
1. Stand the cleaner on its side (Figure 18).
Figure 18. Stand Cleaner on its Side
2. Starting at one of the wheels, pull on the inside
of the track to separate the tire lip from the
wheel. Remove the track from the cleaner.
3. To install a new track, place the inside rib of the
track into the groove in the rst wheel (Figure
19).
Figure 19. Stretch Track Around Wheels
4. Stretch the track around the second wheel, then
pull over the last wheel (see Figure 19). Push
and position the rib of the track so that the track
is seated properly in the groove of the wheel.
5. Verify the rib of the track is positioned properly
within the groove of each of the three wheels. If
necessary, turn the wheels gently to seat track.
Section 5. Troubleshooting
5.1 Using the Information LED
The information LED on the control unit ashes
in a specic sequence to indicate one of three possible
cleaner malfunctions.
LED Flashing Solution
1 Flash
LEDashesonce
with one second
interval.
Unplugtheoatingcablefromthe
control unit and reconnect.
If the problem persists, contact
Zodiac Customer Care: 1300 763
021 (Australia) or 0860 887 665
(South Africa).
2 Flashes
LEDashestwice
with one second
interval
Turn cleaner wheels to ensure
they are not jammed.
Check brushes for debris.
Start a new cleaning cycle.
If the problem persists, contact
Zodiac Customer Care: 1300 763
021 (Australia) or 0860 887 665
(South Africa).
3 Flashes
LEDashesthree
times with one
second interval
Check the pump axis for debris.
Check propellor for debris.
Cleanthelter.
Start a new cleaning cycle.
If the problem persists, contact
Zodiac Customer Care: 1300 763
021 (Australia) or 0860 887 665
(South Africa) .
General Troubleshooting
The following table lists some of the common
symptoms, causes, and solutions for correcting cleaner
operation problems.
