Section 2. Getting Started
2.1 GeneralSpecications
The general specications for the cleaner are as follows:
Control box
supply
voltage
100-240 VAC, 50/60 Hz; short circuit-
proof safety isolating type
Supply voltage 30 V DC
Installed load 100 W max
Max Total Depth 4m
Cable length 16.5m
Cleaner size
(WxDxH)
37 x 29 x 30 cm
Weight of Cleaner 7 kg
Filtration
All-purposeltercanister
This cleaner is a double-insulated product. A double-
insulated electrical appliance is one which has been
designed in such a way that it does not require a safety
connection to ground. The basic requirement for
double-insulation is that no single failure will result in
dangerous voltage becoming exposed so that it might
cause an electric shock and that this is achieved by
having two (2) layers of insulating material surrounding
live parts or by using reinforced insulation. Therefore,
devices having double-insulated construction, such as
this cleaner, do not require a grounded (three-prong)
plug.
2.2 Unpacking
The packaging should contain the following items:
• Zodiac robotic cleaner
• Power cord
• Control unit
• Trolley components (FX35) (please see the Quick
Start Guide for trolley assembly instructions)
• Control unit base (FX20, FX30)
When unpacking the cleaner and its components:
• Check to make sure each component is in the box.
• Check cleaner and components for damage during
transport.
• If there are missing parts or damage:
Australia and New Zealand please contact Zodiac
Customer Care 1300 763 021 or visit www.zodiac.
com.au.
South Africa please contact Zodiac Customer Care
0860 887 665 or visit www.zodiac.co.za

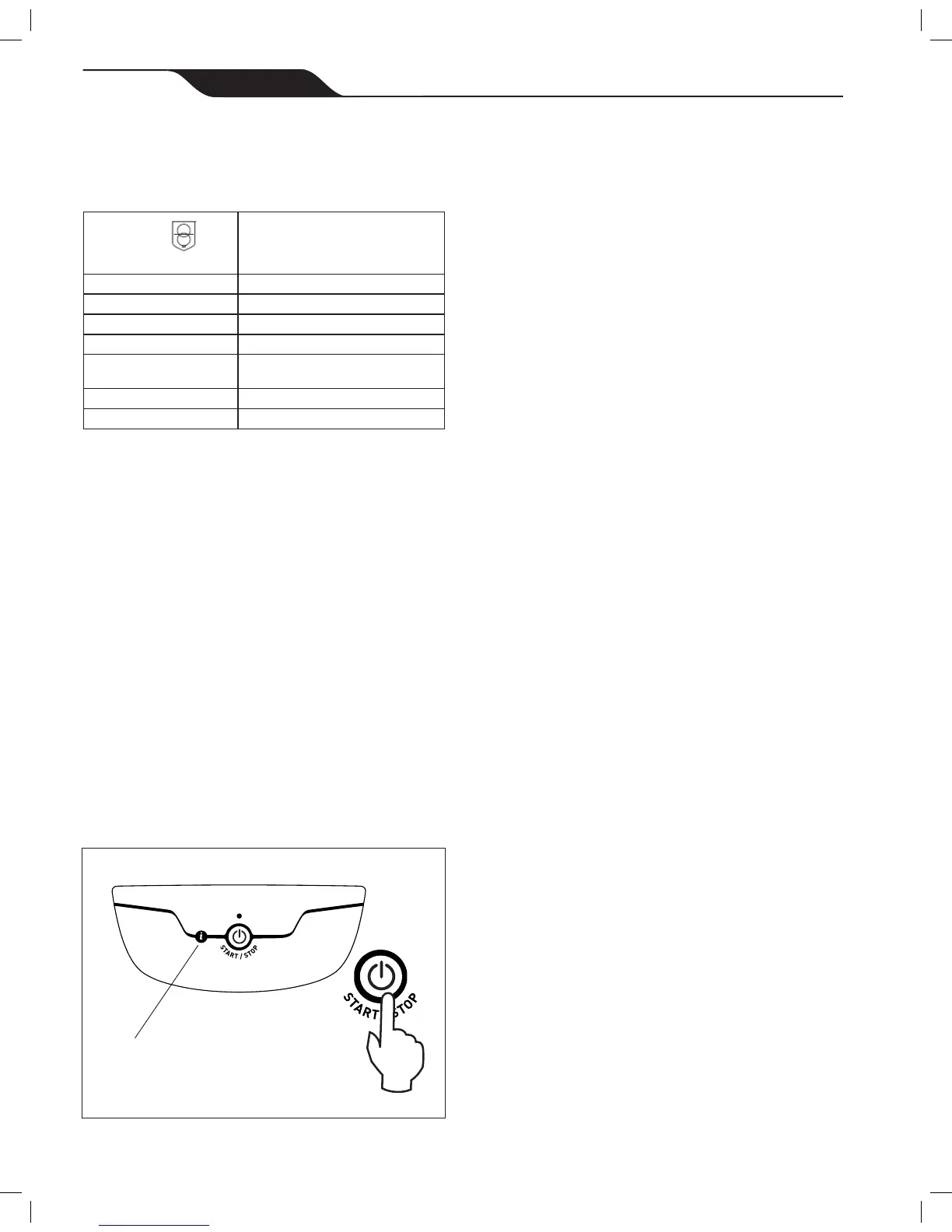

2.3 Cleaner Control Unit
Start/Stop Cleaner
Operation
Information
LED
