Zoeller Basement Sentry Series Installation

5
© Copyright 2009 Zoeller Co. All rights reserved.

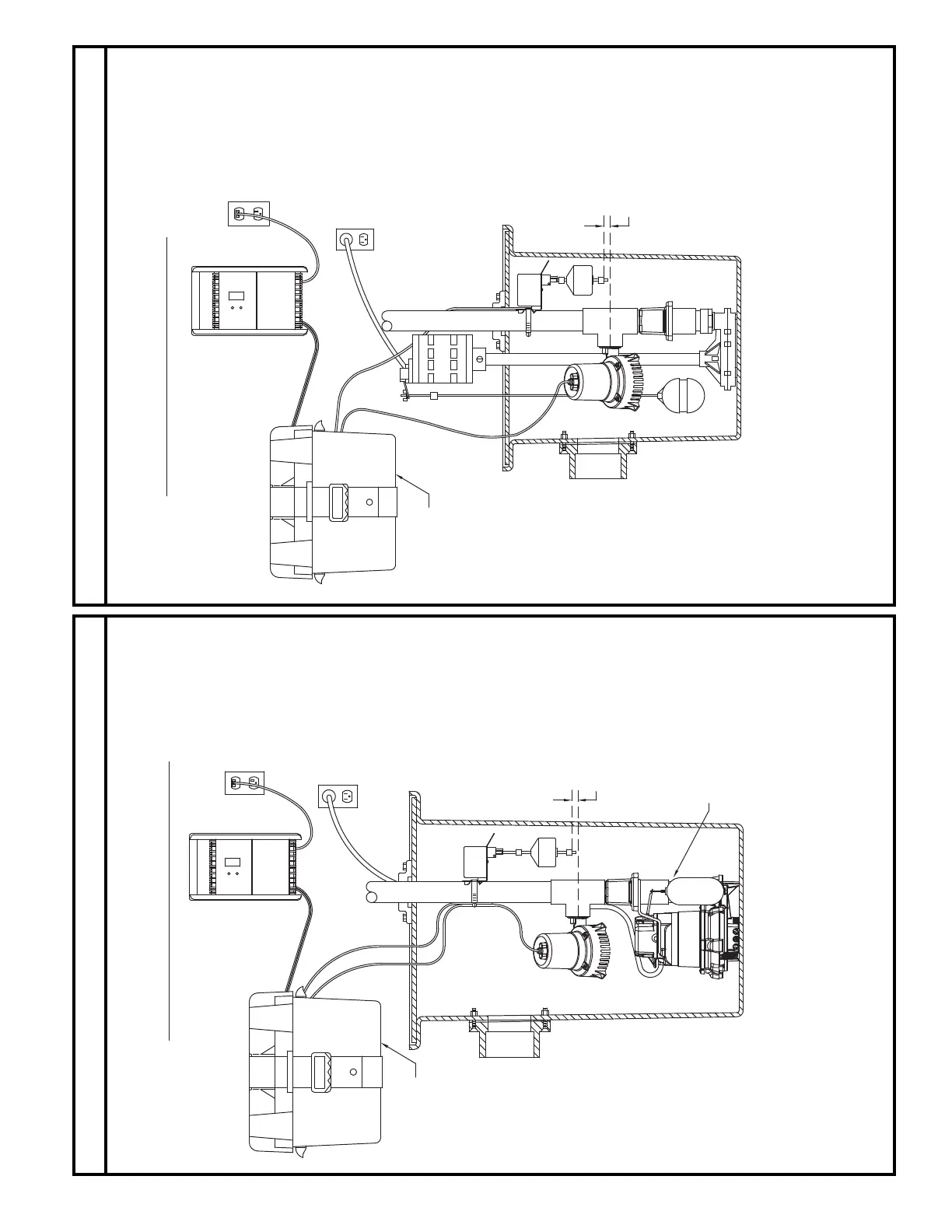

FIGURE 1
Assembly With Column Pump
FIGURE 2
Assembly With Submersible Pump
NOTE: Pump must be mounted on a 30º angle to avoid airlocking NOTE: Pump must be mounted on a 30º angle to avoid airlocking
DC PUMP PLUMBED IN LINE WITH SUBMERSIBLE PUMP
OUTLET PUMP PRIMARY
BATTERY BOX
VERIFY WEEP HOLE IS PRESENT
IN MAIN DISCHARGE LINE. (SEE PUMP INSTALLATION INSTRUCTIONS)
1" MIN.
IMPORTANT: OFF LEVEL
OF FLOAT ASSEMBLY
MUST BE HIGHER THAN DC BACKUP PUMP
BATTERY BOX
OUTLET PRIMARY PUMP
DC PUMP PLUMBED IN LINE WITH COLUMN PUMP
1" MIN.
IMPORTANT: OFF LEVEL
OF FLOAT ASSEMBLY
MUST BE HIGHER THAN DC BACKUP PUMP
SK2499 SK2500
