7
© Copyright 2009 Zoeller Co. All rights reserved.

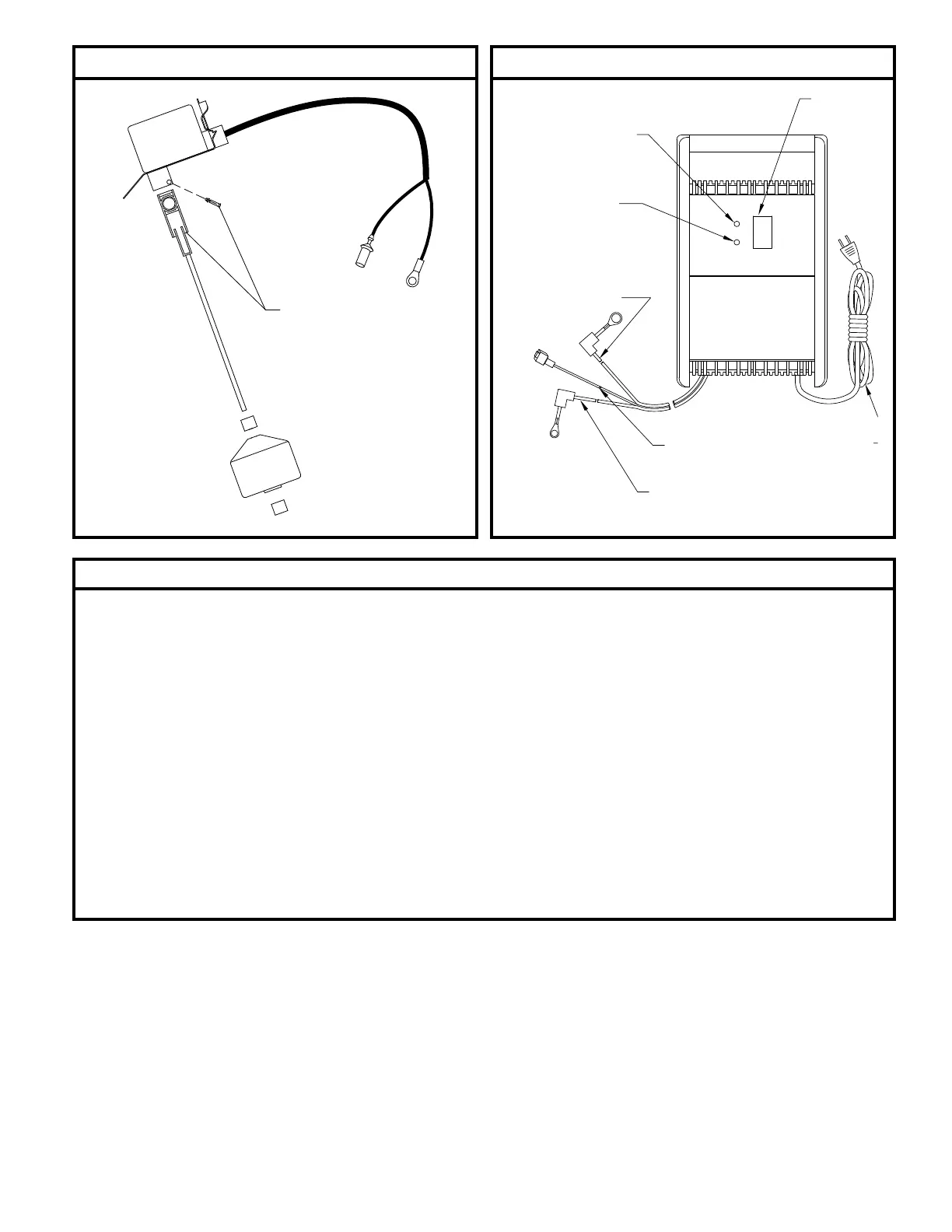

Float Switch Control Charger
LOCKING PIN MUST BE
INSTALLED UNDER FLOAT
ROD IN THIS LOCATION.
NON-GROUNDED
POWER CORD
ALARM RESE
POWER ON
BLACK LEAD TO
NEG. BATTERY TERMINAL
BLUE LEAD TO
FLOAT SWITCH
TO POS. BATTERY TERMINAL
BLACK WITH RED TRACER
"RED"
"CHARGING-YELLOW"
"CHARGED-GREEN"
INDICATOR
There are millions of batteries manufactured each year, so it is impossible to guarantee consistent quality. A defective battery will never become
fully charged and may damage the charging circuits of the Control. It is for this reason that Zoeller offers its own line of batteries. We offer both
a Water/Acid Deep-Cycle Battery which can run the pump continuously for over 7½ hours, and a Maintenance-Free AGM Battery, which will
power the pump for over 3½ hours. These times are based on continuous pumping at 10' of static head. Actual times will vary depending on
static head, volume of water entering the pit, and the condition of the battery.
Follow these recommendations:
• Use a B.C.I. size 27 deep-cycle battery, 175 minute reserve capacity, or larger.
• Do NOT use a “maintenance-free” battery unless it is a Gel-fi lled or AGM battery.
• Replace your battery every 3 years.
• Do not let corrosion build up on the battery terminals.
• Do not place your battery on a concrete fl oor where it will discharge faster.
• To check specifi c gravity, follow the instructions on a hydrometer (not applicable for Gel or AGM batteries).
PROTECT YOUR WARRANTY:
• Water level in batteries must be checked once a month (not applicable for Gel or AGM batteries).
The Aquanot
®
Battery
FIGURE 5
SK2503
FIGURE 6
SK1424
