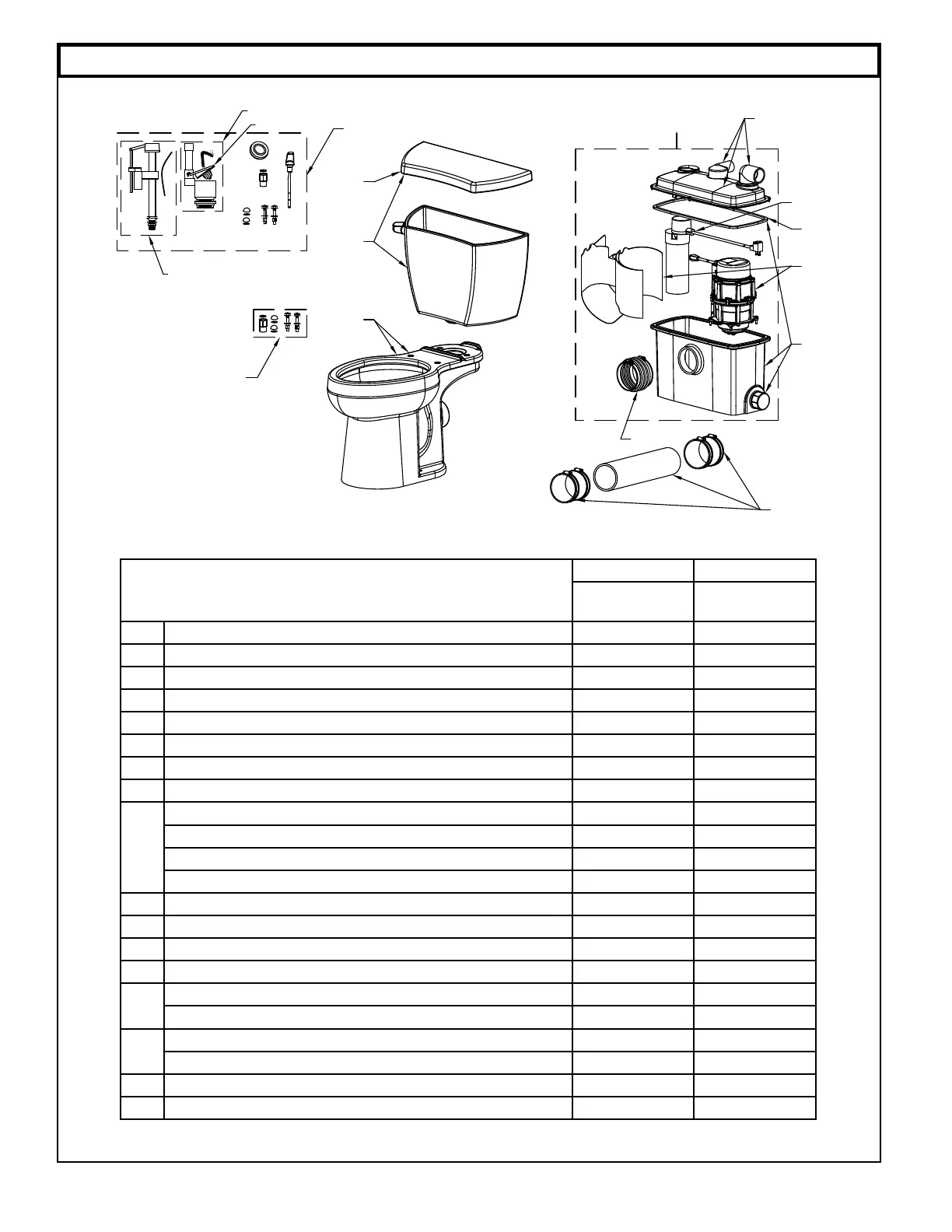

Service Parts
QWIK JON
®
ULTIMA
202-A & B 202-C
10/06 thru
5/16
6/16 thru
Current
Item Description Part No. Part No.
1 Qwik Jon
®
Ultima sewage removal system 202-1000 202-1000
2 Replacement pump with discharge pipe 017374 152165
3 Tank cover with discharge ttings 017373 017373
4 Tank 018500 018500
5 Seal 017350 017350
6 Float switch assembly 018501 018501
7 Toilet bowl 202-2000 202-2000
8
Toilet tank with cover 1.6 GPF (6.1 LPF) (left handed) 202-3000 N/A
Toilet tank with cover 1.6 GPF (6.1 LPF) (right handed) 202-3001 N/A
Toilet tank with cover 1.28 GPF (4.8 LPF) (left handed) N/A 202-3002
Toilet tank with cover 1.28 GPF (4.8 LPF) (right handed) N/A 202-3003
9 Toilet tank cover 150012 154032
10 Rubber coupling with hose clamps 151563 151563
11 Extension kit for behind the wall installation 10-3050 10-3050
12 Tank-to-toilet hardware 017360 154048
13
Flush valve replacement kit - 1.6 GPF (6.1 LPF) 150658 N/A
Flush valve replacement kit - 1.28 GPF (4.8 LPF) N/A 152587
14
Fill valve assembly with tube - 1.6 GPF (6.1 LPF) 150823 N/A
Fill valve assembly with tube - 1.28 GPF (4.8 LPF) N/A 152588
15 Flush valve assembly 150824 154029
16 Flapper with clip and chain 150825 N/A
