NOTES:
a) Do not use pipe dope on any plastic or rubber parts.
b) Be careful when tightening bolts or nuts against china to
avoid cracking the china.

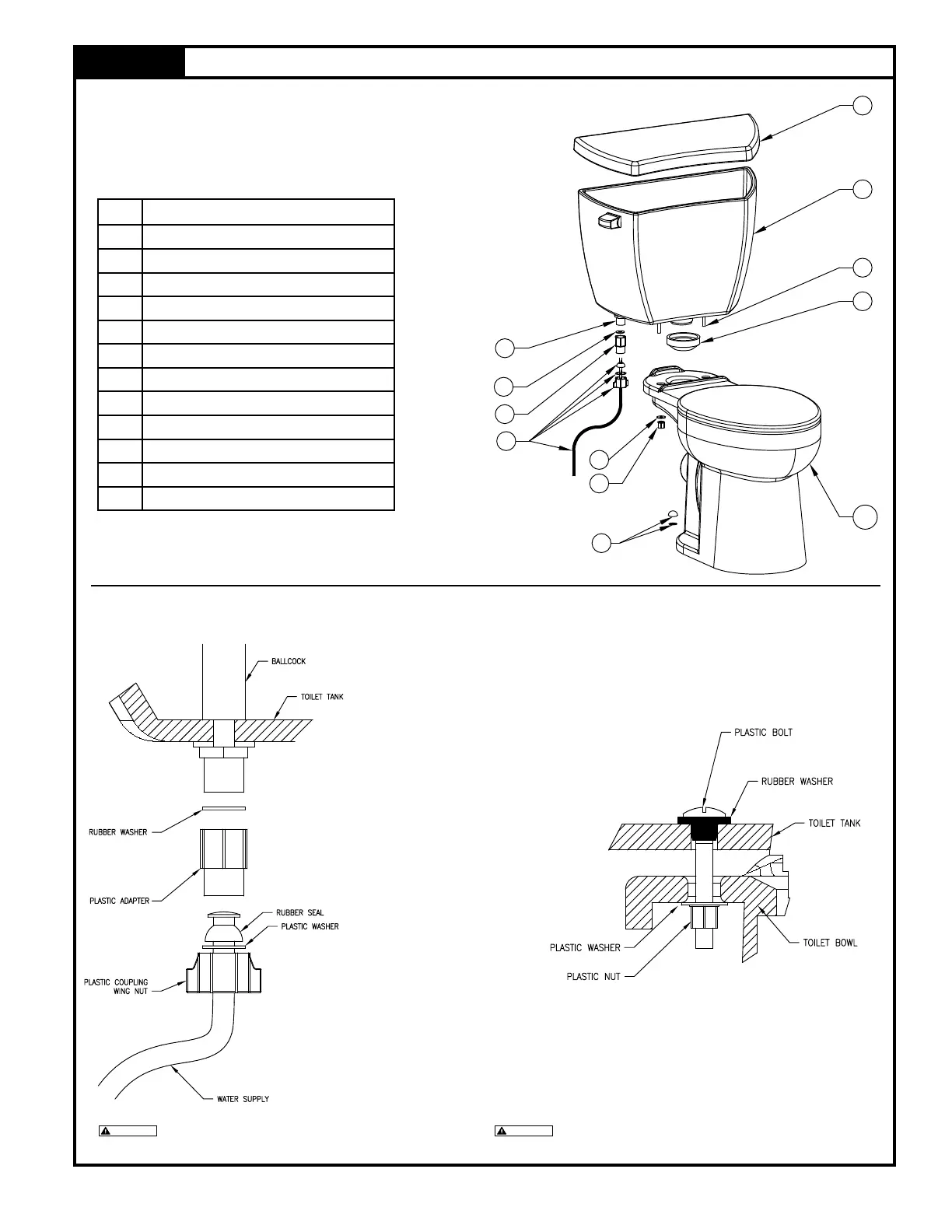

STEP 3 Toilet Assembly
1
2
3
4
12
10
7
6
5
8
9
11
SK2593
TANK TO BOWL DETAILWATER SUPPLY HOOK-UP DETAIL
Set the black rubber washer.
Push down on the top of the tank one side at a time to
tighten the nuts under the bowl. Alternate tightening nuts
making sure bowl is level.
DO NOT OVERTIGHTEN or china may crack.
DO NOT OVERTIGHTEN. Ballcock shank
may split and void the warranty.
SK2594
Item Description
1 Toilet tank cover
2 Toilet tank
3 Toilet tank to toilet bowl gasket bolts
4 Rubber toilet tank to toilet bowl gasket
5 Water supply connection
6 Water supply line rubber seal
7 Water supply line adapter
8 Water supply line (not included)
9 Plastic at washer
10 Plastic nut
11 Bolt cover
12 Toilet bowl
