Zoeller QWIK JON ULTIMA 202 User Manual

6
© Copyright 2017 Zoeller
®
Co. All rights reserved.
Qwik Jon
®
Ultima Qwik Reference Guide

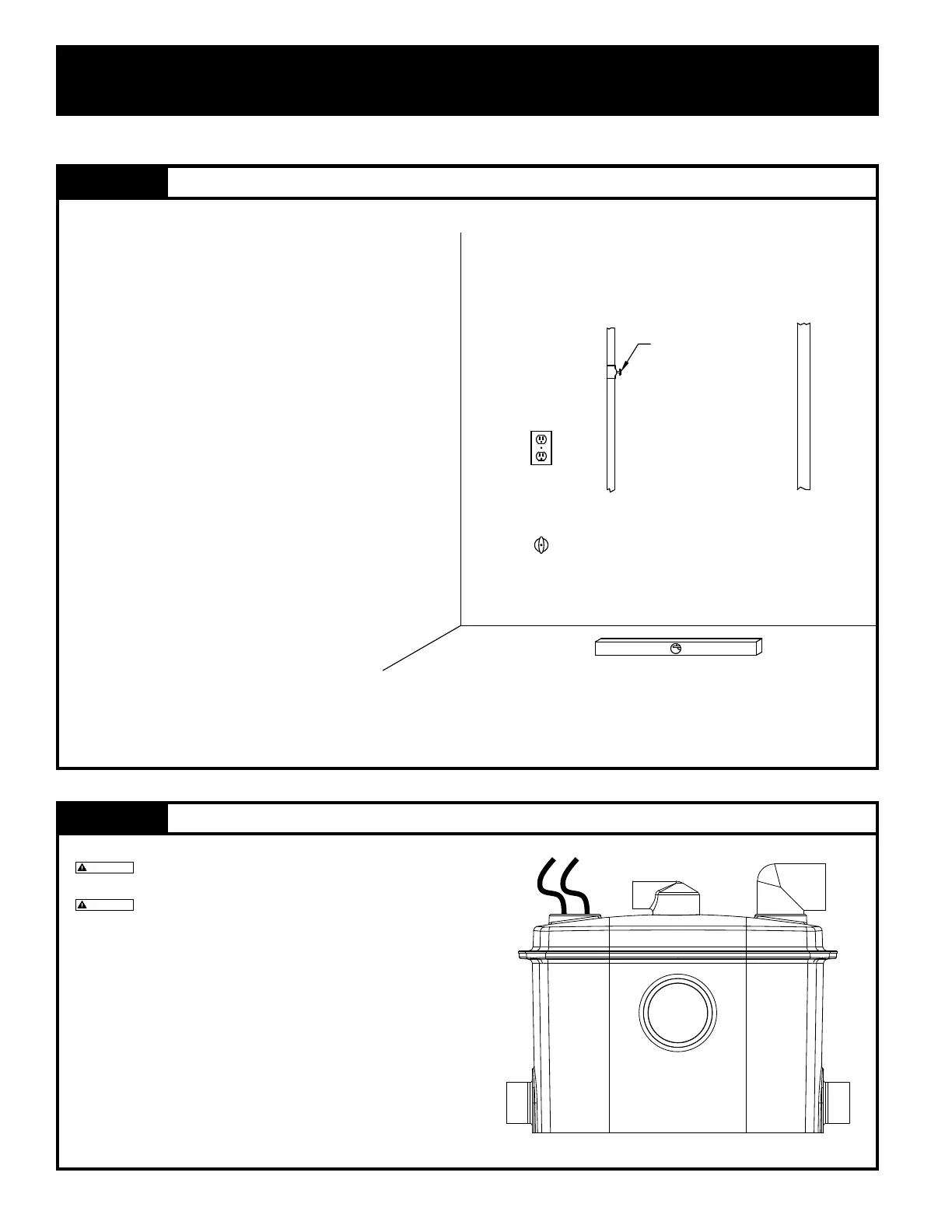

STEP 1 Location Selection
Plan your new installation carefully.
Floor: The oor should be structurally sound
and level within 1/8" (3 mm). If the oor is not
level, use hydraulic cement or similar material
to level the oor.
Water: A water supply will be needed to
operate the toilet. Usually a 1/2" (DN15) line
with a shut-off valve is sufcient.
Electrical: A 115 volt GFCI or RCD receptacle
will be needed to supply electrical power to
the pump.
Sewage: Access to a sewage line is required.
The Qwik Jon
®
Ultima requires a 1" (DN25)
[or 3/4" (DN20) if your codes permit] sewage
discharge line to connect to an existing sewage
line. A ball or gate valve should be installed in
the discharge line.
Vent: Access to a vent pipe is required. The
use of a mechanical vent system is NOT
recommended as the toilet will not ush.
NOTE: If a built-in installation is to be used,
locate the pump unit in an area that will allow
access to the pump and switch.
GFCI
OUTLET
WATER
SUPPLY
DISCHARGE
PIPE
VENT
PIPE
LEVEL FLOOR
BALL OR GATE VALVE
SOLD SEPARATELY.
SK2588
STEP 2 Leveling of Pump Unit
CAUTION
Do not use wooden shims to level the pump unit!
CAUTION
Ensure that nails, screws or other sharp objects do
not puncture the pump unit!
Level the pump unit to within 1/8" (3 mm) using hydraulic cement
or similar material.
SK2589
