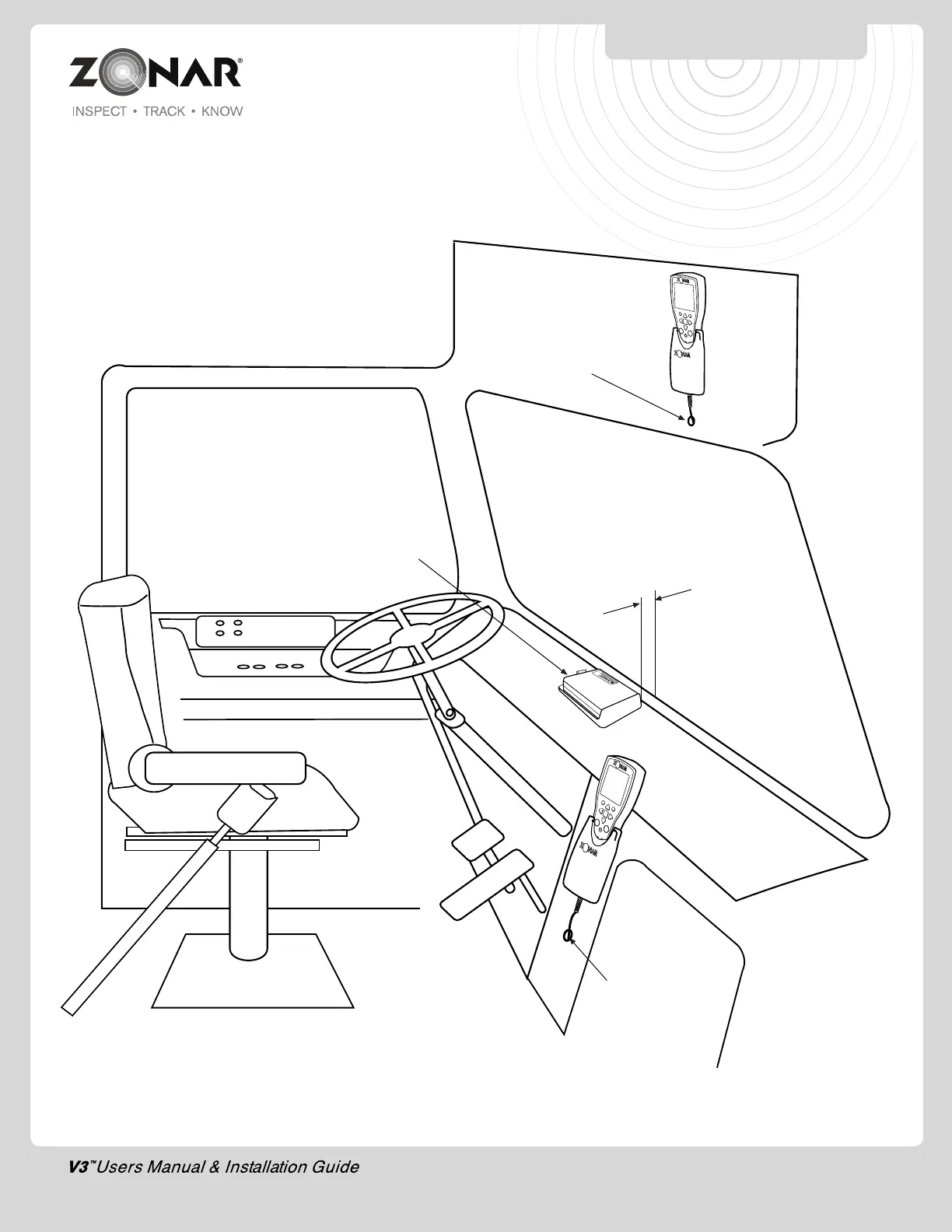

Zonar V3 - Typical Installation Example; Dashboard Installation Placement

Typical Installation
Fig. 21-1
Drill Hole Size: 3/4”
(.750”)
Grommet: 9/16”
(.562”) I.D.
INSTALLATION EXAMPLE
Optional Location
Drill Hole Size: 3/4”
(.750”)
Grommet: 9/16”
(.562”) I.D.
21
Ensure
Adequate
Clearance
Keep the unit as
horizontal as
possible -
Do not place items
on top of device
Keep the unit away from metal and out of
metallic enclosures (use external GPS
antenna if this is unavoidable)
Keep the unit and antennas away from
radio frequency emitting equipment
