10-SIDE COVER COMPONENT
79
CHK
ADJ
NO. PART NO.
1
－
2 1244100-002000
－
S Side cover round rubber
6
3
－
PROCEDURE:
●Side cover component
Grasp the lower edge① of the right side cover (3) and pull it out.
Grasp both ends ② and ③ of the right side cover ⑶ and pull out, and then remove the right side cover ⑶.
Remove the left side cover ⑴ in the same way.
There are 4 pieces of side cover round rubber (2) assembled on the frame and 2 pieces on the rear cover.
CAUTION:
●When assembling, install the buckle at ③ first, then pry the buckle at the front ② to the lower part of the fuel
tank trim cover, and finally install the buckle at ①.
●The parts should be protected during the disassembly process.
●When removing the buckle, pay attention to the strength to prevent damage to the buckle.

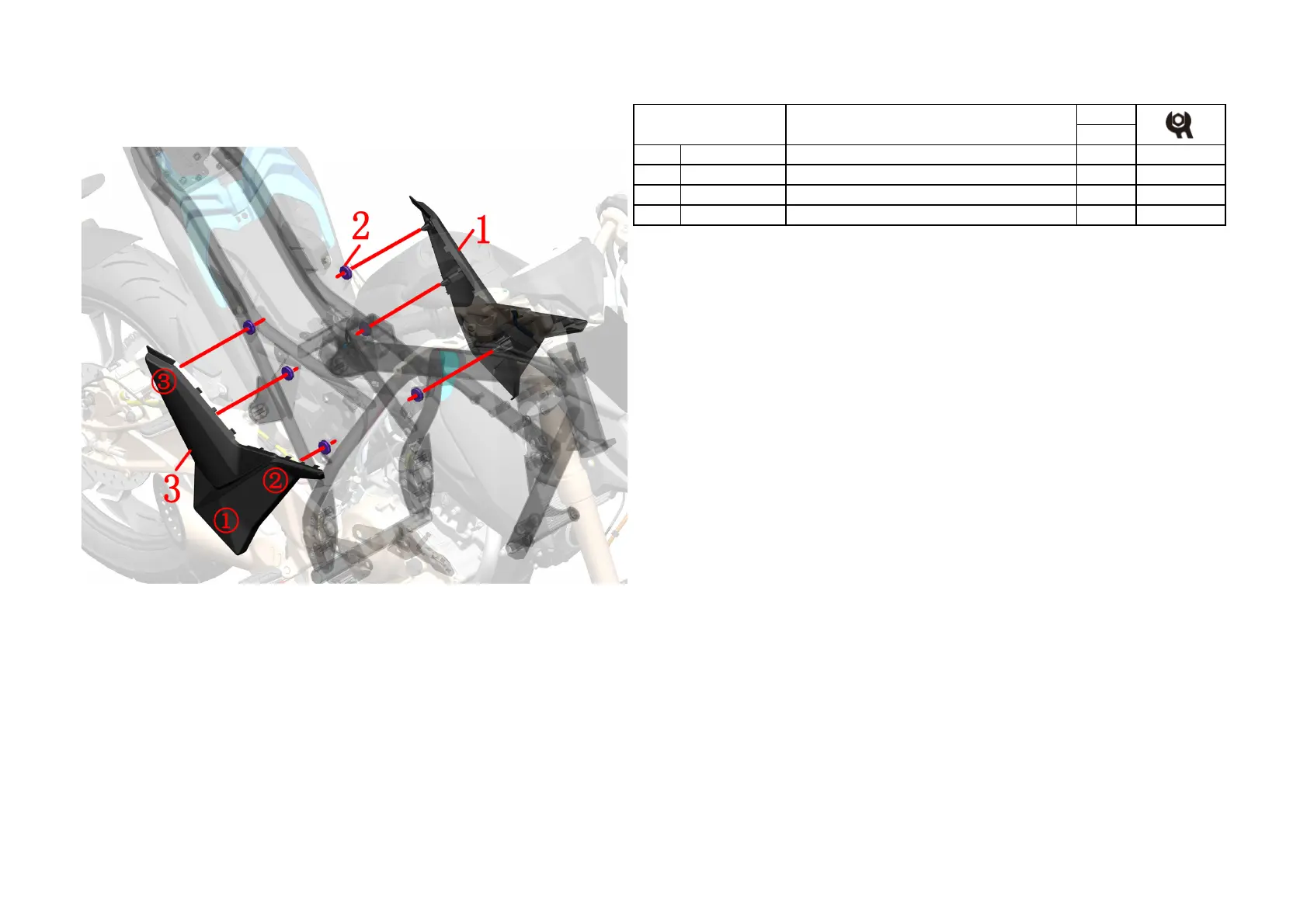

Fig.1 SIDE COVER
COMPONENT
Side cover component
To Next Page
