3-INDUCTION SYSTEM COMPONENT
13
CHK
ADJ
NO. PART NO. PART NAME QTY CAUTION
1 1050954-007000
39－N008 gasline injector
1
2 1050954-008000
－
3 1251112-001093
M6×16 Hexagon flange bolts (color zinc)
1
4 1050954-006000
ZT180MN high press fuel pipe of EFI
1
5 1251300-063093
Plywood M6×11×15(color zinc)
5
6 1251100-101000
Non－standard bolt M6×12 (304 stainless steel)
5
7 1274100-076000
ZT250－R rear disc brake pipe clamp (steel)
1
8 1224200-058000
－
R second generation air filter
1
9 1051354-004000
10 1050953-021000
TB35 throttle body parts
1
11 1050953-022000
TB35 intake manifold assembly
1
12 1051453-007000
45×2.1 Fluoroelastomer O-ring
1
13 1244100-083000
－
R Air filter small air inlet
1
14 1251100-061093
M6×22 Hexagon flange bolt
（
）

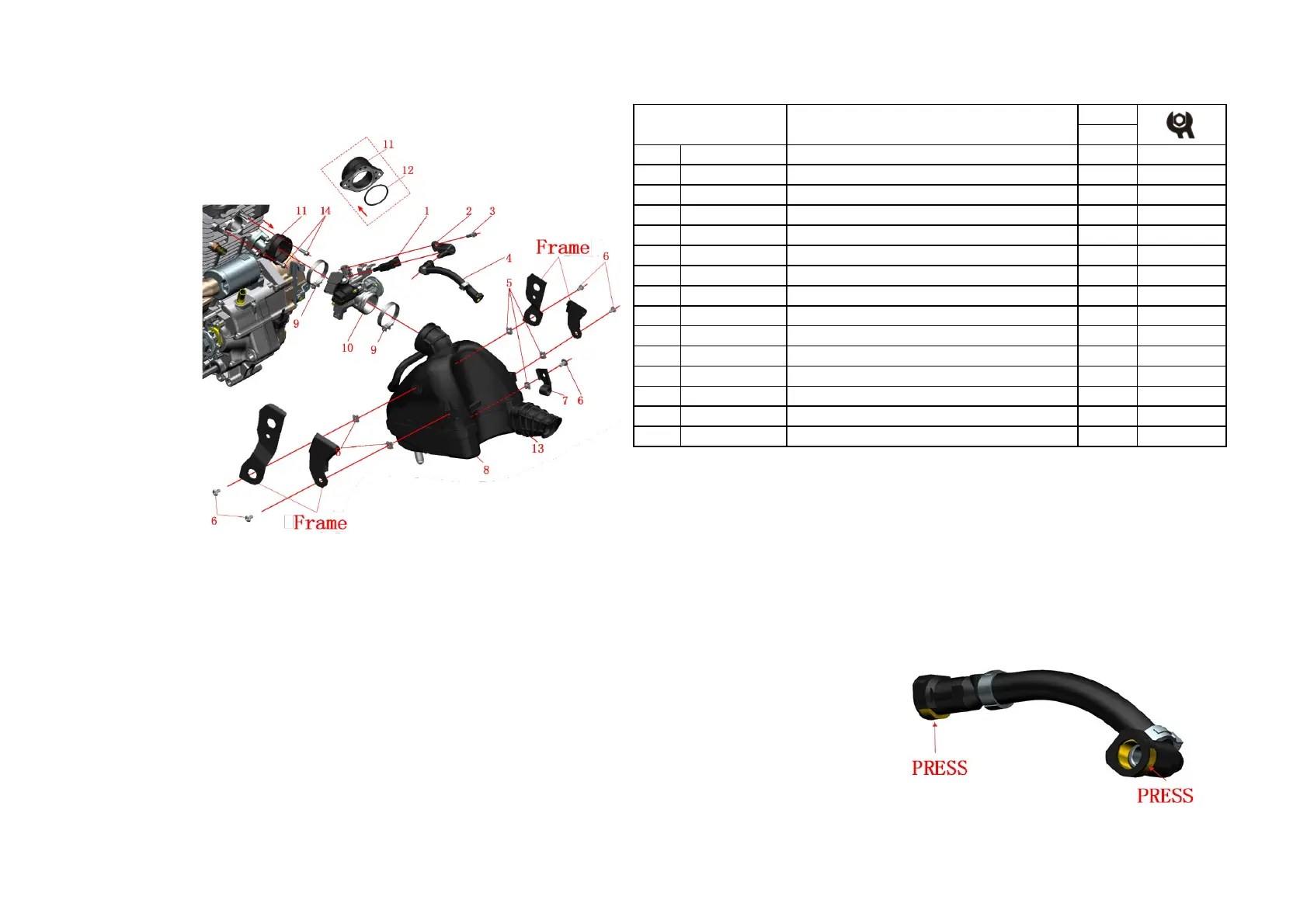

FIG.1 INDUCTION
SYSTEM COMPONENT
PROCEDURE:
●High pressure oil pipe
Press anti-loose ring on the joint of the fuel pump joint which is close to high pressure oil pipe ⑷, then
pull it out directly, the balance fuel in the tube needs to be connected to the oil pot. Please prevent fuel
dripping onto any part of the vehicle. Press the anti-loose card ring near the injector fixator⑵ to unplug
the high-pressure oil pipe, as picture shown, smoking and lighting fires are strictly forbidden during
disassembly.
●Air filter
Remove the bolts ⑹ with the inner hex sockets tool, pull the the tubing clip⑺out from the disc brake
pipe and take it out. Loosen the pipe hoop assembly on the air filter ⑼, clamp on the exhaust pipe and
unplug the exhaust pipe from the exhaust outlet of the engine. Then use the rubber plug to prevent the
foreign body from entering the damaged engine. Remove the air filter ⑻ and plywood nut ⑸.Remove the
small air inlet⒀ from air filter⑻.
●Throttle valve component
Remove the bolts ⒁
with the club wrench and remove the throttle valve assembly. Loosen and remove
the pipe band ⑼ between the induction manifold assembly ⑾ and the throttle part ⑴,Remove the O ring
⑿ from the induction pipe assembly.Remove the screw ⑶ of the fuel injector fixator ⑵ with the sleeve
and remove the fixer and the fuel injector ⑴.
●
First it need to remove the cushion,side cover,oil tank outside cover and liner,rear shock absorber and electrical
device box etc.
●When removing the high pressure oil pipe,It is sure to operate until the engine and muffler are completely
cooled. Prevent accidental ignition of fuel and cause fire.
●Fireworks, answering or dialing should be strictly prohibited near the car-breaking site to prevent accidents.
