Zontes ZT250-R EURO/IV 2019 User Manual

11-CUSHION COMPONENT
70
CHK
ADJ
NO. PART NO. PART NAME QTY CAUTION
1 1204100-006000
ZT250-R Cushion
1 one set
2 1244100-024000
ZT250-R Cushion front rubber 2
3 1244100-022000
ZT250-R Cushion rubber 2
4 1244100-025000
ZT250-R Cushion circle rubber 4

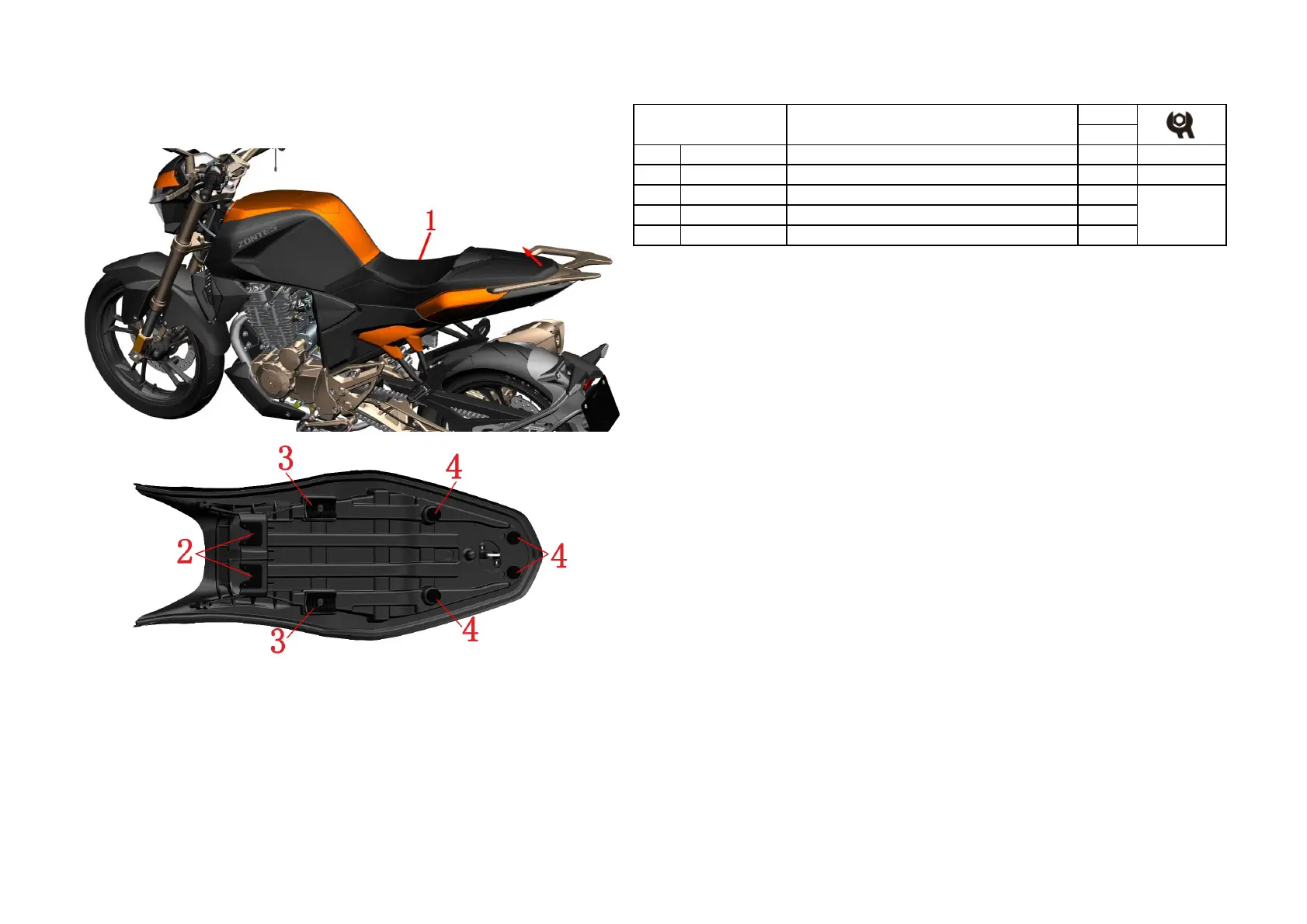

FIG.1 CUSHION
COMPONENT
Cushion component
PROCEDURE:
●Seperate cushion
Insert the key in the "OFF" position ,counterclockwise until the sound indicates that the cushion lock is open.
Tap the back of the cushion if there is no sound.
Hold the rear cushion in the direction of the arrowhead, while remove the cushion from left and right swing
cushion.
● Install cushion
When assembling the cushion, first check whether all the cushion glue is complete, insert the front of the
cushion first, and then make a hard clap at the end of the cushion,,when heard "kaca",the cushion lock is in
place.
●Cushion rubber,lock plate component for individual sales
If the cushion glue is worn or the cushion lock damaged too much, you can buy the genuine article on the
website.
The corresponding installation location is shown in the lower left image.
CAUTION:
●The motorcycle should be fixed and then operated.
●The cushion contains all the cushion glue and lock pieces and bolts.
●It is easy to be surprised when the cushion is not in place.
for after-sale

Zontes ZT250-R EURO/IV 2019 Specifications

General

Displacement	249 cc
Bore x Stroke	72 mm x 61.2 mm
Compression Ratio	11.5:1
Fuel System	Electronic fuel injection
Starting System	Electric
Transmission	6-speed
Final Drive	Chain
Front Suspension	Telescopic fork
Front Brake	Single disc, ABS
Rear Brake	Single disc, ABS
Front Tire	110/70-17
Rear Tire	150/60-17
Wheelbase	1380 mm
Ground Clearance	150 mm
Curb Weight	159 kg
Engine Type	Single cylinder, 4-stroke, liquid cooled
Torque	23 Nm
Frame	Steel trellis
Rear Suspension	Mono shock absorber
Fuel Tank Capacity	15 L
