9-SIDE COVER COMPONENT 62
NO. PART NO. PART NAME QTY CAUTION
1 1224100-024000
－
S Plastic connection piece
2
4044100-016036
－
S left side cover (electroplated bright gray highlight)
4044100-016021
ZT250－S left side cover (special black)
special black
4044100-021033 Left side cover decorative cover (bright orange) orange
4044100-021064 Left side cover decorative cover (light blue)
4044100-021021
ZT250－S left side cover decorative cover (special black)
gray
4044100-021036
－
S left side cover decorative cover
(electroplated bright gray highlight)
special black
4 1224100-010000
－
4044100-020033 Right side cover decorative cover (bright orange) orange
4044100-020064
ZT250－S right side cover cover (bright blue)
blue
4044100-020021
ZT250－S right side cover decorative cover (special black)
gray
4044100-020036
－
S right side cover decorative cover
(electroplated bright gray highlight)
special black
－
S right side cover (electroplated bright gray highlight)
4044100-014021
ZT250－S right side cover (special black)
special black
3 1

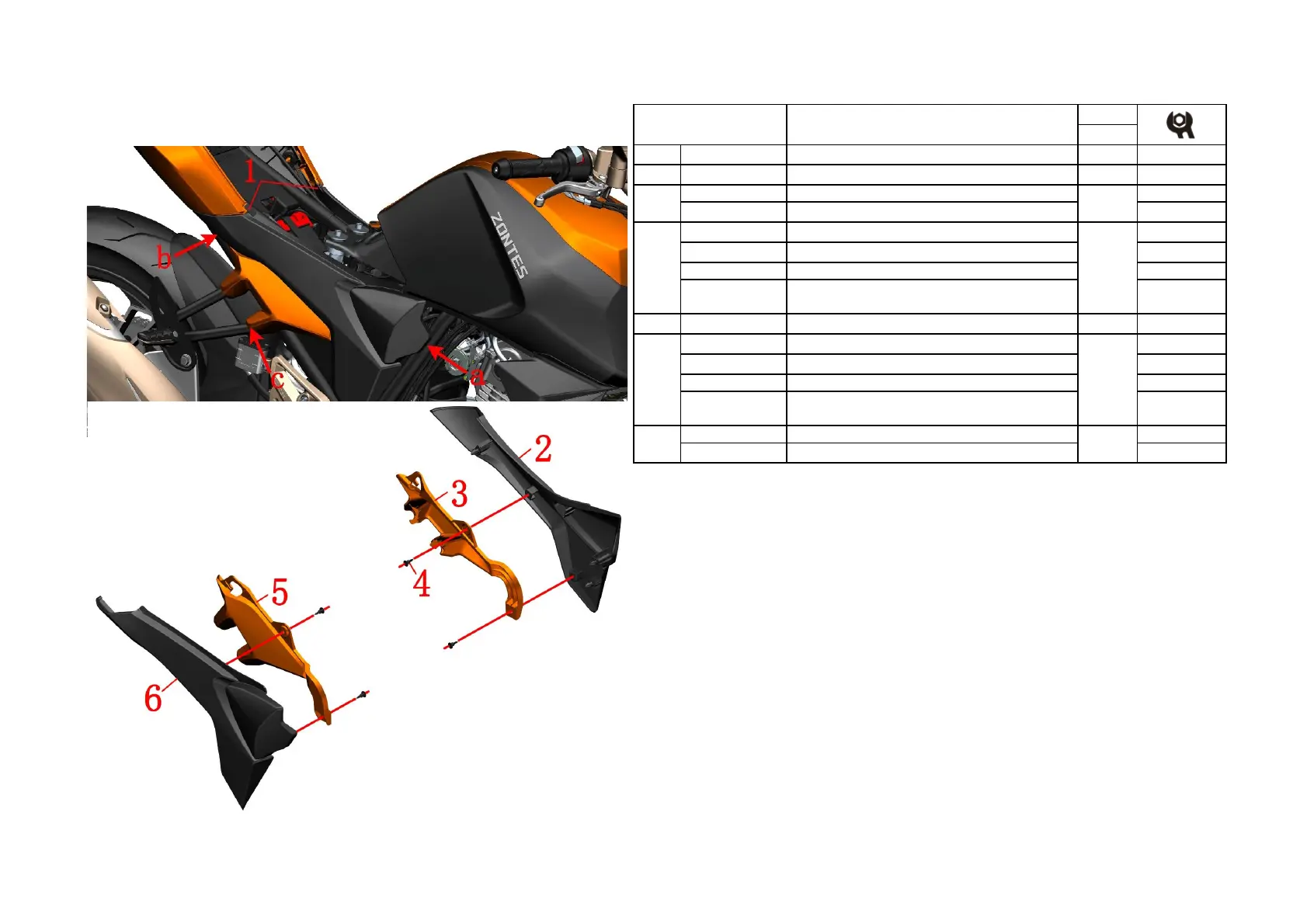

FIG.1 SIDE COVER
COMPONENT
Side cover assembly
2 1
5 1
6 1
PROCEDURE:
●Side cover assembly
Remove the plastic connection piece ⑴.
Press the a-end of the right side cover to pull out forcibly, then pull out the b-end, remove the right cover
assembly; Similarly remove the left cover assembly.
Use a small cross screwdriver to press the center of the expansion nail down.
Separate the side cover and the side cover decorative cover.
CAUTION:
●Make sure the motorcycle is fixed during the process of disassembly.
●Use force to pull outwards when removing the side cover assembly, do not pull it diagonally to prevent
breaking the staple bolt.
●
When assembling the side cover assembly, it should first install the b-end, then install the a-end, and then press
c-end to attach the decorative cover to the frame pipe.
