4

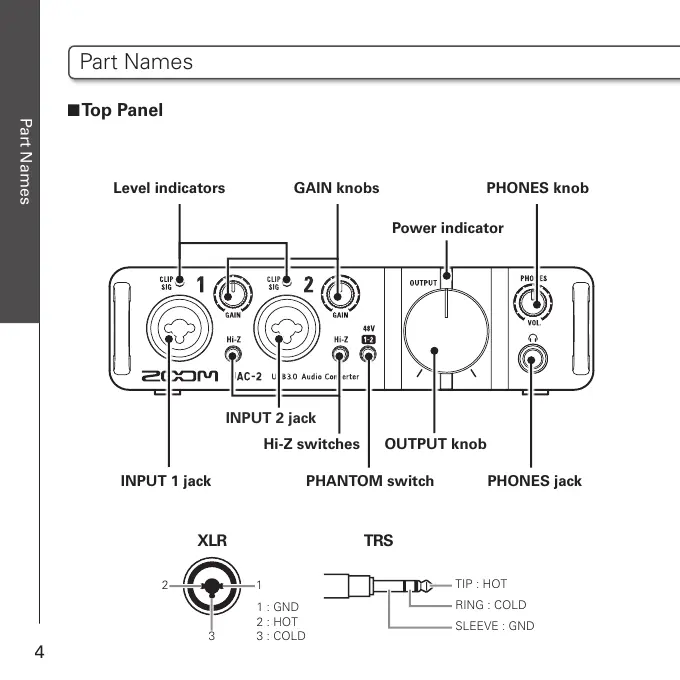

Part Names
Part Names
INPUT 1 jack
INPUT 2 jack
Level indicators GAIN knobs PHONES knob
Power indicator
PHONES jackPHANTOM switch
OUTPUT knob Hi-Z switches
Top Panel
XLR TRS
1 : GND
2 : HOT
3 : COLD
TIP : HOT
RING : COLD
SLEEVE : GND
12
3
