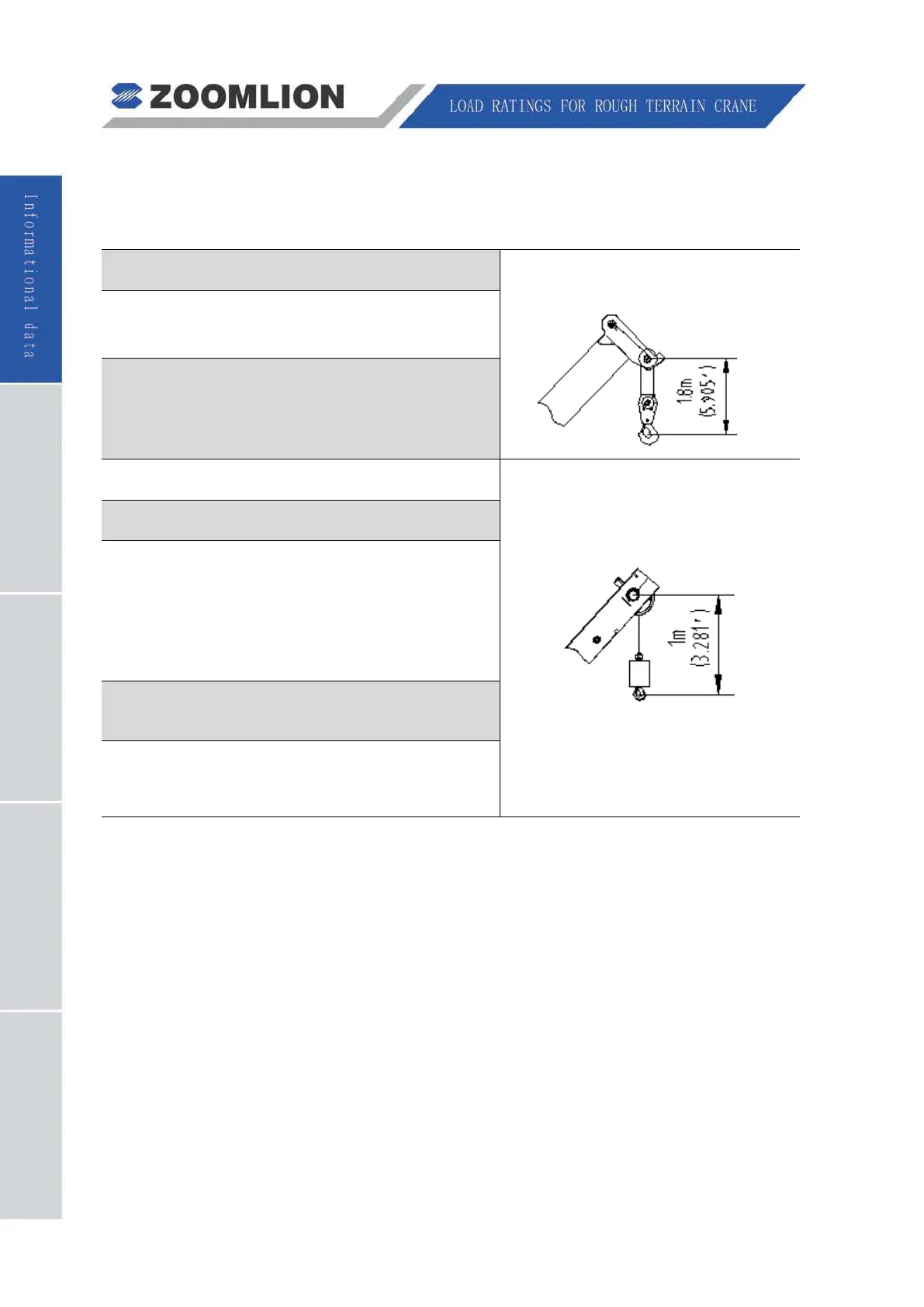

01 - 2 RT55 Rough Terrain Crane
1.3 WEIGHTS
Table 01 3 Weights
HOOK BLOCK WEIGHTS DIMENSIONS ARE FOR MAIN HOOK
AND AUXILIARY HOOKS.
Main hook weight: 650kg1433 LBS
Auxiliary hook weight: 120kg265 LBS
MACHINE EQUIPMENT
1. COUNTERWEIGHT: 5000kg1102 LBS
2. OUTRIGGER SPREAD: 6.9 m22.6 ft from
center of outrigger float to center of outrigger
float across the longitudinal axis of the machine;
6.9 m22.6 ft from center of outrigger float to
center of outrigger float across the transversal
axis of the machine
3. Powered boom length 10.8 m (35.43 ft) retracted
to 34 m (111.55ft) extended
4. Crane height 3.75m (12 ft-3.5 in), length 13.1m
(43 ft), width 3.3m (10 ft-10 in), wheelbase
3.95m (8 ft-6.6 in)
1.4 MAXIMUM OUTRIGGER FLOAT LOAD
When lifting loads shown in these capacity charts, no single float load will exceed 50000 kg
(88,000 lb).
