Zoomlion RT55 User Manual

RT55 Rough Terrain Crane 02 - 9

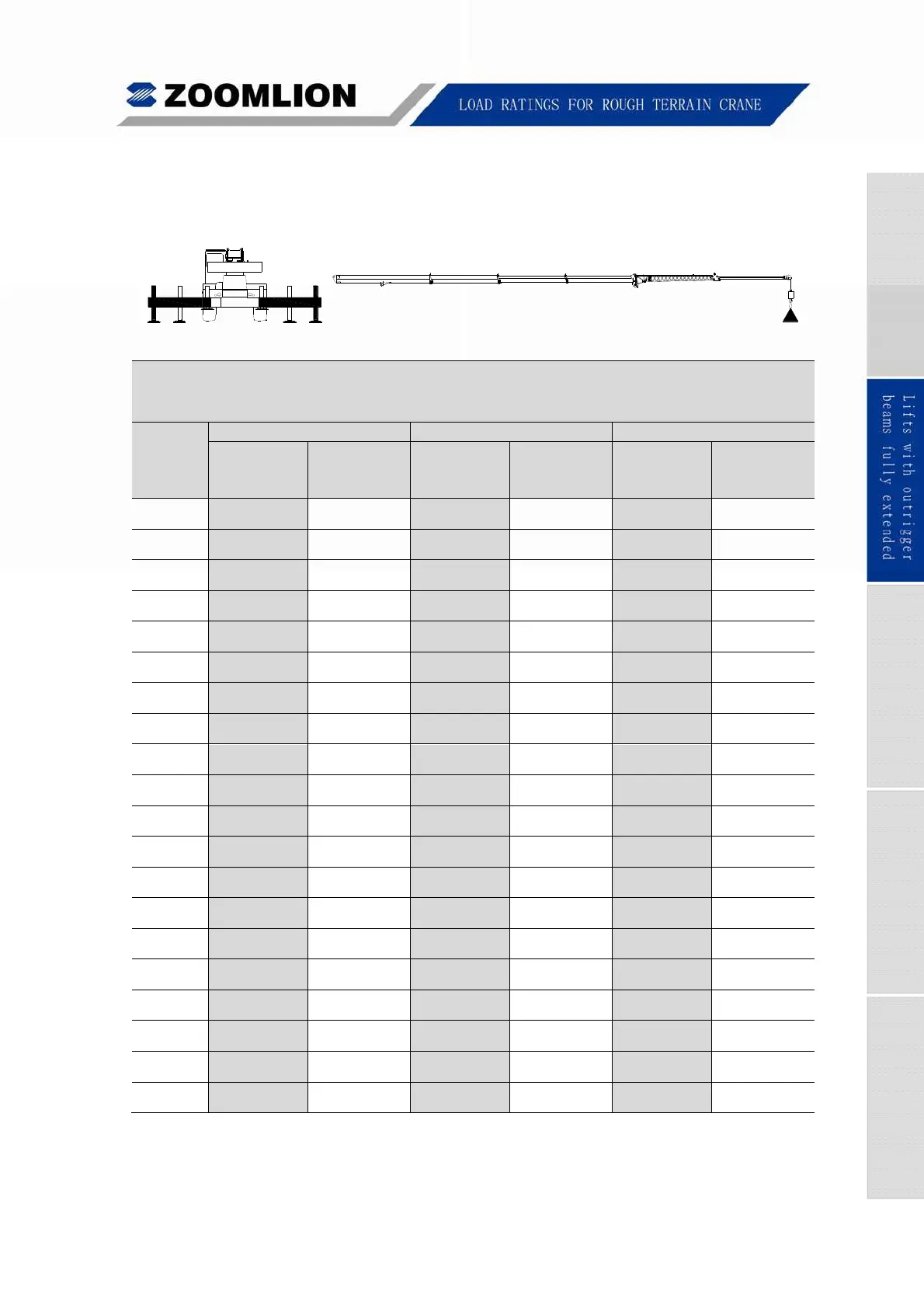

2.3 17 M JIB RATED LOADS
USE THIS CHART ONLY WHEN ALL OUTRIGGERS ARE FULLY EXTENDED
USE THIS CHART WHEN JIB SECTION 2 IS PULLED OUT FROM JIB SECTION 1
17 m jib rated loads - 360°
(Rated load unit: kg Working radius unit: mm)
Boom
Angle
(º)
0º Offset 20º Offset 40º Offset
Working
Radius
(mm)
360º (kg)
Working
Radius
(mm)
360º (kg)
Working
Radius
(mm)
360º (kg)
76 10338 3150 15384 1550 19357 1050
74 12058 2800 17022 1450 20858 990
72 13760 2550 18637 1400 22332 940
70 15444 2300 20227 1300 23777 940
68 17106 2150 21789 1250 25190 900
66 18744 1940 23323 1200 26569 900
64 20358 1850 24826 1150 27914 850
62 21944 1700 26296 1100 29223 850
60 23501 1600 27732 1050 30493 800
58 25027 1500 29131 990 31724 800
56 26520 1400 30493 940 32914 800
54 27978 1350 31815 940 34061 750
52 29400 1250 33096 900 35165 750
50 30784 1200 34334 850 36223 750
48 32127 1100 35527 850 37234 750
46 33429 990 36675 800 38198 750
44 34688 940 37776 800 39112 750
42 35902 850 38829 750 39977 700
40 37070 800 39831 700 40791 650
38 38190 750 40783 650 41552 650
