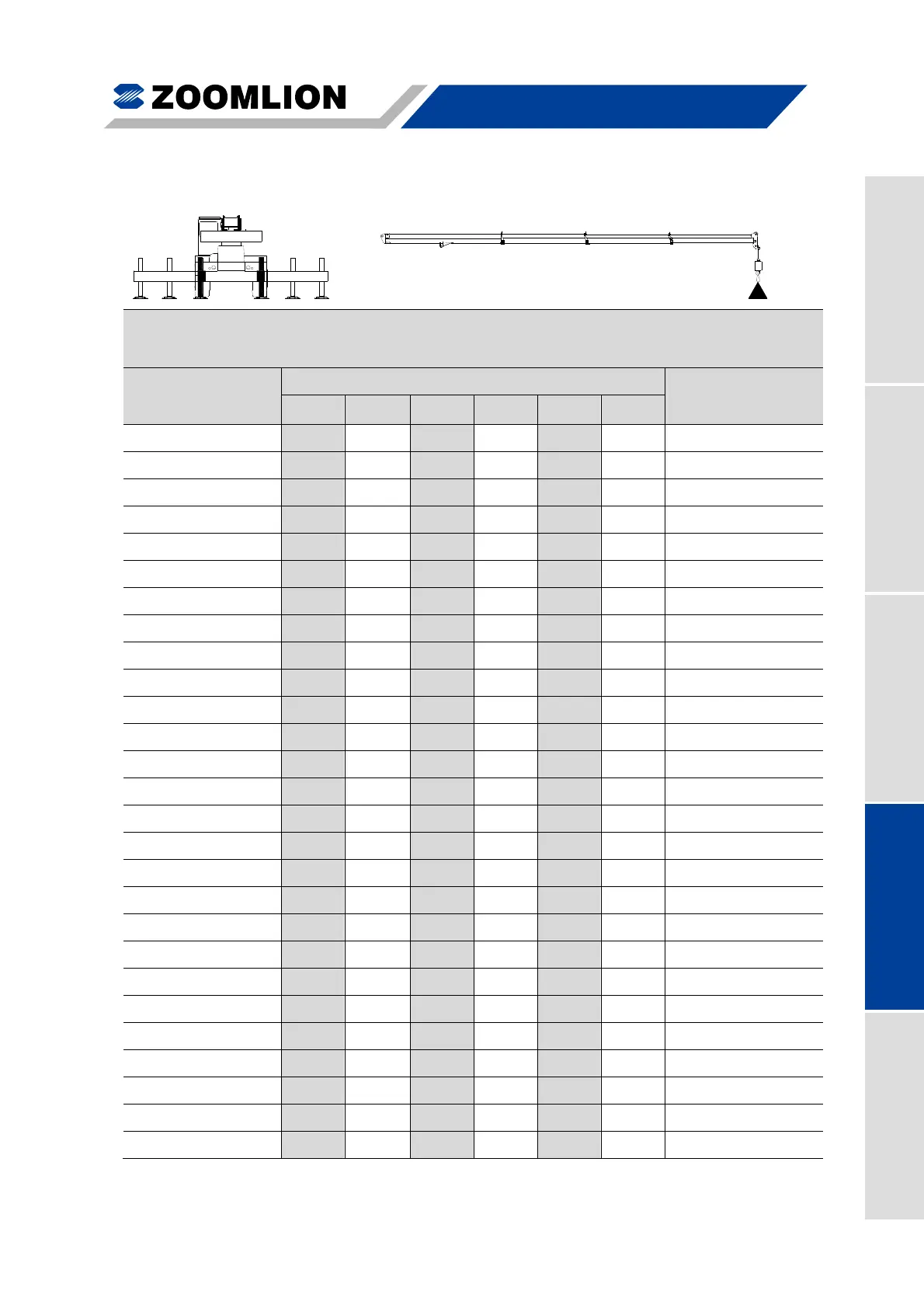

LOAD RATINGS FOR ROUGH TERRAIN CRANE
Lifts with outrigger
beams fully retracted
RT55 Rough Terrain Crane 04 - 1
4.1 MAIN BOOM RATED LOADS
USE THIS CHART WHEN ALL OUTRIGGERS ARE FULLY RETRACTED
Rated loads on outriggers are fully retracted - 360°
(Rated load unit: kg)
Working
Radius
(mm)
Boom Length (mm)
Working
Radius
(mm)
10800 15440 20080 24720 29360 34000
3000 33990 27200 3000
3500 25270 25920 3500
4000 19890 20470 4000
4500 16240 16770 16980 4500
5000 13570 14090 14290 5000
5500 11540 12050 12260 5500
6000 9950 10440 10650 10820 6000
6500 8670 9140 9350 9510 6500
7000 7620 8080 8290 8440 7000
7500 6750 7190 7400 7540 7520 7500
8000 6020 6440 6640 6780 6770 8000
8500 5390 5800 5990 6130 6120 8500
8830 5090 8830
9000 5240 5430 5570 5560 5690 9000
9500 4750 4940 5080 5070 5200 9500
10000 4320 4500 4640 4630 4760 10000
10500 3930 4120 4250 4250 4370 10500
11000 3590 3770 3900 3900 4030 11000
11500 3290 3460 3590 3590 3710 11500
12000 3010 3180 3310 3310 3430 12000
12500 2770 2920 3050 3060 3180 12500
13000 2550 2690 2820 2820 2940 13000
13461 2420 13461
13500 2480 2600 2610 2730 13500
14000 2290 2400 2410 2530 14000
14500 2110 2220 2230 2350 14500
15000 1940 2050 2060 2180 15000
