ZE205E/ZE230E OPERATION MANUAL
Basic operation technique of
the excavator

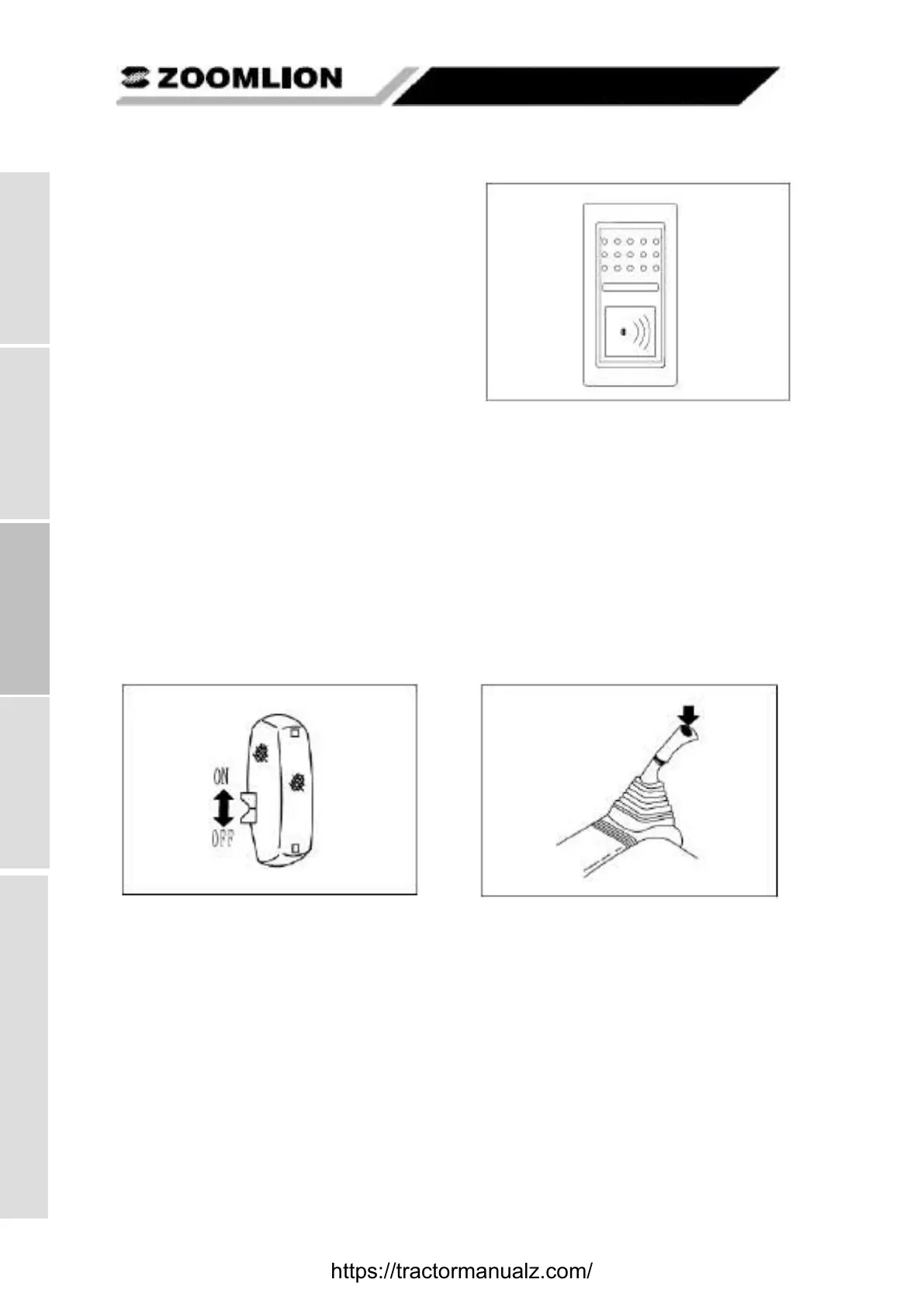

Switch (10) shown in Figure3-70 is used to control
the on-off of the sound and light alarm, as shown in
Figure 3-80.
Figure 3-80 Acoustic-optic alarm switches
3.3.3.11 Headlamp switch
Switch (11) shown in Figure 3-70 is used to turn on the two headlamps, and the icon is corresponding to
the work light, shown in Figure 3-75.
3.3.3.12 Interior light switch
The switch (12) shown in Figure3-70 is used to open the interior lights. ON position: light on; OFF
position: Light off. Please see Figure 3-81.
3.3.3.13 Horn switch
When you press switch button (9 )at the top of left lever, the horn sounds, as shown in Figure 3-82..
Figure 3-81 Interior light switch Figure 3-82 Horn switch
3.3.4 Instructions of the control devices
Layout of each control devices is shown in Figure 3-83.
