ZE205E/ZE230E OPERATION MANUAL
Basic operation techniques of
the excavator
Figure 3 - 83 levers
3.3.4.1 Safety locking lever
1. When leaving the cab, the safety locking lever must be firmly placed in the locked position, as
shown in Figure 3-84. If not, serious personal injury may be caused when the lever is moved by
mistake.
2. If the safety locking lever is not securely placed in the locked position, the lever may be moved,
resulting in a serious accident or injury.
Pay attention not to touch the lever for working
device when pulling the safety locking lever up.
Pay attention not to touch the lever for working
device when pushing the safety locking lever down.
The lever ① is a device for locking working device,
slewing, traveling and accessories (if any). Pull the lever
up to lock the device.
The locking lever is of hydraulic lock type, so even
if it is in the locked position, the levers for working
devices and the traveling lever can still be moved, but the
working device, traveling motor and slewing motor will not work.
1. Safety locking lever 3. Traveling lever
2. Left lever 4. Right lever

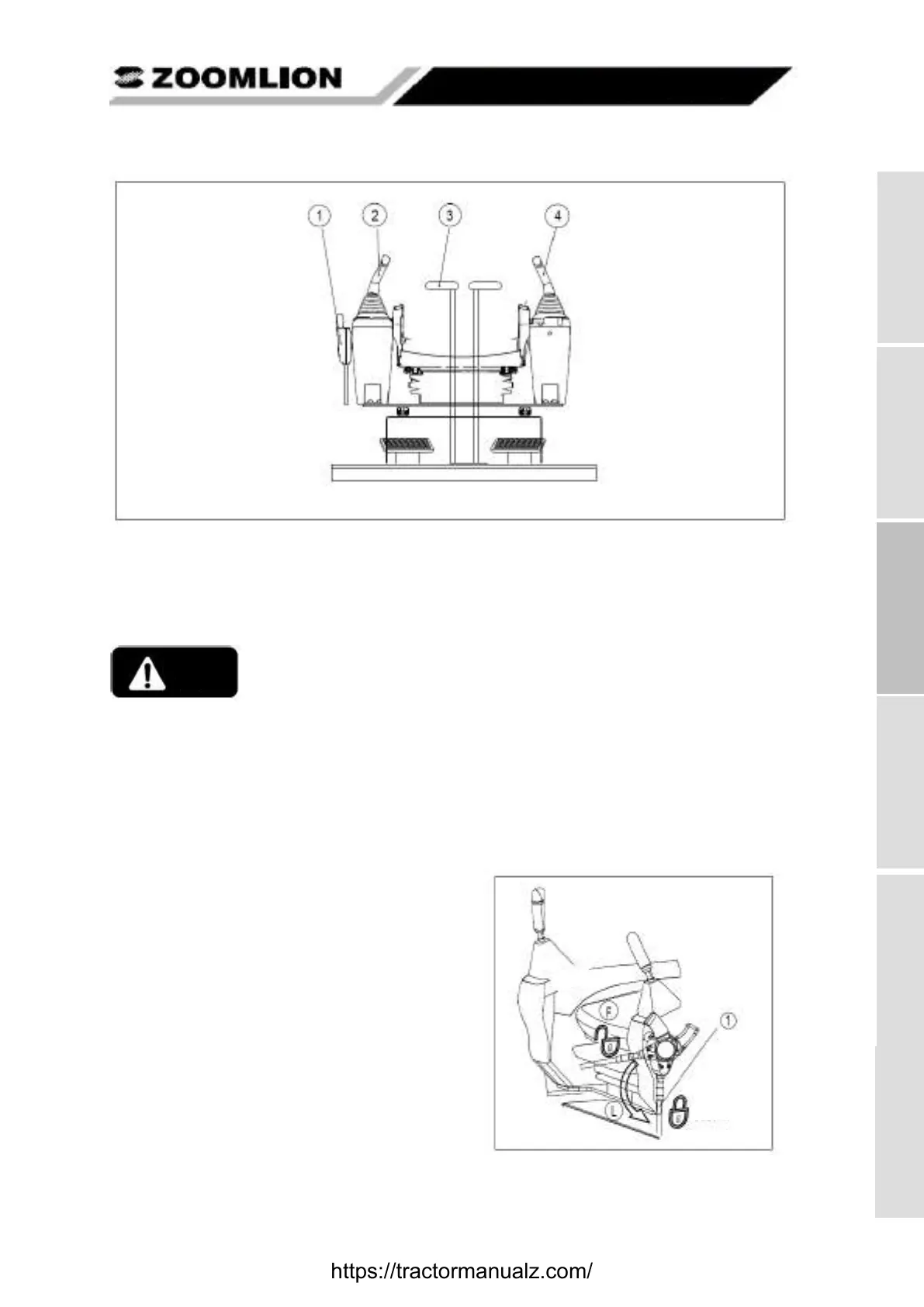

Figure 3-84 lever at the locked position
