Insert the four screws into the holes in the housing and tighten them slightly.

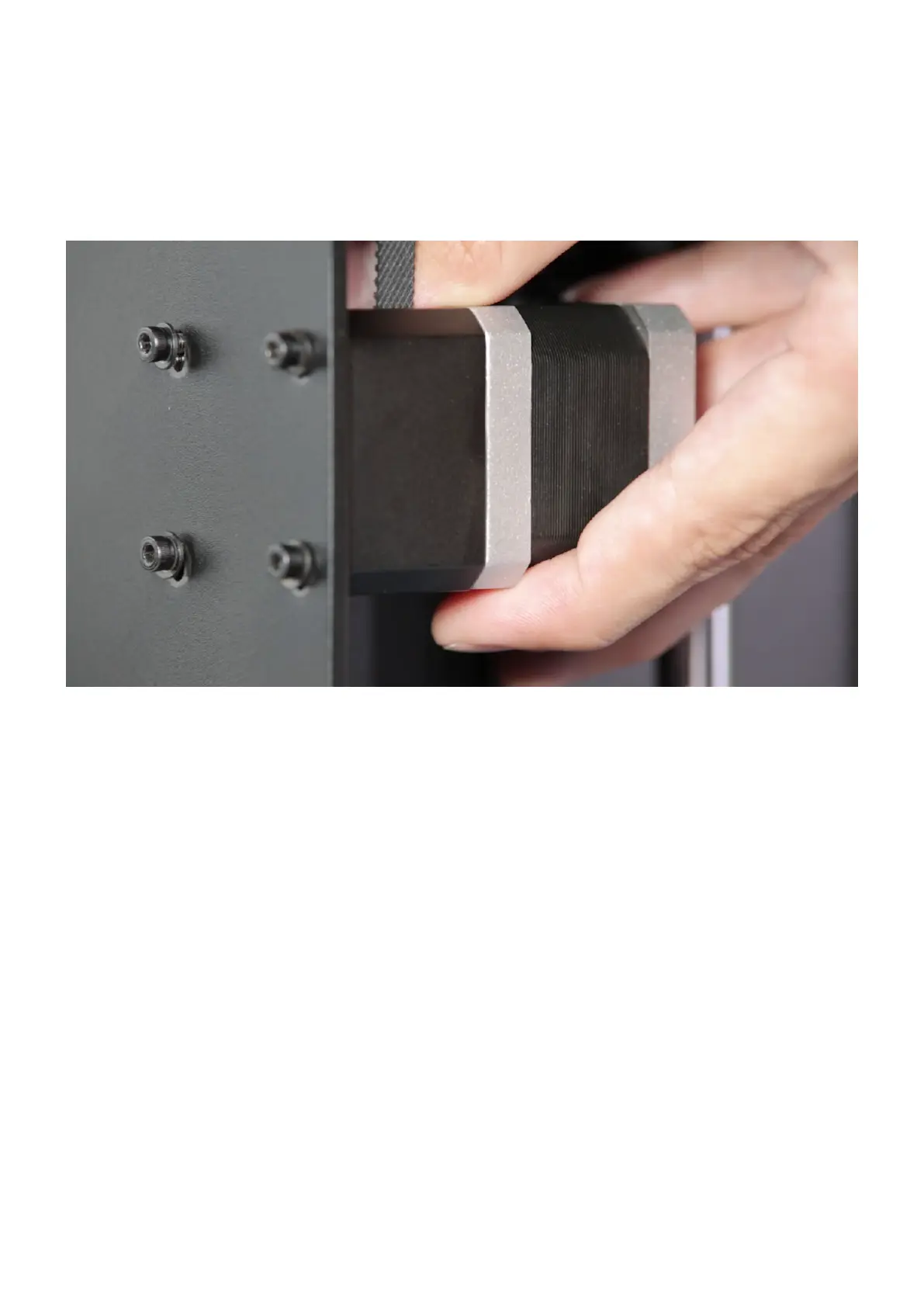

SECURING THE AXIS MOTOR
Press down the motor by hand to tense up the belt. Tighten the screws while the motor
is still being pressed down.
