zortrax M Series Manual

Lower Long Belt Replacement

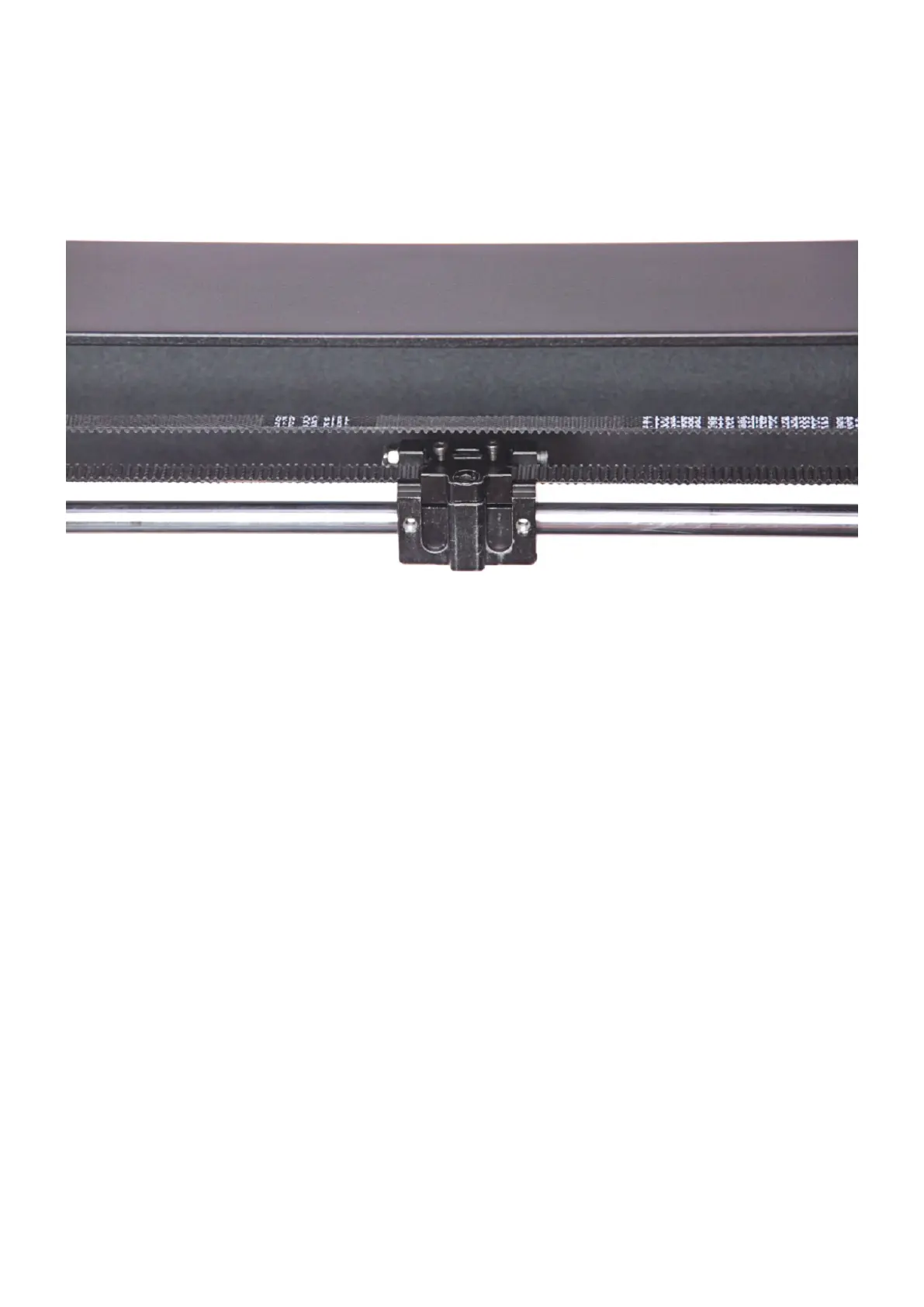

UNSCREWING THE BELT TENSIONERS
Unscrew the screw that secures the belt tensioner on the belt to be replaced and remove
the belt from the block.
The Y axis belt tensioners are placed on top of the Y axis blocks, whereas the X axis
belt tensioners are placed on the bottom of the axis blocks.
LOOSENING THE SCREWS ON THE SELF-ALIGNING BEARINGS
