quick start guide

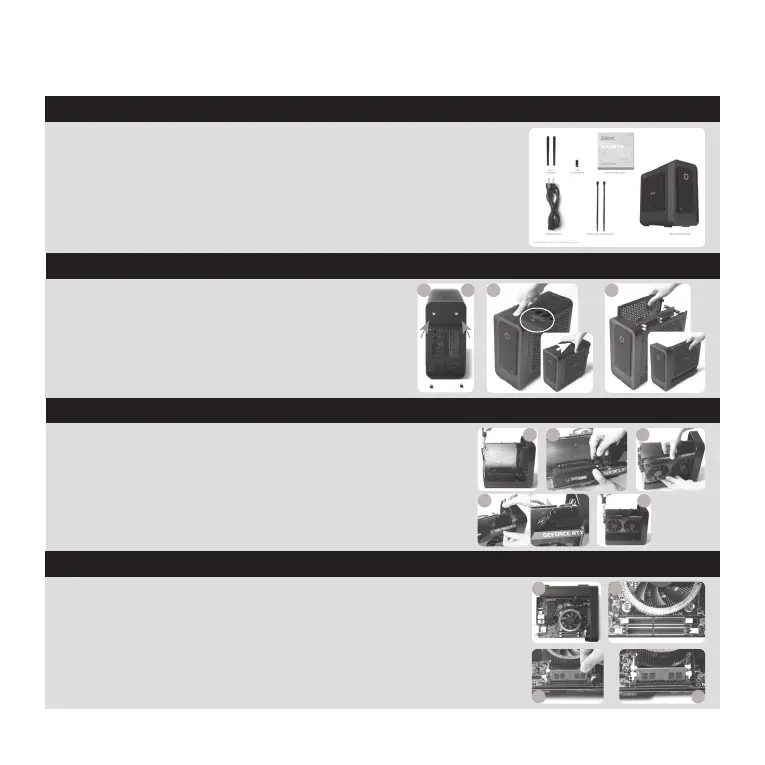

PACKAGE CONTENTS
CUSTOMIZING YOUR ZOTAC ZBOX
• 1 x ZOTAC ZBOX
• 1 x Power Cord
• 2 x Nylon Cable Tie (optional)
• 1 x Warranty Card
• 1 x User Manual (optional)
• 1 x USB flash drive with Windows drivers
• 2 x Antenna
1. Lay the ZOTAC ZBOX on a flat surface.
2. Locate the two thumb screws and remove.
3. Press down on the arrow of top cover and
remove the top cover o the ZOTAC ZBOX in the
direction of the arrow.
4. Push up and remove the two side covers.
INSTALLING MEMORY MODULES
1. Lay the ZOTAC ZBOX on a flat surface with the right
side upwards.
2. Gently push down on the memory retainer clips to the
open position.
3. Insert a SO-DIMM memory module into the slot.
4. Gently push the SO-DIMM memory module down into
the slot until the retainer clips lock into place.
INSTALLING GRAPHICS CARD (OPTIONAL)
1. Remove the screw from the PCB bracket.
2. Connect the cables to the graphics card.
3. Insert the graphics card to the slot.
4. Bind the cables to the small bracket with a nylon
cable tie.
5. Install the screw securing the graphics card.
1 2 3
4 5
1 2
3 4
1 2 3 4
