Zotac ZBOX Quick Start Guide

2

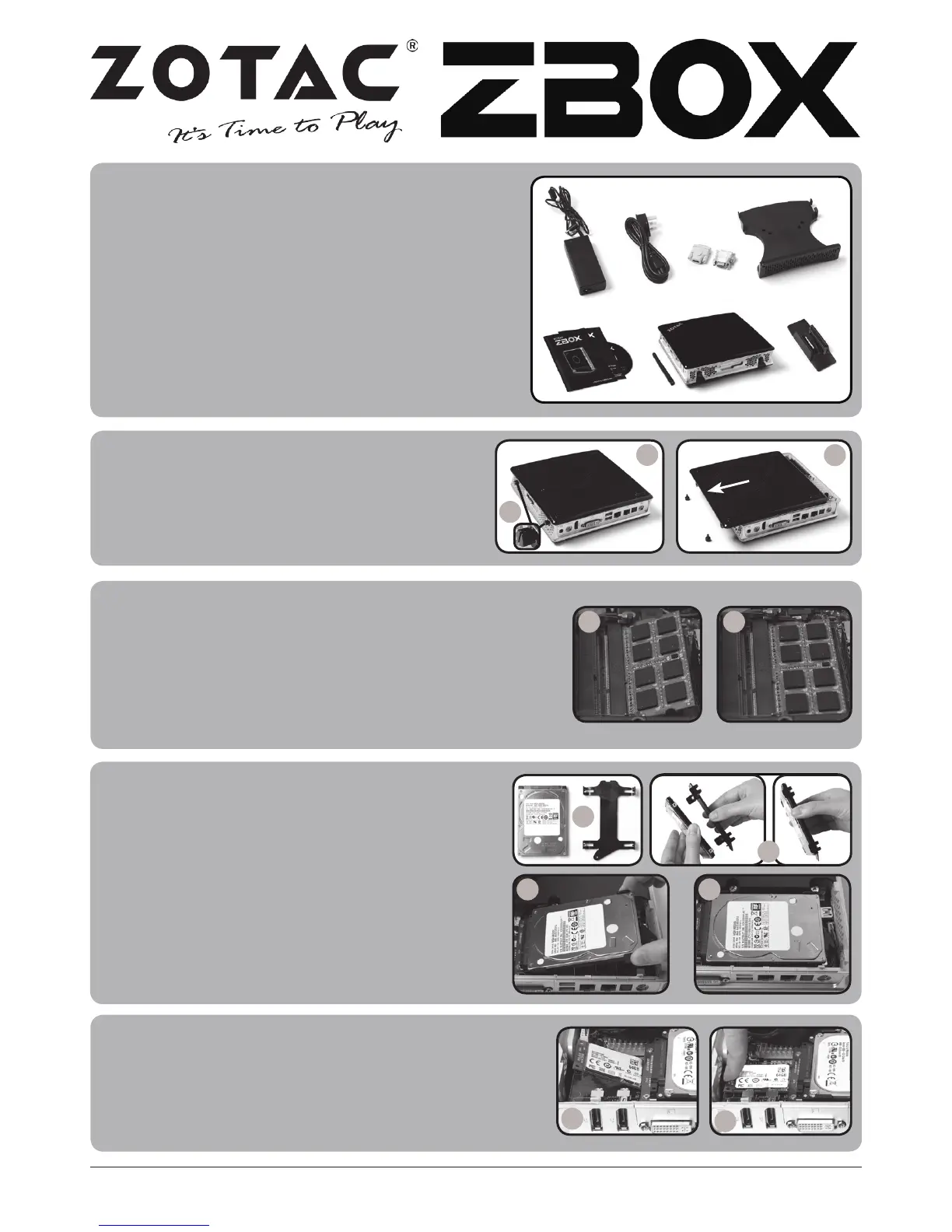

Package contents
• 1 x ZOTAC ZBOX
• 1 x Stand
• 1 x VESA mount
• 1 x AC Adapter
• 1 x Power Cord
• 1 x Warranty Card
• 1 x User Manual
• 1 x Driver disc
• 1 x DVI-to-VGA adapter
• 1 x DVI-to-HDMI adapter
• 1 x antenna
Installing a hard disk
1. Locate the 2.5-inch SATA hard disk and the
hard disk bracket.
2. Install the hard disk to the hard disk bracket.
3. Insert the hard disk into the slot at a 45 degree
angle and gently slide into the connector.
4. Reinstall the thumb screw.
Installing memory modules
1. Locate the SO-DIMM memory slots and insert a
SO-DIMM memory module into the slot at a 45 degree
angle.
(Note: If the ZOTAC ZBOX has two SO-DIMM slots insert a
module into the lower slot rst)
2. Gently press down on the memory module until it locks
into place by the arms of the memory slot.
Customizing your ZOTAC ZBOX
1. Lay the ZOTAC ZBOX on a at surface
with the rubber feet facing upwards.
2. Locate the two thumb screws and remove.
3. Slide the cover off the ZOTAC ZBOX in
the direction of the arrow.
2
1
3
21
1
2
3 4

Installing mSATA SSD module
1. Locate the mSATA SSD slot and insert an
mSATA SSD module into the slot at a 45
degree angle.
2. Gently press down on the mSATA SSD module
until it locks into place by the arms of the slot.
2
1

Zotac ZBOX Specifications

General

Processor cache	2 MB
Processor cores	2
Processor model	E-350
Processor family	AMD E
Processor cache type	L2
Processor manufacturer	AMD
Number of processors installed	1
Product type	Mini PC
Motherboard chipset	AMD M1
Memory slots	2x SO-DIMM
Internal memory	2 GB
Memory clock speed	1066 MHz
Internal memory type	DDR3-SDRAM
Maximum internal memory	8 GB
Memory layout (slots x size)	1 x 2 GB
HDD speed	5400 RPM
Optical drive type	Blu-Ray DVD Combo
Card reader integrated	Yes
Total storage capacity	250 GB
Compatible memory cards	Memory Stick (MS), MMC, MS PRO, SD, SDHC, xD
CD read speed	24 x
Networking features	Gigabit Ethernet
Discrete graphics card model	-
On-board graphics card model	AMD Radeon HD 6310
On-board graphics card family	AMD Radeon HD 6000
Display included	No
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Firewire (IEEE 1394) ports	0
Wi-Fi standards	Wi-Fi 4 (802.11n)
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Product color	Black, Silver

Weight and Dimensions

Depth	40 mm
Width	280 mm
Height	187 mm
