4.1.4 ZXR10 8902E Appearance
ZXR10 8902E appearance is shown in Figure 4-7.

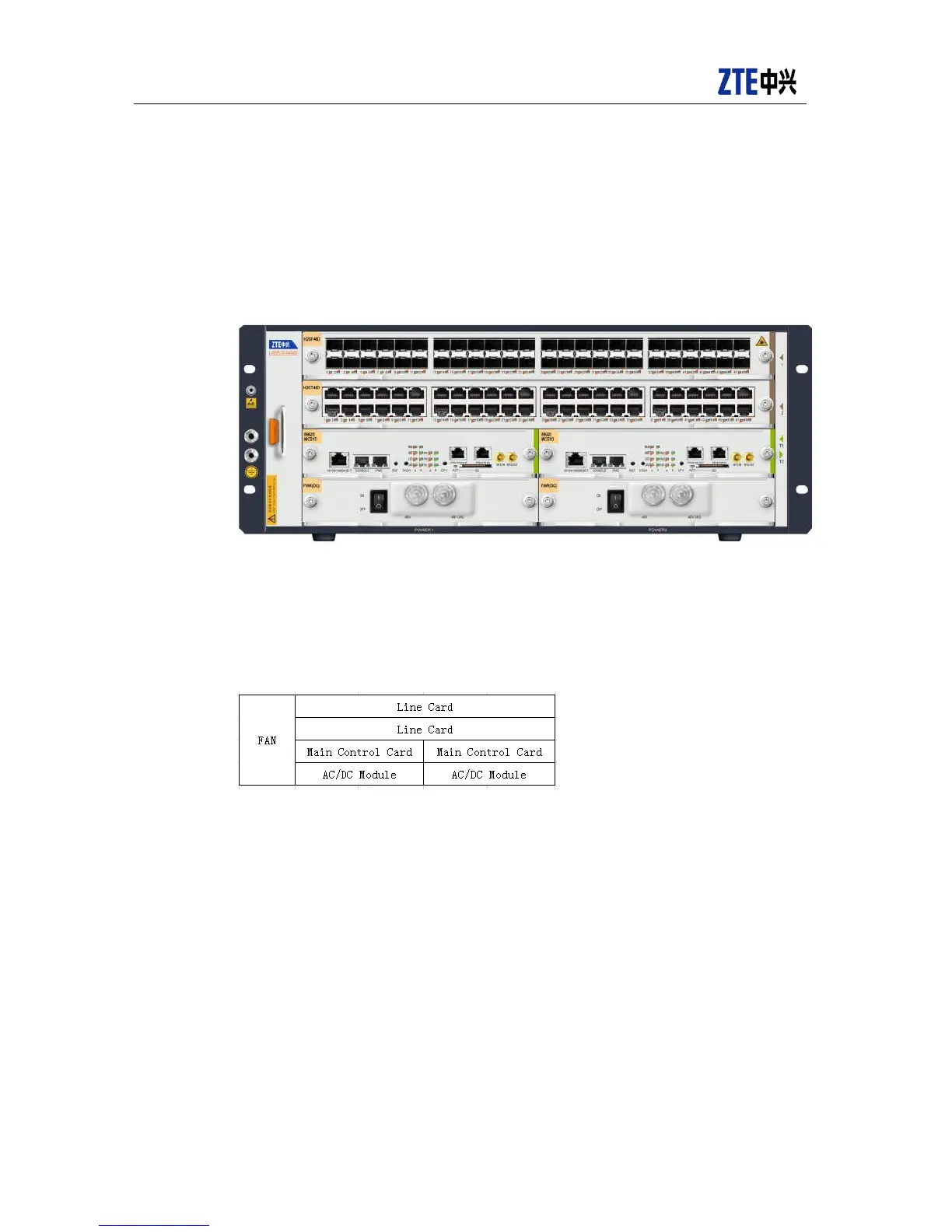

Figure 4-7 ZXR10 8902E appearance
ZXR10 8902E structure is shown in Figure 4-8.
Figure 4-8 ZXR10 8902E structure
4.2 Hardware Architecture
This section introduces the system hardware and working principle of ZXR10 8900E
series core switch and gives users an understanding of the system. This section covers
overall system architecture, functional modules, card principle diagram and working
principles.
