ZXRAN V9200 Product Description

ZTE Confidential & Proprietary 23

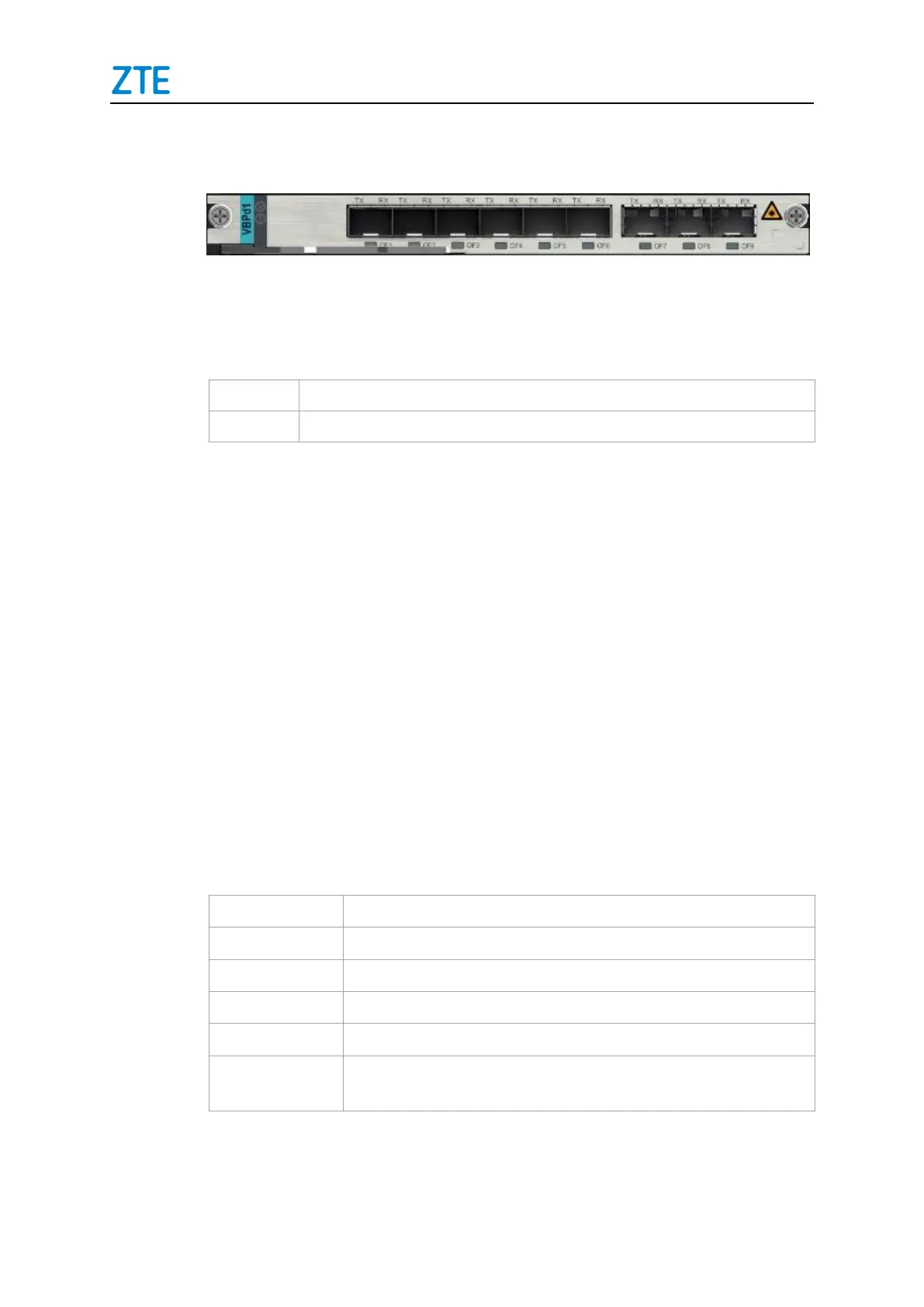

Figure 2- 12 VBPd1 Panel

The panel interfaces are specified in Table 2- 16.

Table 2- 16 VBPd1 Panel interfaces

Interface

Description

OF1-OF9

10/25 Gbps SFP+/SFP28 interface, used for connecting to RRUs/AAUs

The main functions of VBPd1 are:

 Processes physical layer protocols.

 Supports MAC, RLC and PDCP protocols.

 Provides IQ data mesh network between all baseband boards.

 Provides CPRI/New CPRI interfaces.

2.2.2.7 VBPd2

VBPd2 is a baseband processing board for 4G/5G multi-mode, whose capacity is

specified in Table 2- 17.

Table 2- 17 VBPd2 Capacity

Mode

Capacity

LTE

24 20MHz Cells, DL 3.6 Gbps/UL 1.8 Gbps

TDD LTE MM

12 32T32R/64T64R 20MHz Massive MIMO Cells

TDD NR

6 8T8R/32T32R/64T64R 100MHz Cells, DL 24 Gbps/UL 3.6 Gbps

FN dual-mode

9 FDD LTE Cells + 9 FDD NR Cells

TN dual-mode

6 32T32R/64T64R TDD LTE Cells + 3 32T32R/64T64R 100MHz

TDD NR Cells
