ZXRAN V9200 Product Description

34 ZTE Confidential & Proprietary

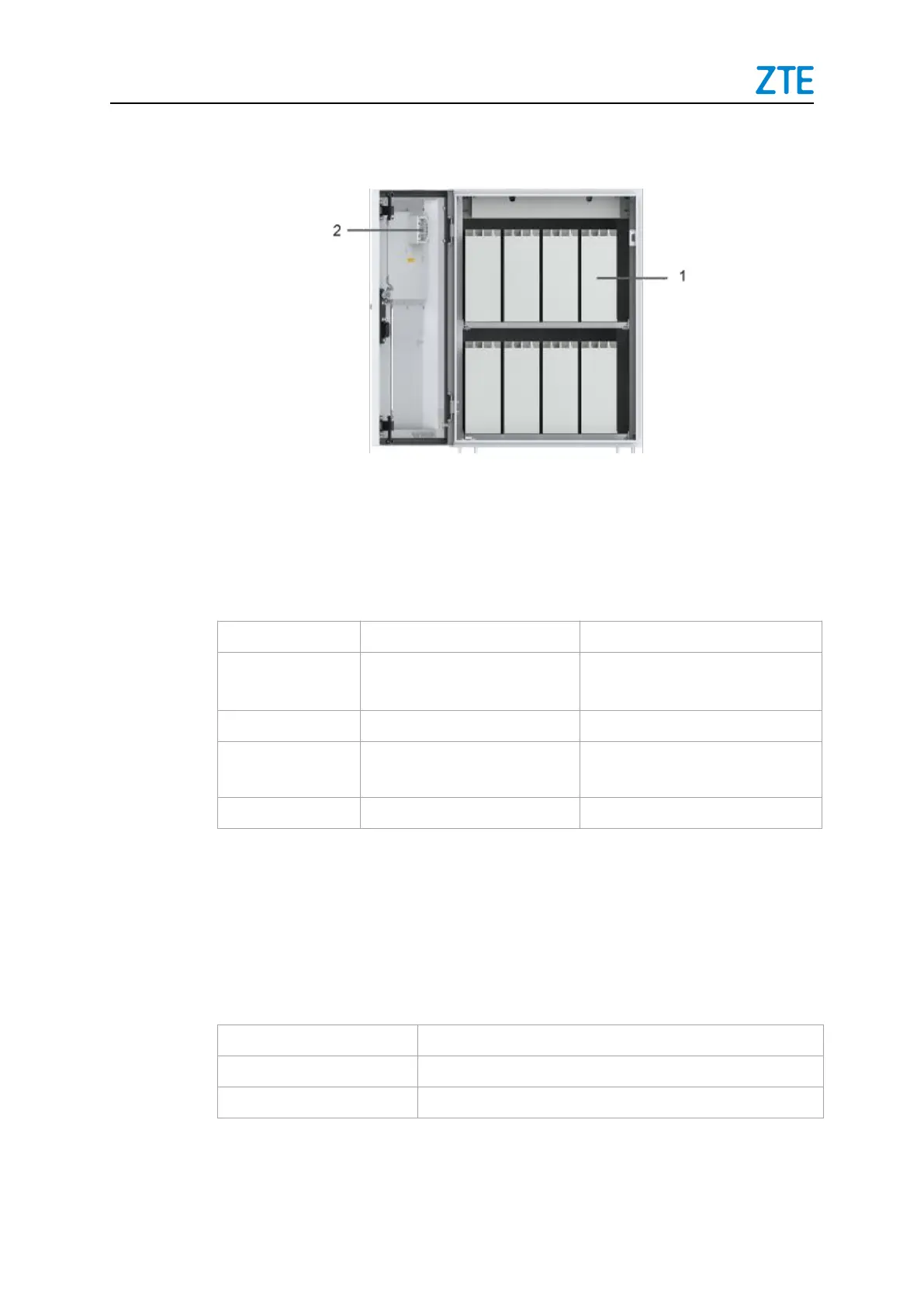

Figure 4- 4 Internal Structure of PC9910A

1. Battery 2. Fan

The physical specifications of the VC9910A and PC9910A are specified in Table 4- 1.

Table 4- 1 Physical Specifications of VC9910A and PC9910A

Item

VC9910A

PC9910A

Dimension (mm)

(H x W x D)

800 x 600 x 600

Weight (kg)

55 (Empty)

30 (Without batteries)

Inner Space

13U

2×150AH AGM/2×135AH GEL

batteries

Color

Grey

Note: If needed, a top cover and a cabinet base are configured with respectively 15mm x 600mm x

600mm/2.5kg and 200mm x 600mm x 600mm/10.5kg in dimension/weight.

The average power consumption of BS9910A is specified in Table 4- 2.

Table 4- 2 Average Power Consumption of VC9910A (25°C)

Cabinet

Average Power Consumption (W)

VC9910A

60W

PC9910A
