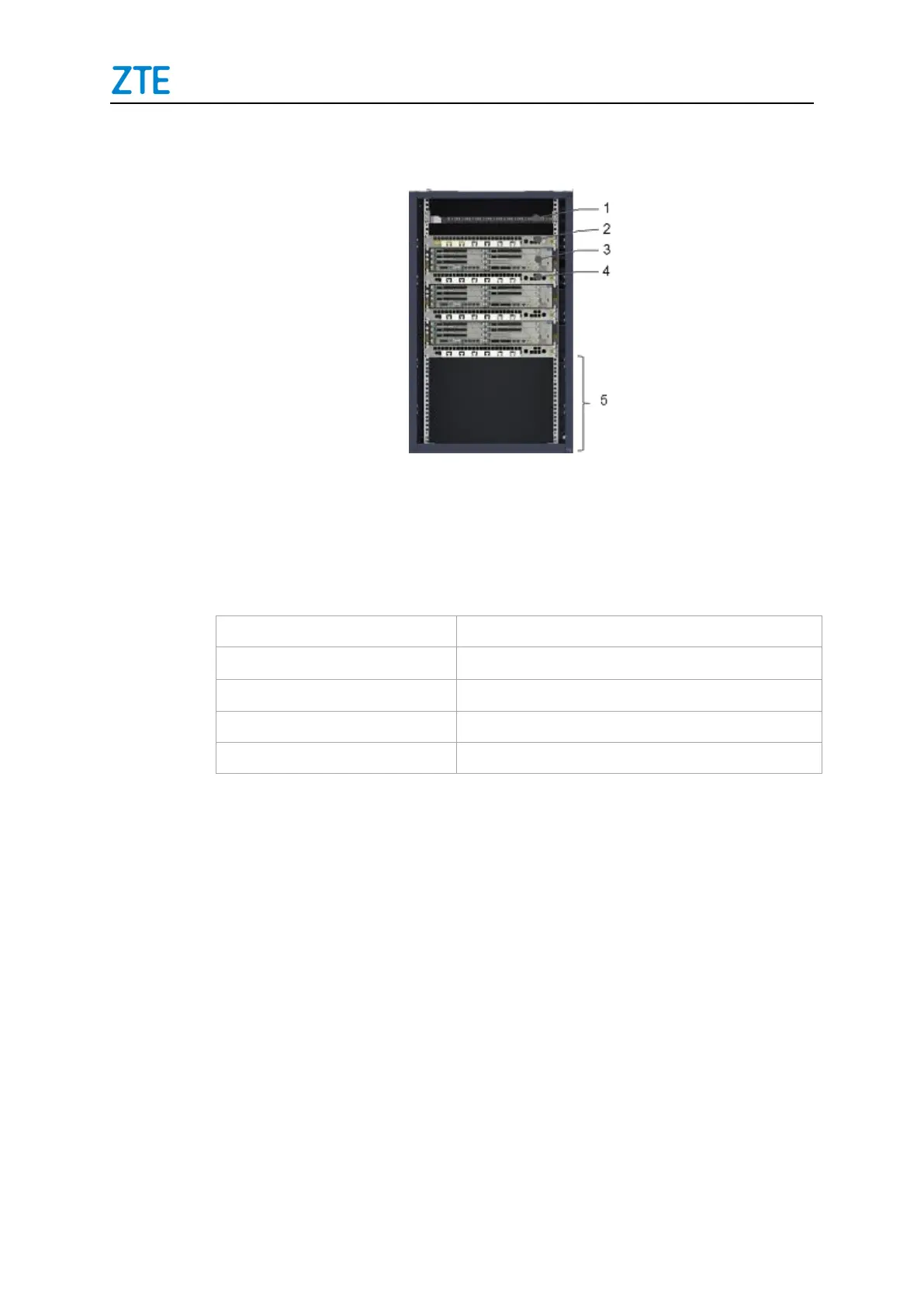

Figure 4- 10 Internal Structure of VC9811
1. DCPD 2. Power Division Unit 3. V9200 4.Cabling and Ventilation Subrack
The physical specifications of the VC9811 are specified in Table 4- 7.
Table 4- 6 Physical Specifications of VC9811
Item
Description
Dimension (mm) (H x W x D)
950 x 600 x 600
Weight (kg)
36 (Empty)
Inner Space
20 U
Color
Dark blue
4.5 Indoor Cabinet VC9182
When the indoor space is narrow and tight, ZXRAN VC9182 is a best choice for the
operator, not occupying floor installation area. VC9182 is usually mounted vertically on a
wall in an equipment room for holding ZXRAN V9200, illustrated in Figure 4- 11. It
contains 1–2 DCPDs and 1 V9200.
