14. Controlling the pedal assistance (Green 1.0 / Z101)
 Battery – overview and functions

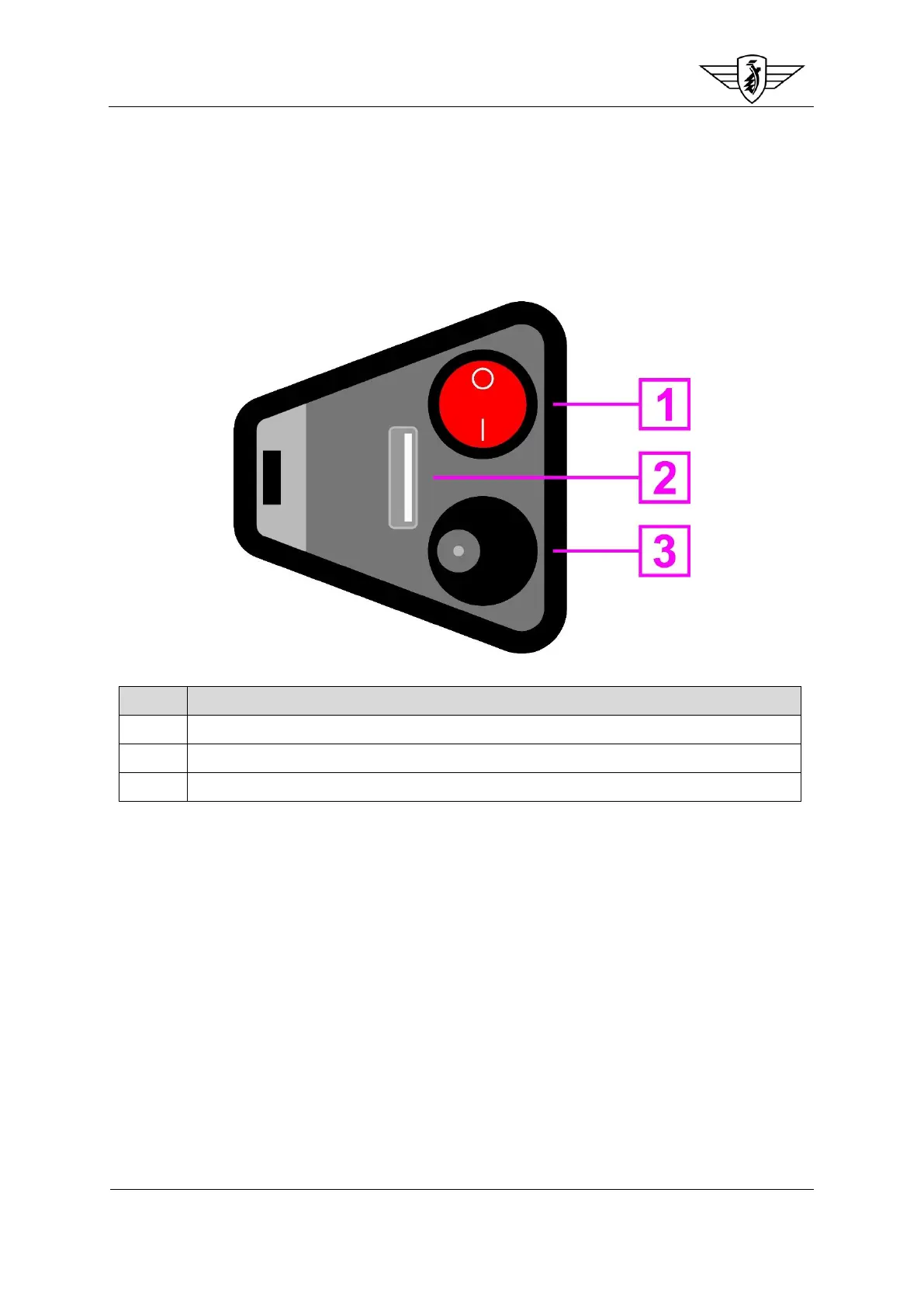

The following illustration shows the connections and operating functions on your battery.
They can be found by pulling off the rubber cover on the left side of the bike frame (looking in the
direction of travel) or by pulling the battery completely out of the frame holder.
No.
Meaning
1
Toggle switch to switch the battery on and off
2
USB port 5V / 1A
3
Battery charging connector coaxial 2.1 x 5.5 mm / 36 – 42V / 2A max.
