Bit format: start, 8bit, stop (no parity)
Signals: RXD, TXD, RTS, CTS, GND
Configuration Jumpers

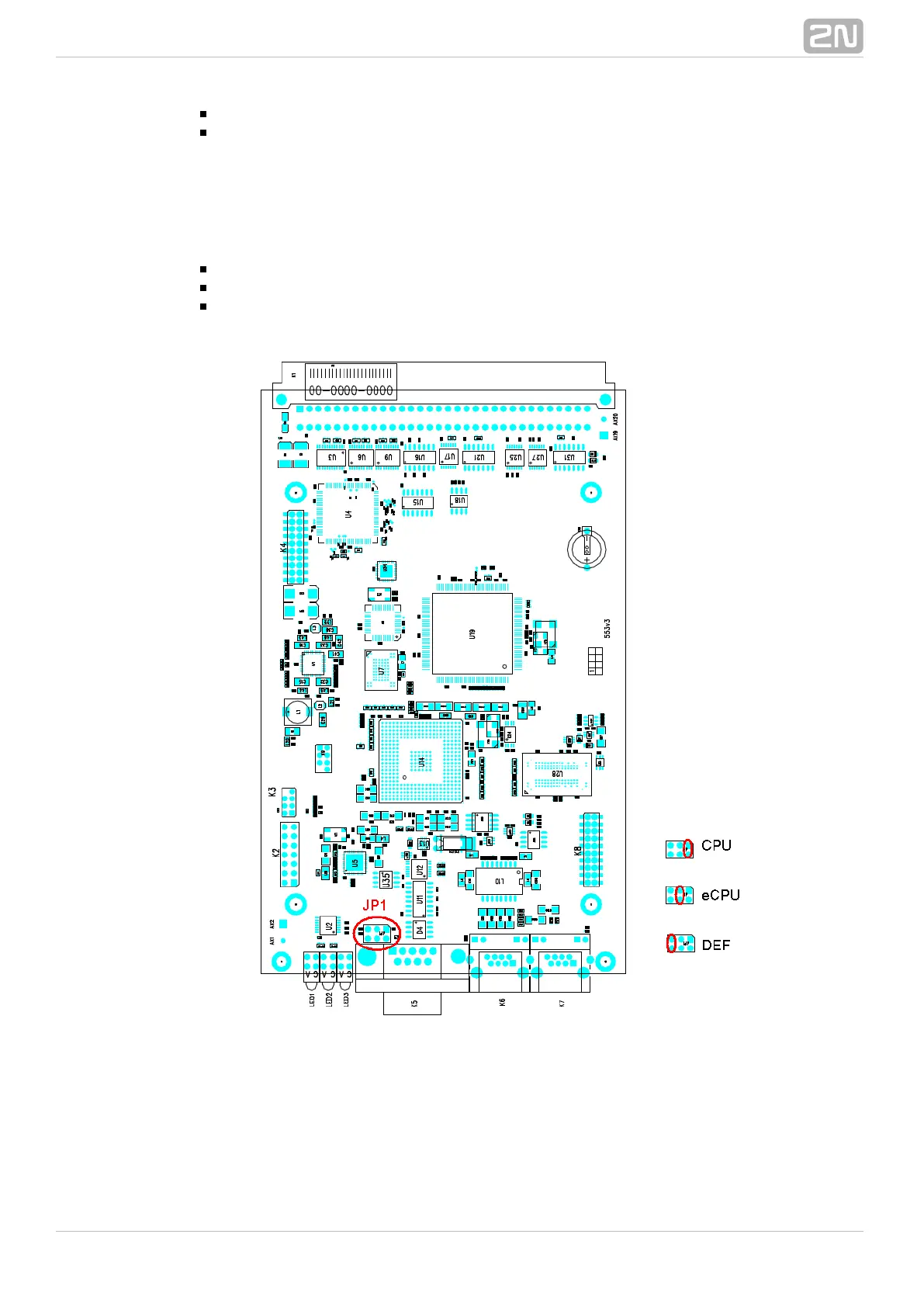

The figure below shows the CPU configuration jumper. The JP1 jumper can be
connected in one of the following three positions.
CPU – COM1 communication port is active for communication with the CPU.
eCPU – COM1 communication port is active for communication with the eCPU.
DEF – used for CPU default reset.
Figure: Configuration Jumpers
