Basic CPU with AUX interface
The basic CPU board with AUX interface carries the main CPU, which supports all basic
features of the gateway (web interface, support, SMS messaging,2N SIM Star
®
monitoring). Moreover, can be made via the AUX interface.test calls

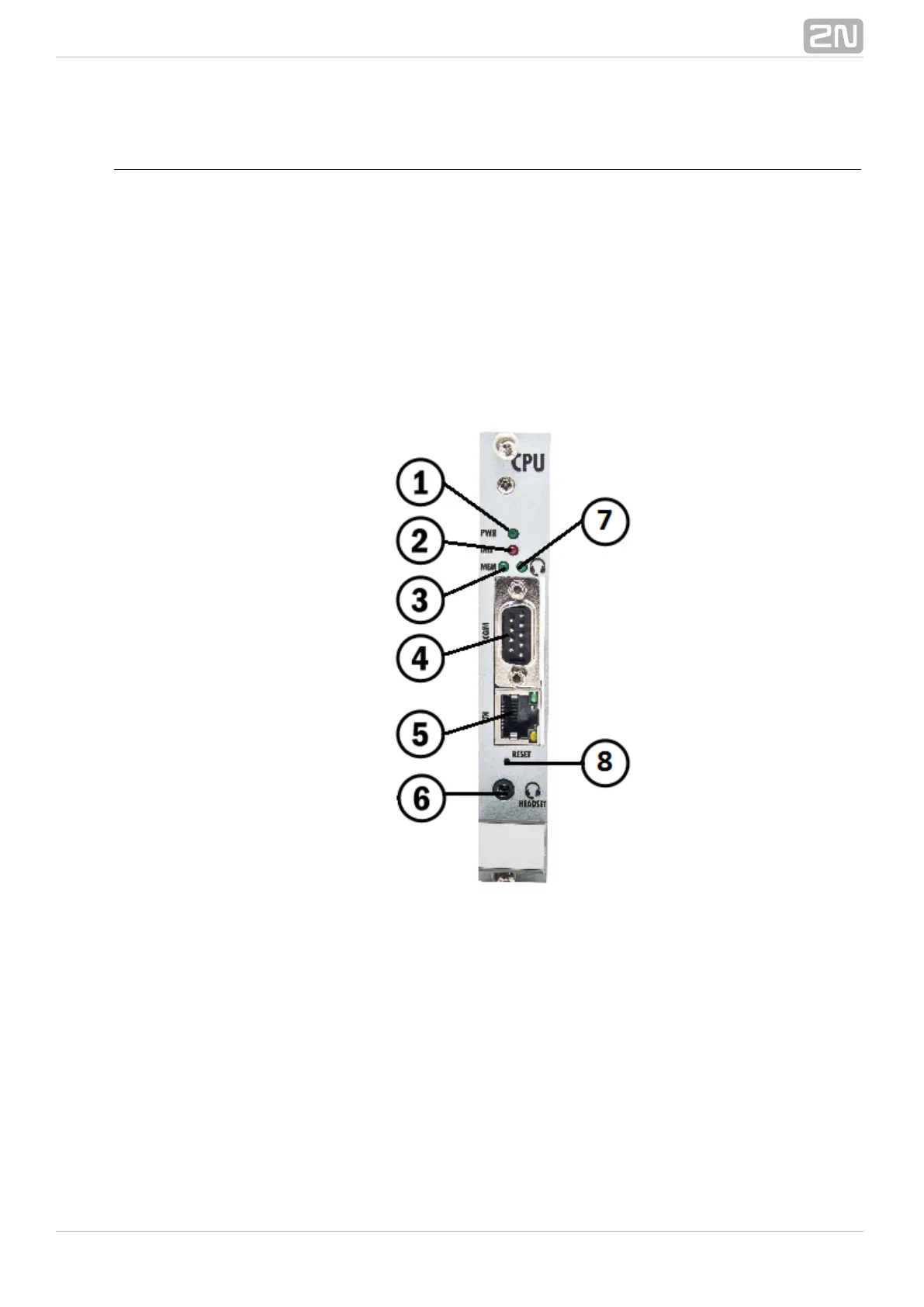

Board Description
The CPU board contains a processor system controlling the whole system. The board is
designed on a 4-layer PCB of the size of 160x100mm. A simple COM1 serial interface,
an Ethernet connector (100Base-T), AUX interface for jack 3.5mm and 4 board status
LED indicators are located on the front panel.
Indicates board supply; the LED is green if the gateway is powered on and shows
no malfunction.
Indicates board initialisation or malfunction.
Indicates CDR/SDR memory (not shining = empty; flashing 1:1 = 50% full
memory; shining = 100% full memory).
Serial interface of the basic CPU.
10BaseT Ethernet connection of the basic CPU.
AUX interface for Jack 3.5 mm
Indicates call via AUX interface.
Reset button.
