442N TELEKOMUNIKACE a.s., www.2n.cz
®

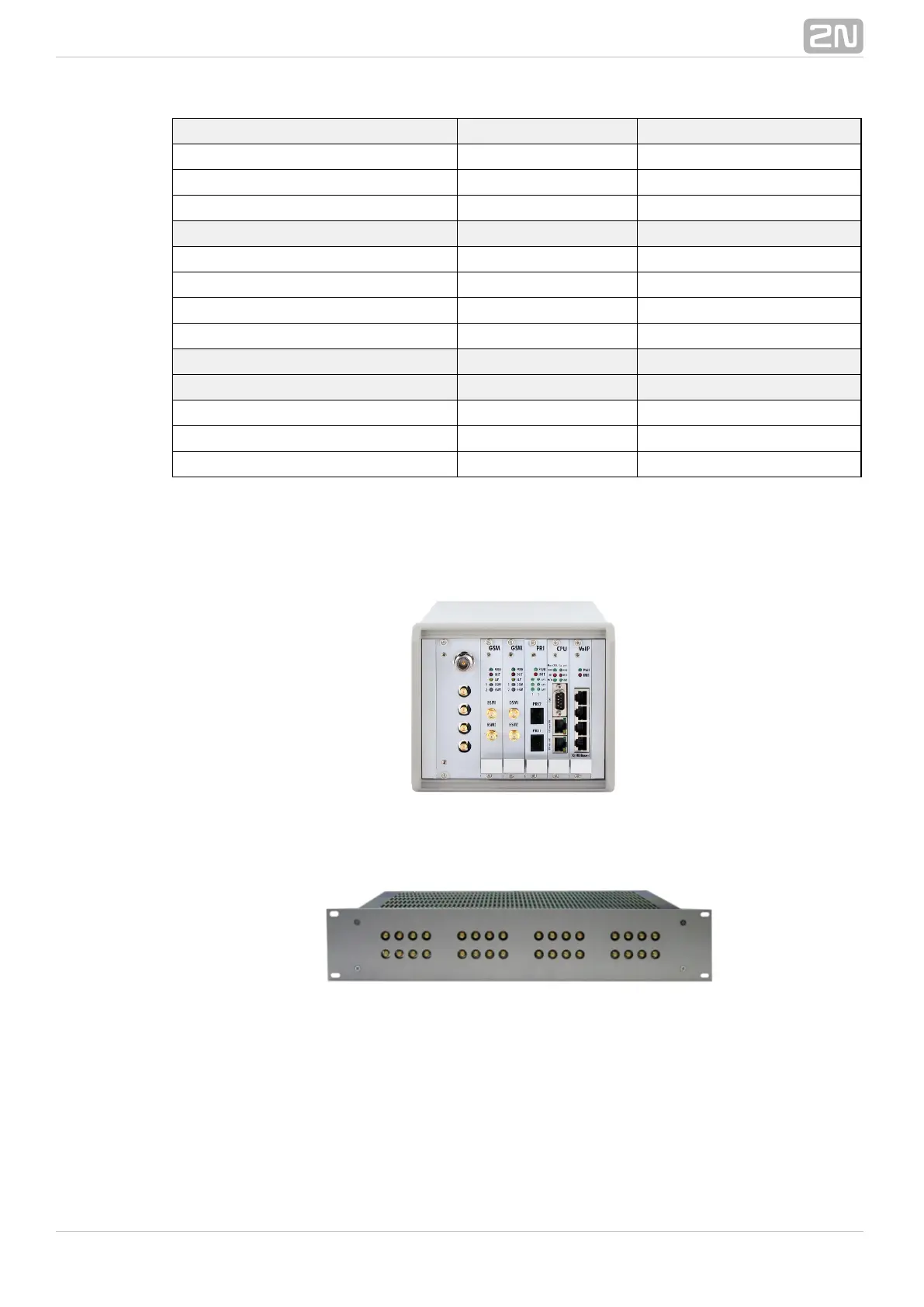

Parameters Value Note
Connector type
Input connector SMA type, female
Output antenna connector N type, female
RF parameters
Impedance 50 Ohm
Frequency 850 – 2100 MHz
Insertion loss < 8, 11, 15 dB According to configuration
Isolation between two channels > 20 dB
Output overvoltage protection
Device type Gas surge arrester
Protected voltage level 90 V
Peak current 10 KA
Insertion loss 0.2 dB
Table: Technical Parameters of Antenna Splitters
Splitter Examples
Figure: Internal Antenna Splitter for 2N BlueTower
®
Figure: External Antenna Splitter for 2N StarGate
®
