360_VisionDome_Int_&_Ext_Inst_manual_V2.03_2006-03-14.doc Page 18 of 25
VisionDome Installation Manual
©360 Vision Technology Ltd Version 2.03
14. External VisionDome Soffit Mount Installation (optional)
(The Soffit adaptor is an optional extra accessory part)
NB :- When Handling the VisionDome, handle carefully so that the main electronics and
motor mechanism are not damaged
For Soffit installations, please use the Soffit adaptor and Gasket.

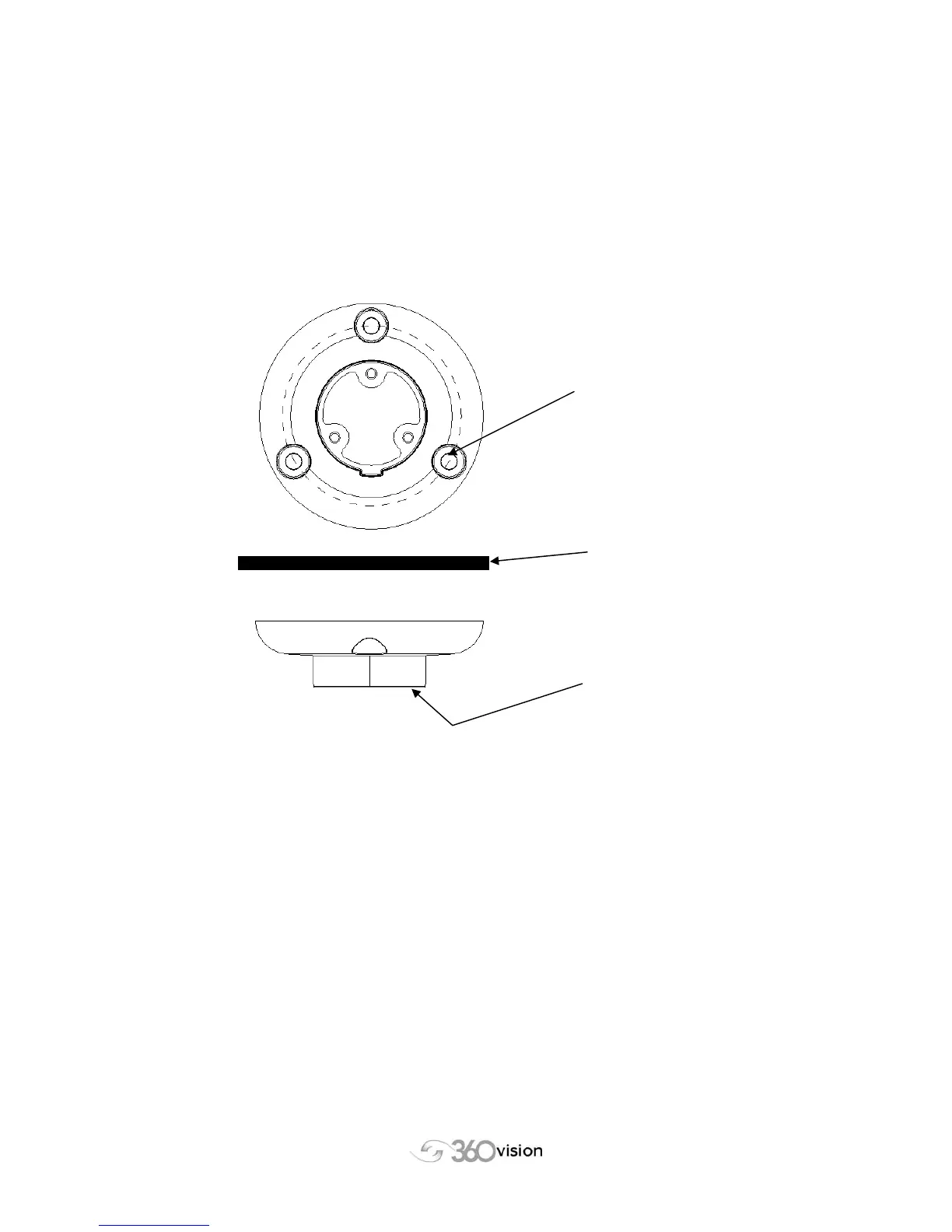

Mounting Soffit Adaptor for Soffit & Pole Mounted External Domes
GASKET
3 HOLES ON 68mm PCD
USE THESE HOLES FOR
FASTENING SOFFIT
ADDAPTOR TO CEILING.
AFFIX TOP COVER HERE
USING 3 SCREWS
