360_VisionDome_Int_&_Ext_Inst_manual_V2.03_2006-03-14.doc Page 12 of 25
VisionDome Installation Manual
©360 Vision Technology Ltd Version 2.03
10. Internal Corner Mount Installation (optional)
(The Internal Corner Mount Adapter is an optional extra accessory part)
For Internal Corner Mount please fasten the adapter to the corner of the walls using suitable
fixings, then follow the instructions for wall mounting.

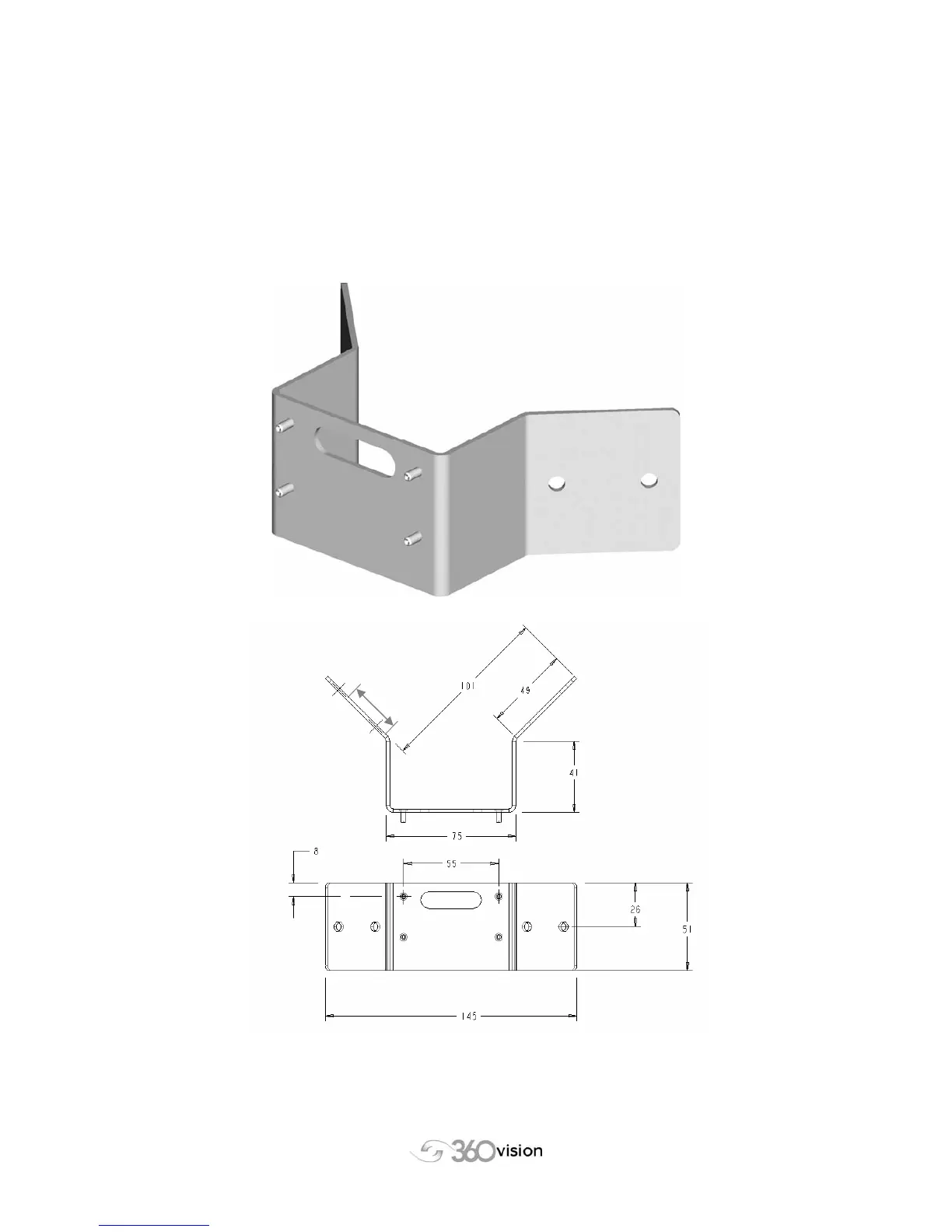

An internal corner mount adapter is shown below.
Dimensions
3 0
