EXTERNAL VisionDomes – Video Signal
18. Adjustment of Gain and Lift
Before proceeding to Programming, please ensure the video signal is acceptable.
The VisionDome is able to be remotely adjusted for Gain and Lift when video signals are
compromised due to poor / old cabling or where the distances are further than originally
thought. Each VisionDome is capable of being individually adjusted. It should only be
adjusted by suitable qualified personnel using the correct test equipment.

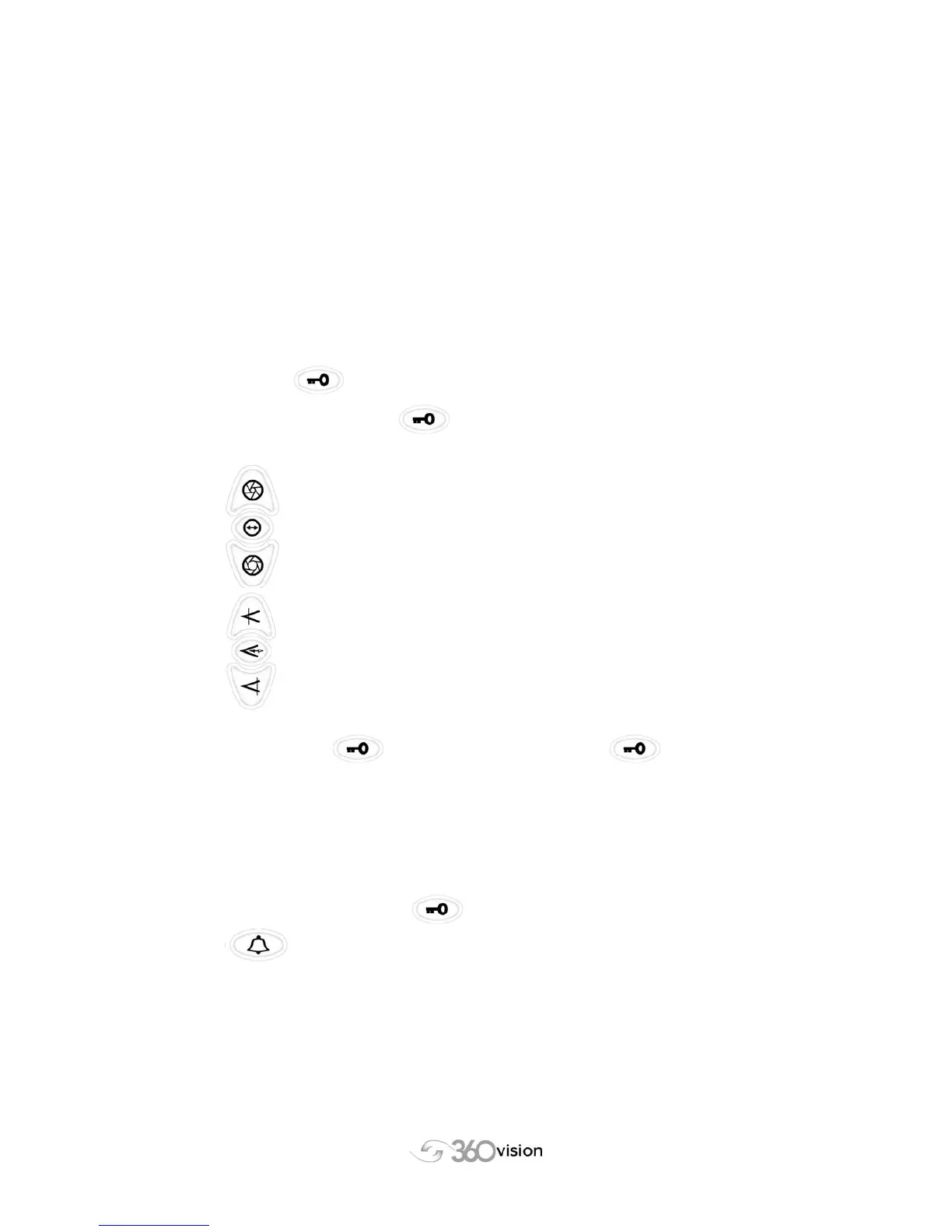

To adjust, use the VisionDome Keyboard as follows:-
Press and Hold
Press ‘5’, ‘8’, ‘5’, ‘8’ and release
Auto iris and Auto Focus lights will now be flashing
Press to increase Gain
Press to restore to Default setting
Press to decrease Gain
Press to increase Lift
Press to restore to Default setting
Press to decrease Lift
To end, press and hold press ‘5’,’8’,’5’,’8’ and release
19.
Remote Reset of VisionDome
Each VisionDome can also be remotely reset from the VisionKeyboard.
To remotely reset, press and hold press ‘5’,’8’,’5’,’8’ and
Press The VisionDome will then power down, re-power up
And perform an initialisation routine. No settings will be lost on the Dome such as Presets or
Tours.
