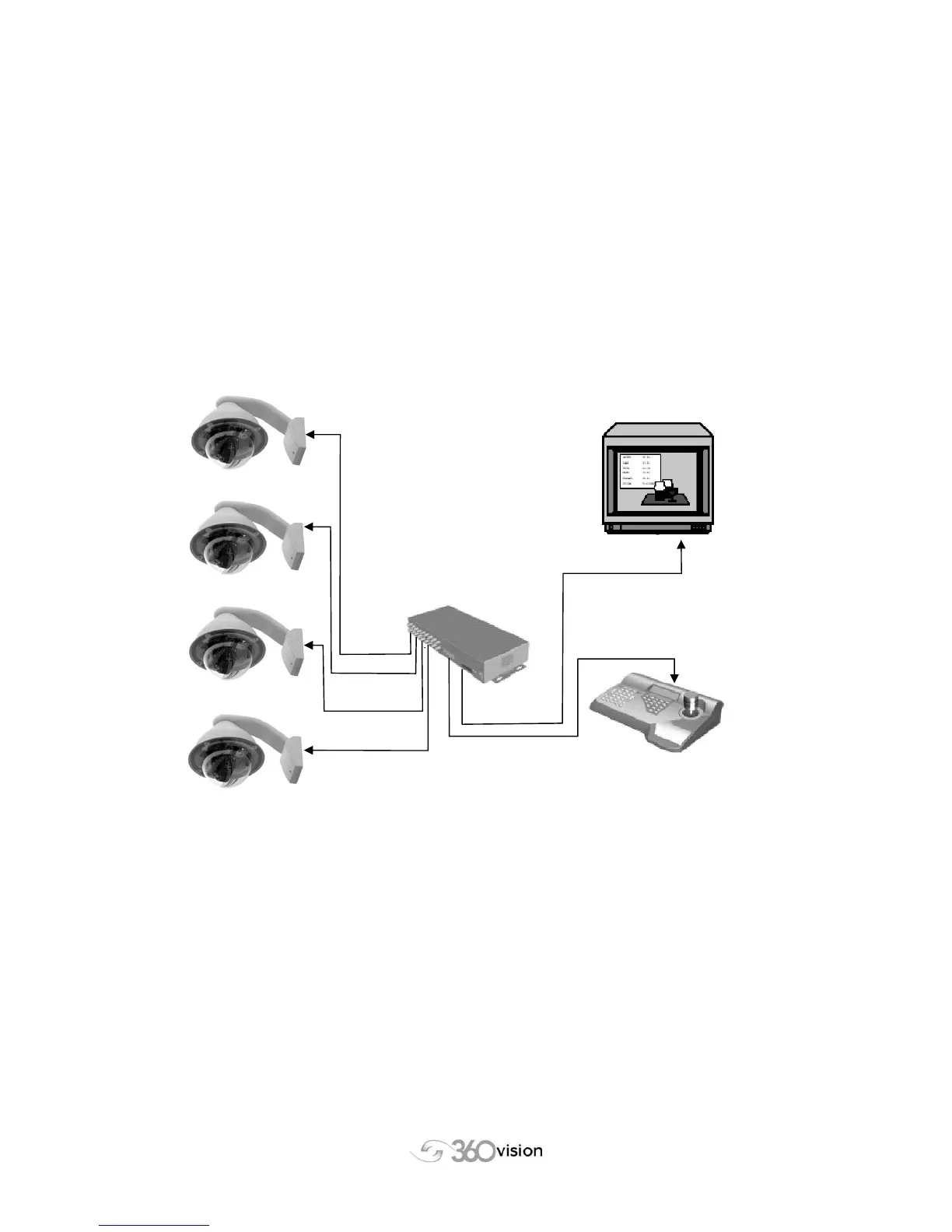

6. Coax Telemetry Settings & Control
VisionDome can also be controlled also using ‘up the coax’ control signals from either a
VisionMatrix or a 3
rd
party controller capable of sending 360-Vision Coax Protocols.
No setup is necessary as all signals are sent direct to the camera associated with the
command, therefore negating the need to set an individual camera ID
Particular attention should be paid to the quality and strength of the Video Signal as any
discrepancies or degradation can lead to control signal issues.
360 Vision products can be mixed and matched in a single installation provided a
VisionMatrix is utilised
